Description

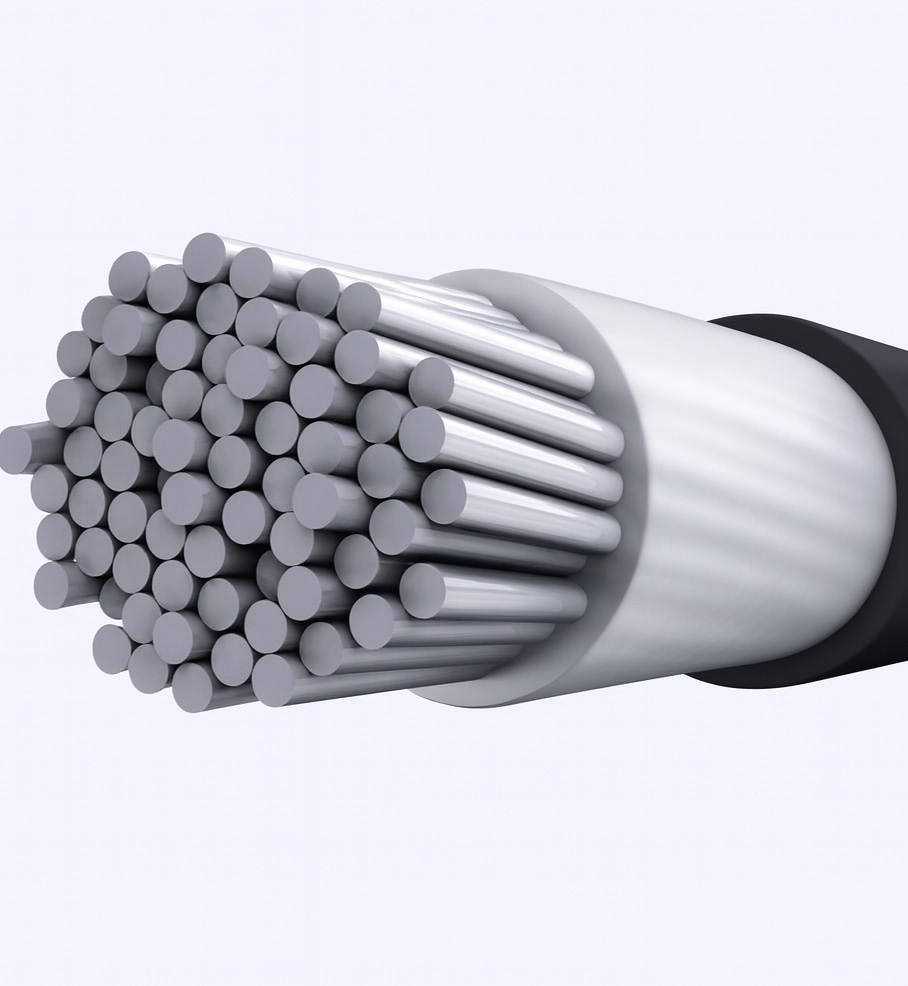

The PowerCo 6mm² TC PV cable is a tinned-copper photovoltaic cable for high-conductivity solar DC runs. Sold per metre (PDF price is per metre).
- Cable size 6.0mm² | conductor material: tinned copper
- Insulation: XLPE 0.70mm | sheath: XLPE 0.80mm | outer diameter 6.3±0.3mm
- Rated voltage DC 1500V | rated temperature 90°C
- Max. conductor resistance 3.39Ω/km | dielectric withstand AC 6.5kV / 5min
- Reference standard H1Z2Z2-K / IEC 62930
- Tests: cold bend, flame (IEC60332-1-2), damp heat, sunlight resistance, acid/alkali, smoke density, halogen acid release

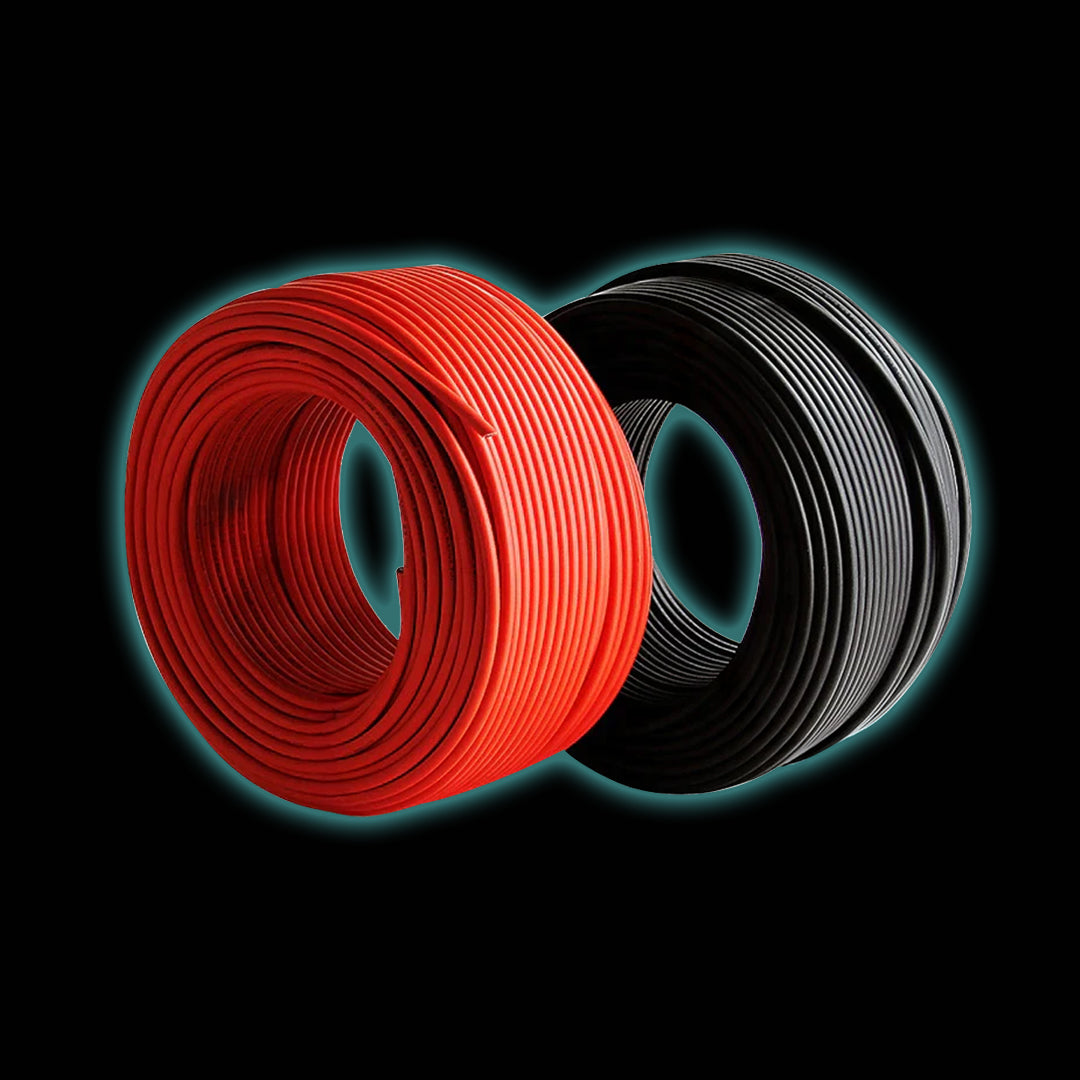

Colour (red/black) subject to stock — confirm when ordering. This product must be installed by a qualified electrician.
