Description

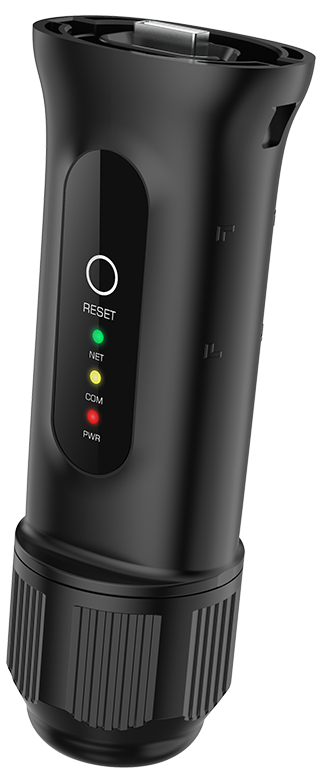

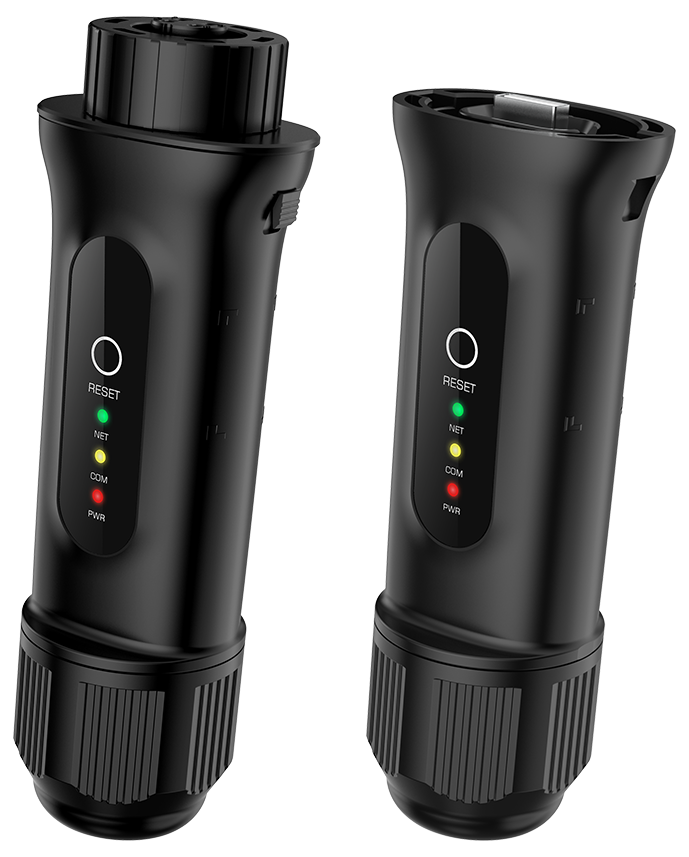

The Solis Data Logging Stick – Wi-Fi & LAN (USB) (SOL-S2-WL-ST-USB) is an official Solis monitoring dongle for compatible Solis inverters, providing Wi-Fi and LAN connectivity to SolisCloud.
- Supports Wi-Fi or LAN communication to SolisCloud
- USB interface variant — distinct from the 4-pin COM stick (SOL-S2-WL-ST)
- Plug and play — convenient commissioning
- Fault alarm and real-time monitoring workflows where supported
- LED status indicators for Power, Network, and Inverter Communication (family feature)
- Reset / one-key data send for convenient debugging (family feature)
- Wi-Fi and LAN (10/100Mbps) data logger, USB port, connects up to 10 Solis inverters
- 802.11b/g/n 2.4GHz Wi-Fi; Bluetooth BLE4.2 for setup via app / web
- 5-minute data interval; DC 5V, 2W; IP65; −30 to +65°C
- 130 × 50 × 41mm; 90g
- Check inverter USB vs COM port type before ordering
- Indoor/protected installation recommended for the stick/antenna
- Pair with Solis App / SolisCloud account
- Useful where Ethernet backhaul is preferred over Wi-Fi only
- Do not confuse with S1 USB firmware upgrade tools
- Qualified installer recommended for network commissioning
- Keep SKU separate from 4-pin stick already listed in store
- Must be installed/commissioned per Solis stick manual
Official Product Page: https://www.solisinverters.com/
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
