Description

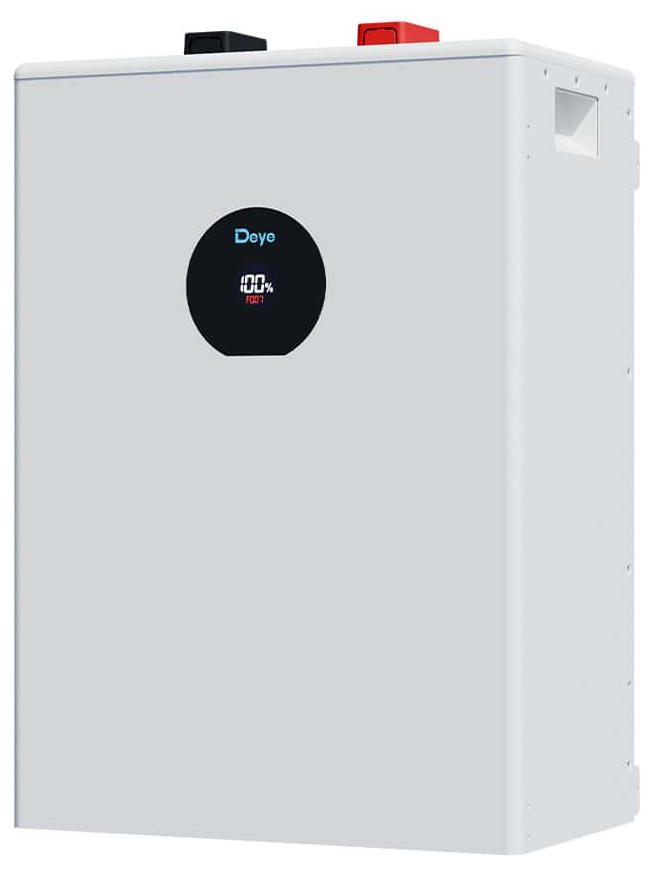

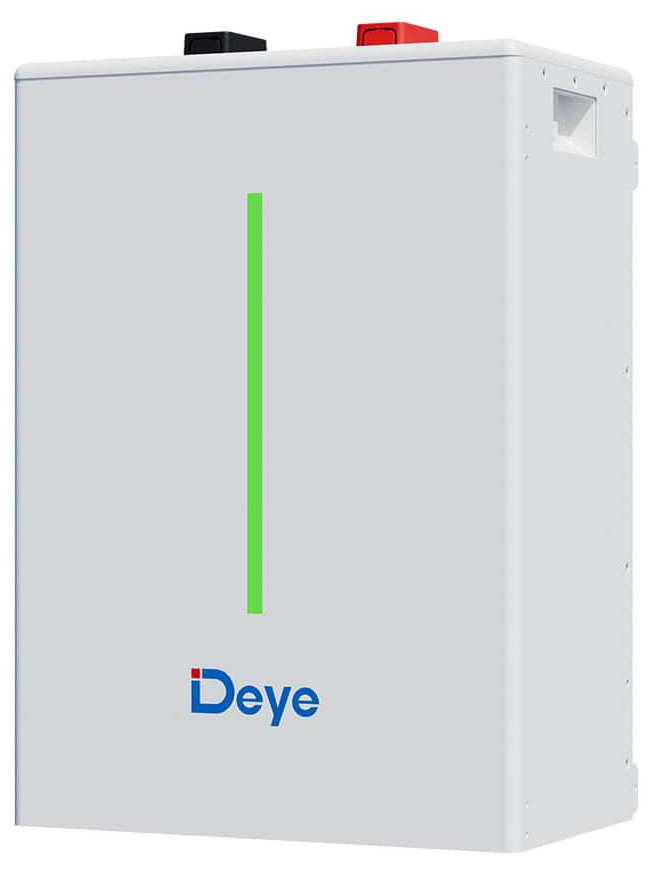

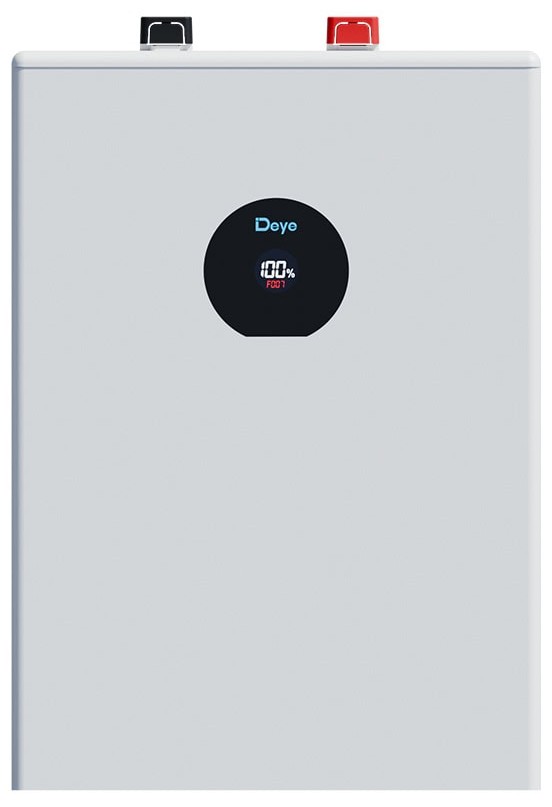

The Deye SE-F12 Plus is an 11.8 kWh 51.2V LV LiFePO4 wall-mount battery from the SE-F series, designed for residential solar storage systems in South Africa.
- LiFePO4 chemistry | Nominal 51.2 V | Capacity class 230 Ah
- Nominal energy 11.8 kWh | Recommend DoD ~90% (see Deye warranty letter)
- Charge/discharge performance per datasheet (1C/1C class)
- IP20 enclosure | indoor installation only
- CAN 2.0 / RS485 / Bluetooth+APP communication
- Parallel expansion supported (up to cluster limits in Deye brochure)
- LED SOC / RUN / ALM indicators | Auto-networking
- Dimensions (W×H×D, without hanging board): 400 × 583 × 233 mm
-
Warranty: 10 years
- Compatible with Deye LV hybrids and many 48V hybrid inverters via BMS
- Active BMS protection and fuse architecture per Deye brochure
- Wall / floor / stack mounting options depending on model kit
- Ideal SA residential backup and self-consumption storage
- Cycle life ≥6000 under stated test conditions (cell maker / Deye brochure)
- Must be installed by a qualified electrician to local standards
- Pair with correctly sized LV hybrid inverter and cabling
Official Datasheet: Deye SE-F series brochure / datasheet
Official Product Page: https://www.deyeinverter.com/
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
