Description

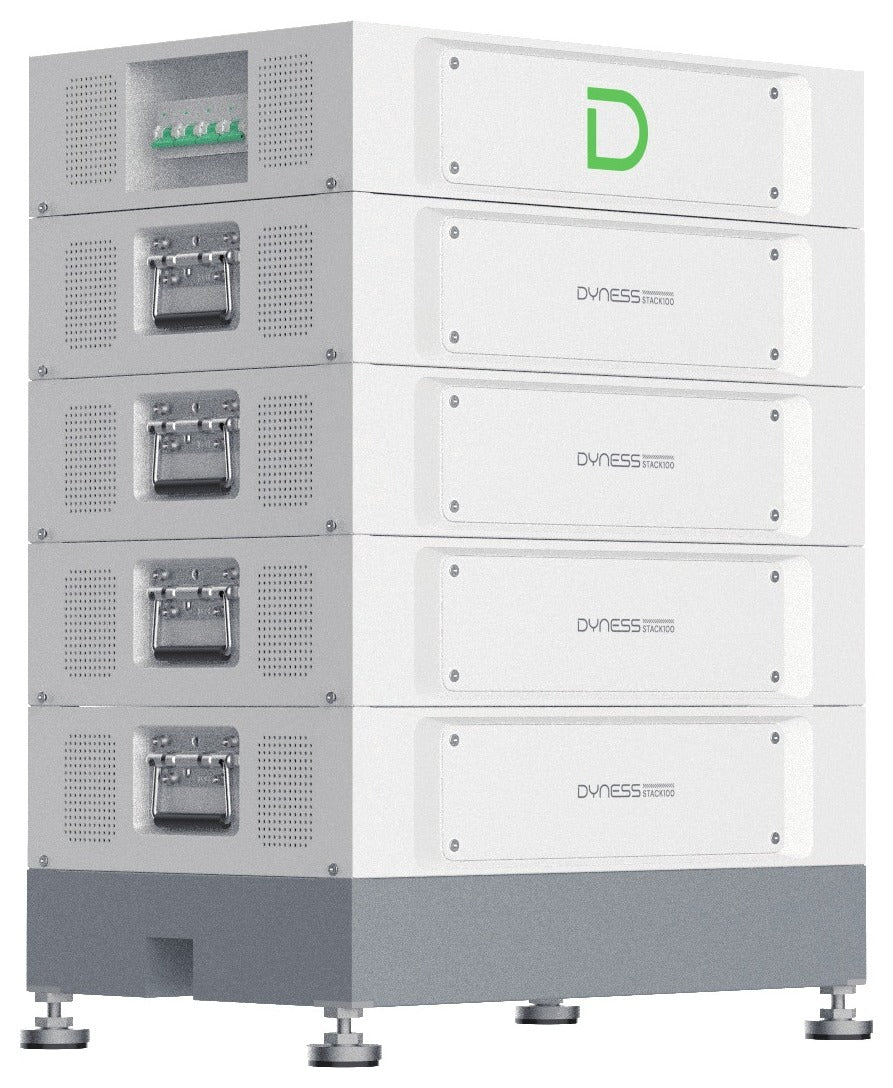

The Dyness STACK100 is a 5.12kWh cable-free stackable high-voltage battery module for homes and small businesses: 3 to 15 modules per cluster (15.36-76.8kWh) with a STACK100 BDU.
- Module: 51.2V, 100Ah, 5.12kWh (4.864kWh usable) LiFePO4
- Cluster: 3-15 modules, 134.4-864V, 15.36-76.8kWh | up to 12 clusters in parallel
- Recommended 0.5C (50A), max 1C (100A) | peak 125A for 2 min | DoD 95%
- ≥8000 cycles | built-in aerosol fire extinguisher | forced air cooling | WiFi + app
- CAN / RS485 | compatible with Solis, Deye, GoodWe, Growatt, Sungrow and more
- Requires the STACK100 BDU & base (sold separately)
- IP20, indoor installation only | 590 x 390 x 133mm | 47kg
Official Datasheet: Dyness STACK100 Datasheet
Official Product Page: Dyness STACK100
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
