Description
The Hinen 12kW Backup Kit combines the Hinen H12000S 12kW single-phase hybrid inverter with a Knyee ES-LV-16 16.08kWh LiFePO4 battery with built-in aerosol fire suppression, for larger South African homes and small businesses.

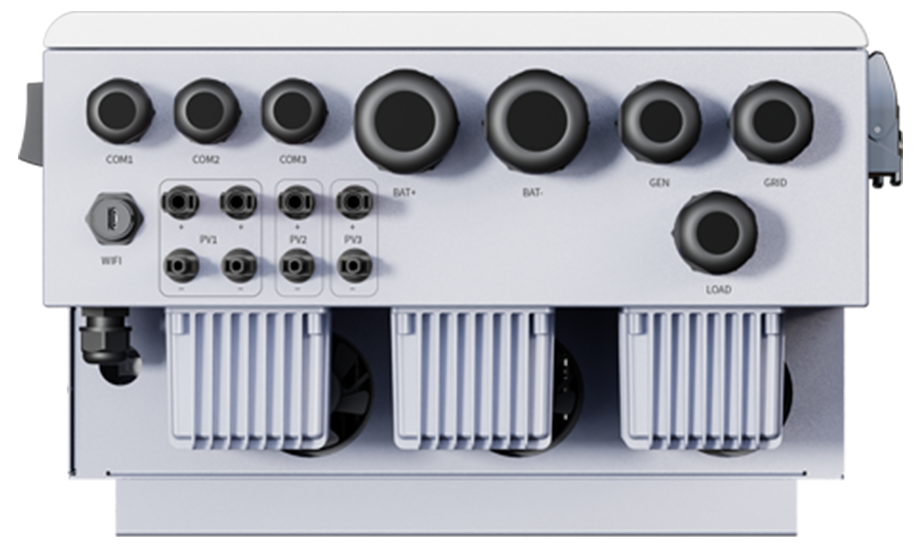

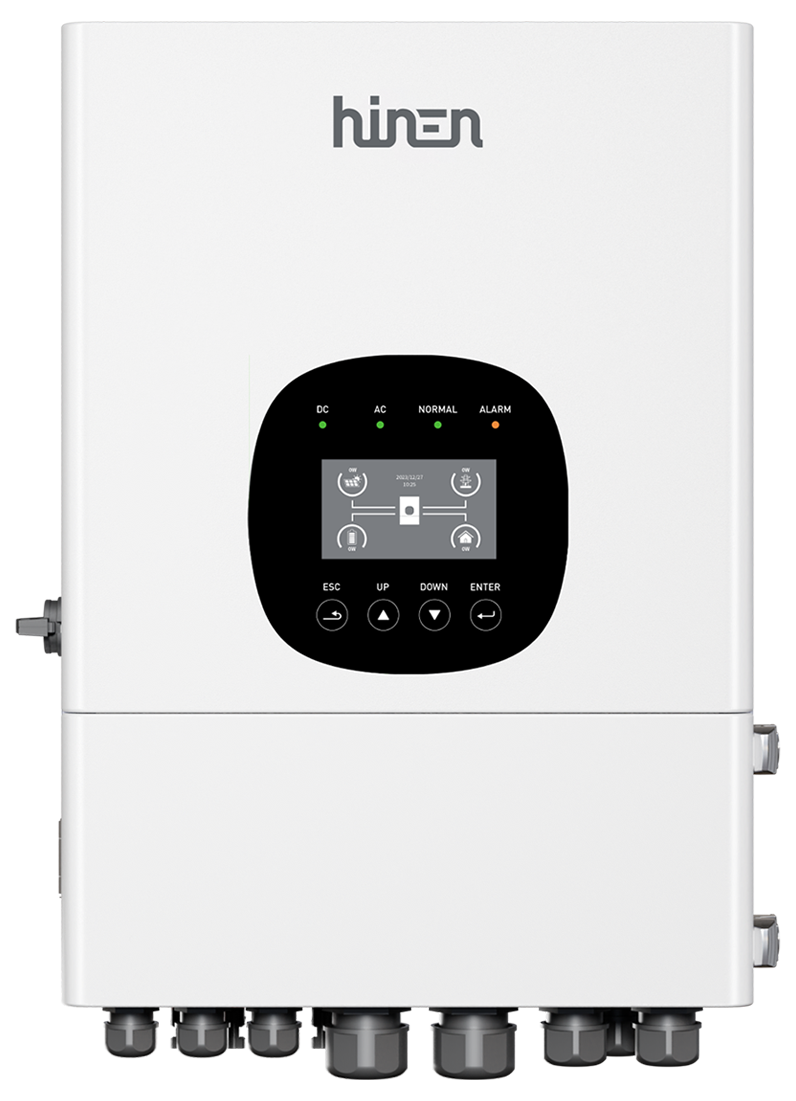

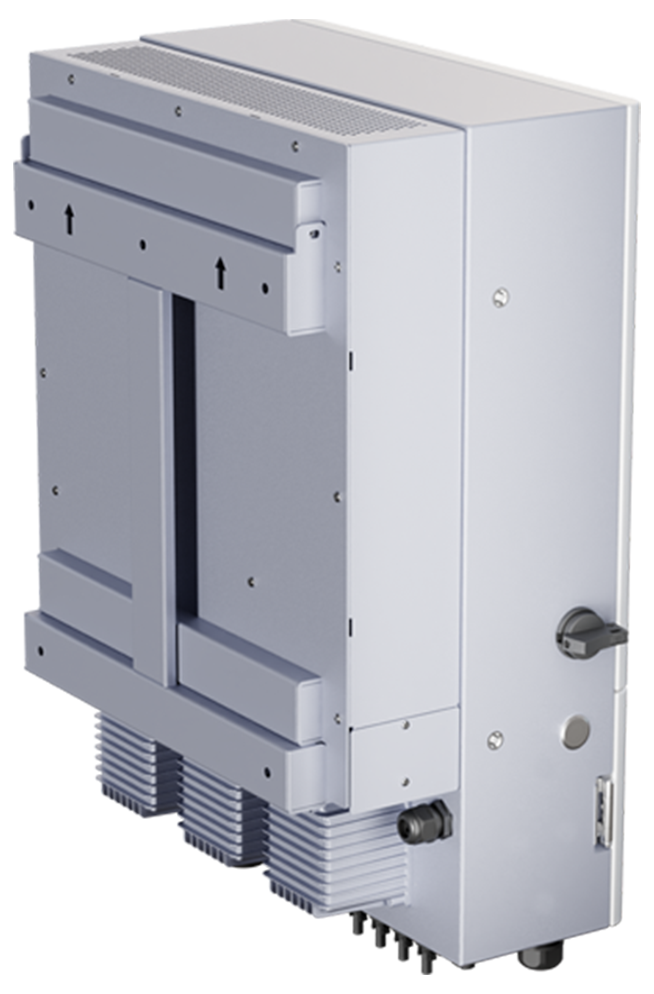

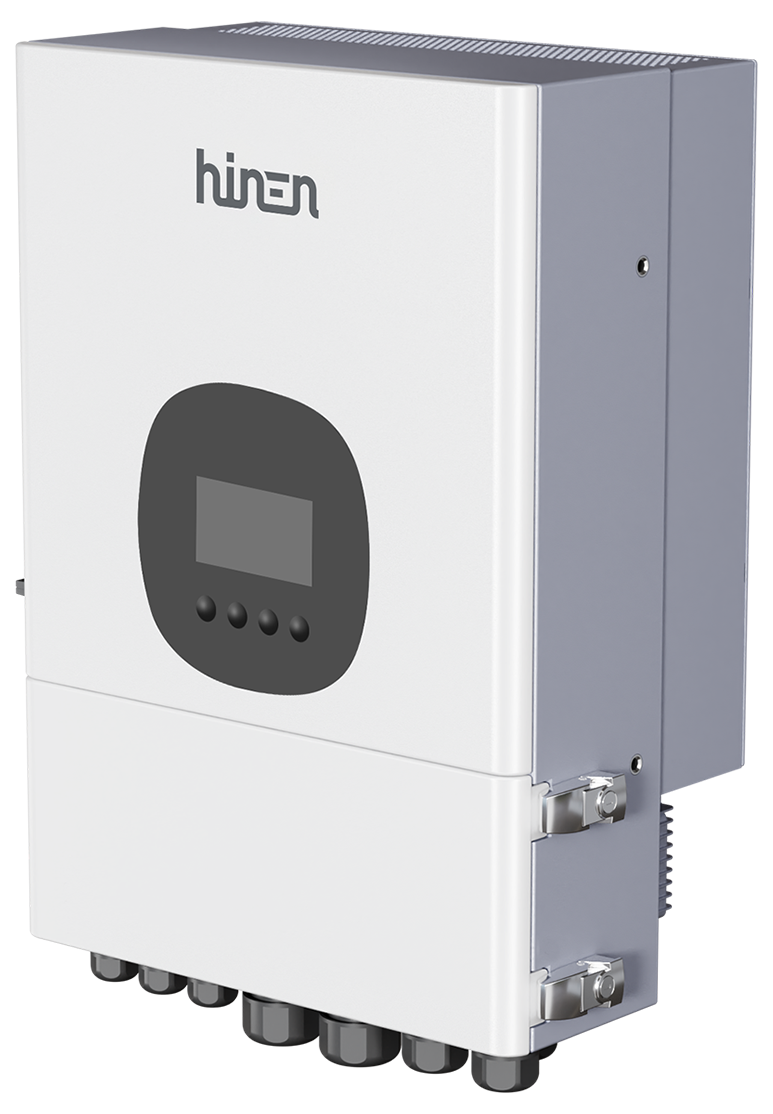

- Hinen H12000S 12kW single-phase LV hybrid inverter: 12,000W rated output/backup | recommended max PV 18,000W (150%)
- 3 MPPT (2+1+1 strings), PV 100-425V MPPT range, max 500V, 28/16/16A input current
- Battery 40-60V (48V nominal), max charge/discharge 240A / 12,000W | backup switch ≤10ms
- Generator port 12kW with dry-contact auto start | up to 6 units in parallel (72kW)
- Max efficiency 97.8% (EU 96.5%) | fan cooled, <50dB | IP65, suitable for indoor and outdoor installation | 39kg | NRS 097-2-1

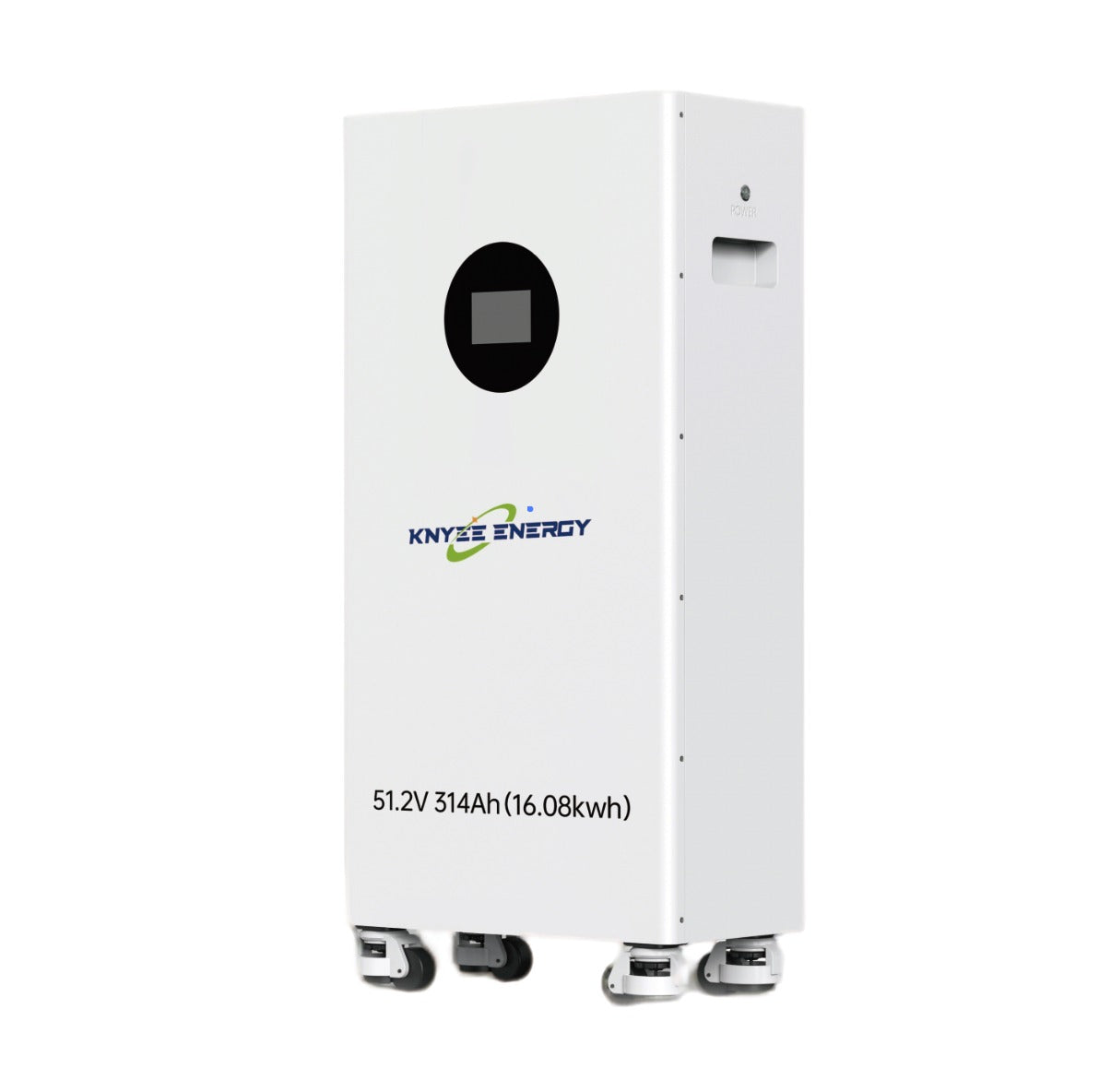

- Knyee ES-LV-16 floor-standing battery: 51.2V DC, 314Ah, 16.08kWh, LiFePO4, 8000 cycles (25°C @ 80% DoD)
- Max charge/discharge current 200A (100A recommended) | up to 32 in parallel | CAN / RS485 / RS232
- Built-in aerosol fire extinguisher | touch screen | Bluetooth + WiFi
- IP20, indoor installation only | 900 x 460 x 245mm | 115kg net
- Kit weight: 154kg (inverter 39kg + battery 115kg)
Official Datasheet: Hinen H12000S Datasheet
Official Datasheet: Knyee ES-LV-16 16.08kWh Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
