Description
The Hinen 6kW Backup Kit combines the Hinen H6000-EU 6kW single-phase hybrid inverter with a Knyee KNY-P51300 15.36kWh LiFePO4 battery, a complete backup and solar-ready energy storage package for South African homes.

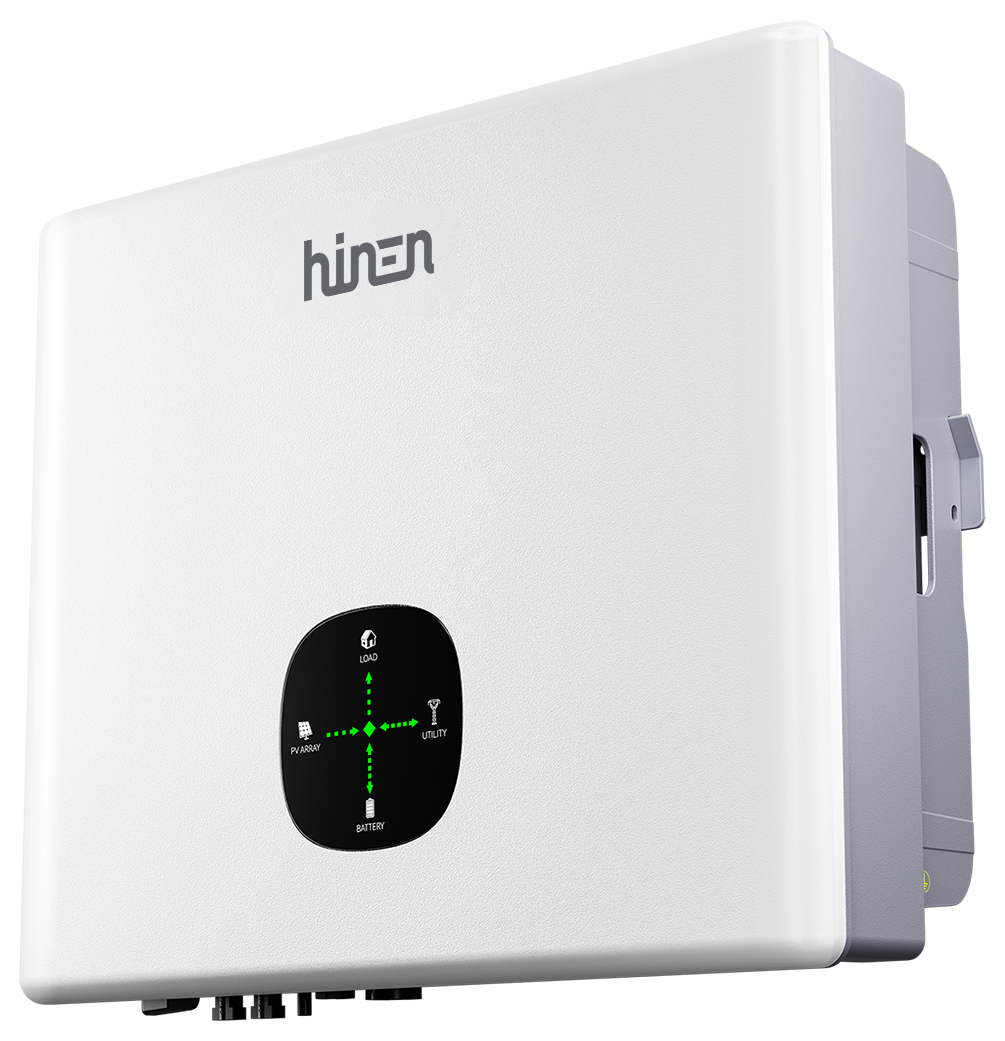

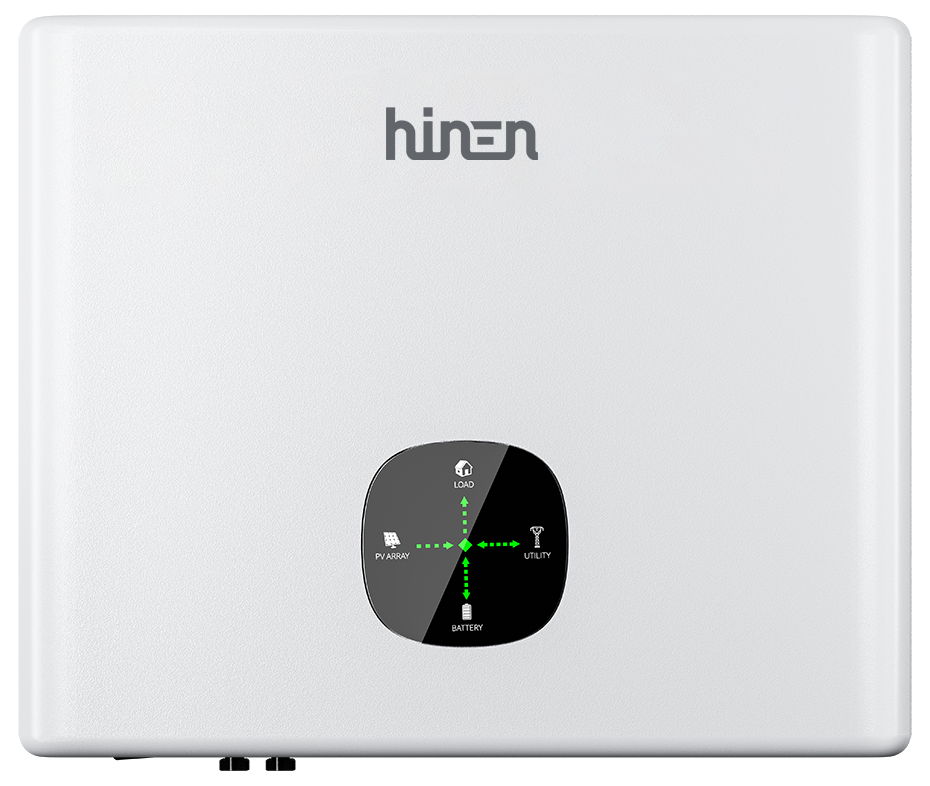

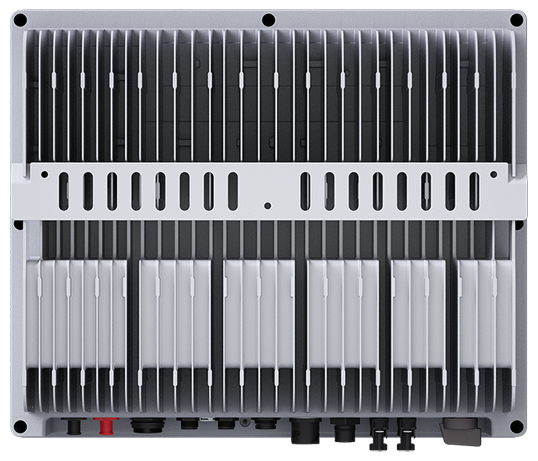

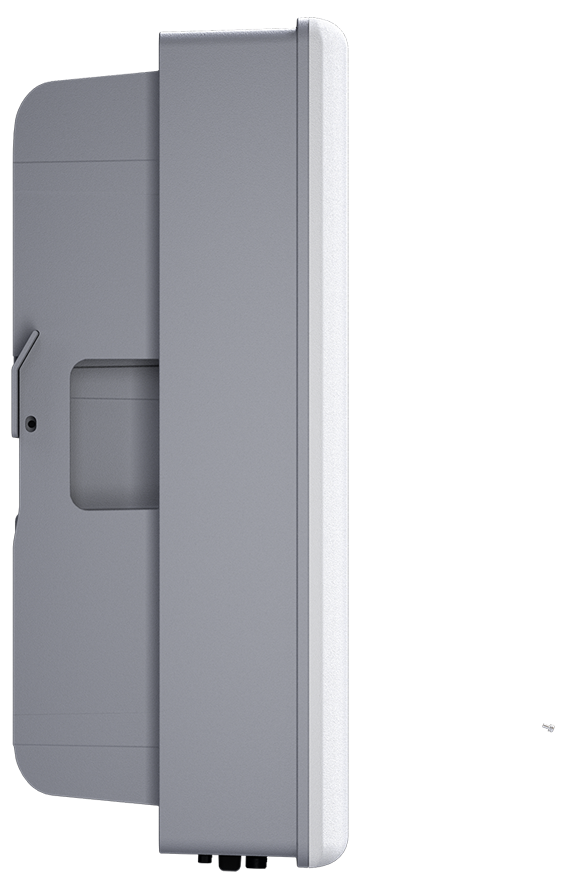

- Hinen H6000-EU 6kW single-phase LV hybrid inverter: 6000W rated output/backup | max PV input 11,400W (190%)
- 2 MPPT, 16A per MPPT, PV voltage range 90-550V (MPPT 200-480V full load), max 550V
- Battery 42-58V (LiFePO4 or lead-acid), max charge/discharge 120A / 6000W | backup switch ≤20ms
- Max efficiency 97.2% | fanless, noise ≤25dB | IP65, suitable for indoor and outdoor installation | 29.6kg

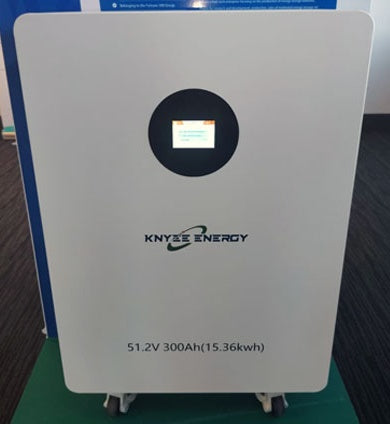

- Knyee KNY-P51300 floor-standing battery: 51.2V DC nominal, 300Ah, 15.36kWh rated capacity, LiFePO4 cells
- Voltage range 44-58.4V | Max charge/discharge current 200A (100A recommended)
- Cycle life 6000 cycles @ 80% DoD | CAN / RS485 / RS232 | up to 32 modules in parallel
- IP65 sheet-metal enclosure, suitable for indoor and outdoor installation | 800 x 580 x 255mm | 130kg net
- Kit weight: 159.6kg (inverter 29.6kg + battery 130kg)
- Add PV panels and mounting to turn the kit into a full solar system
Official Datasheet: Hinen H6000-EU Datasheet
Official Datasheet: Knyee KNY51300 15.36kWh Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
