Description

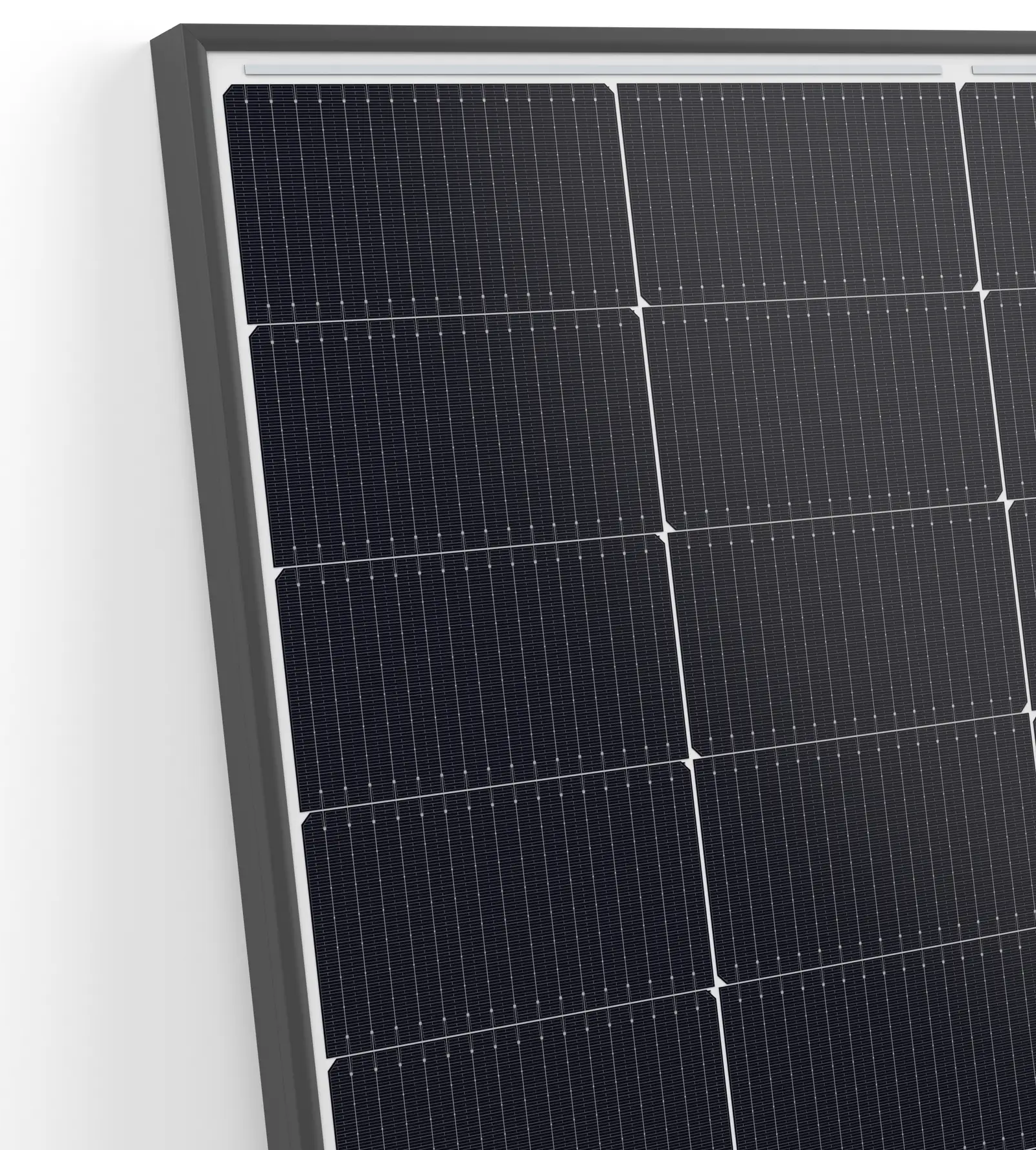

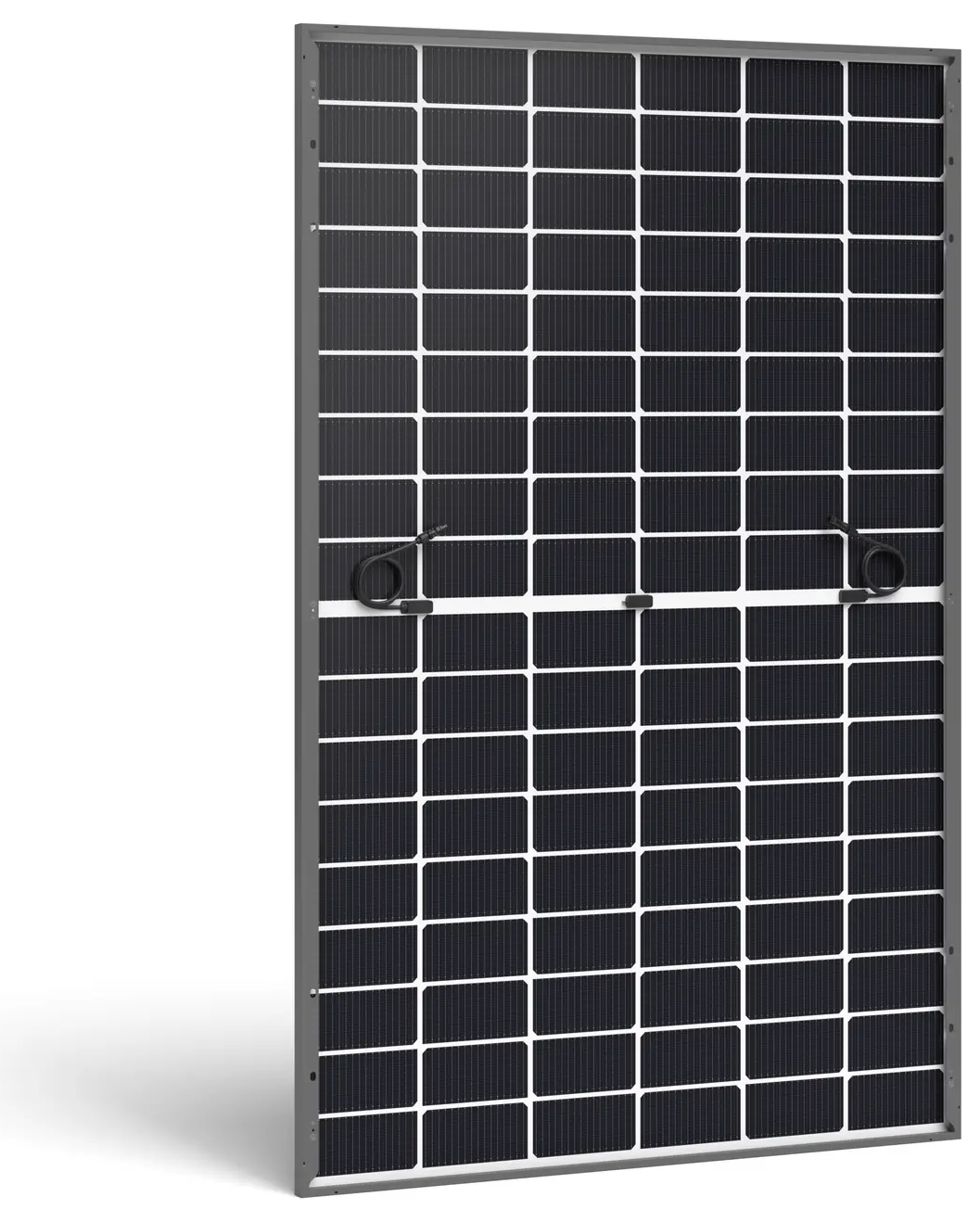

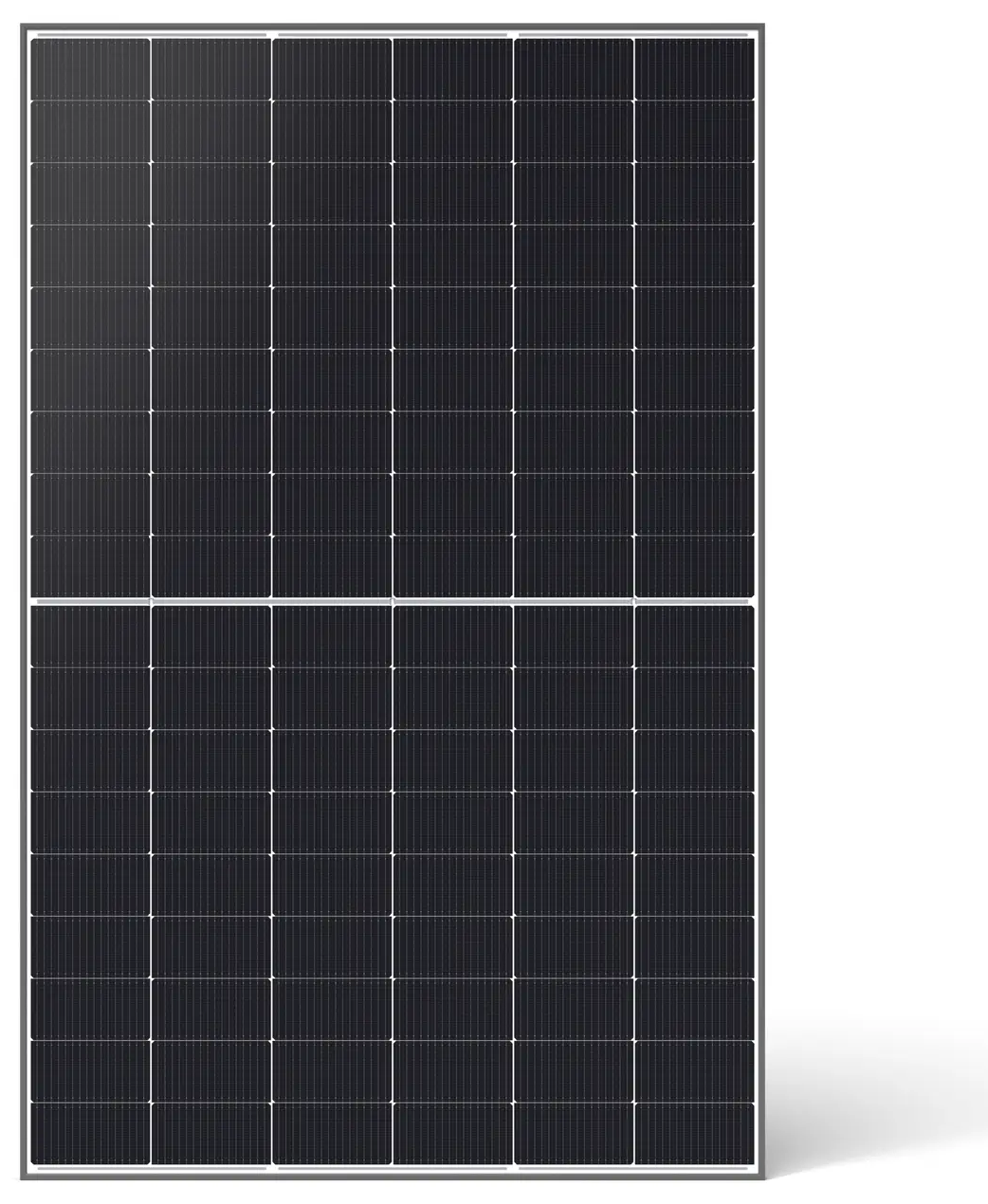

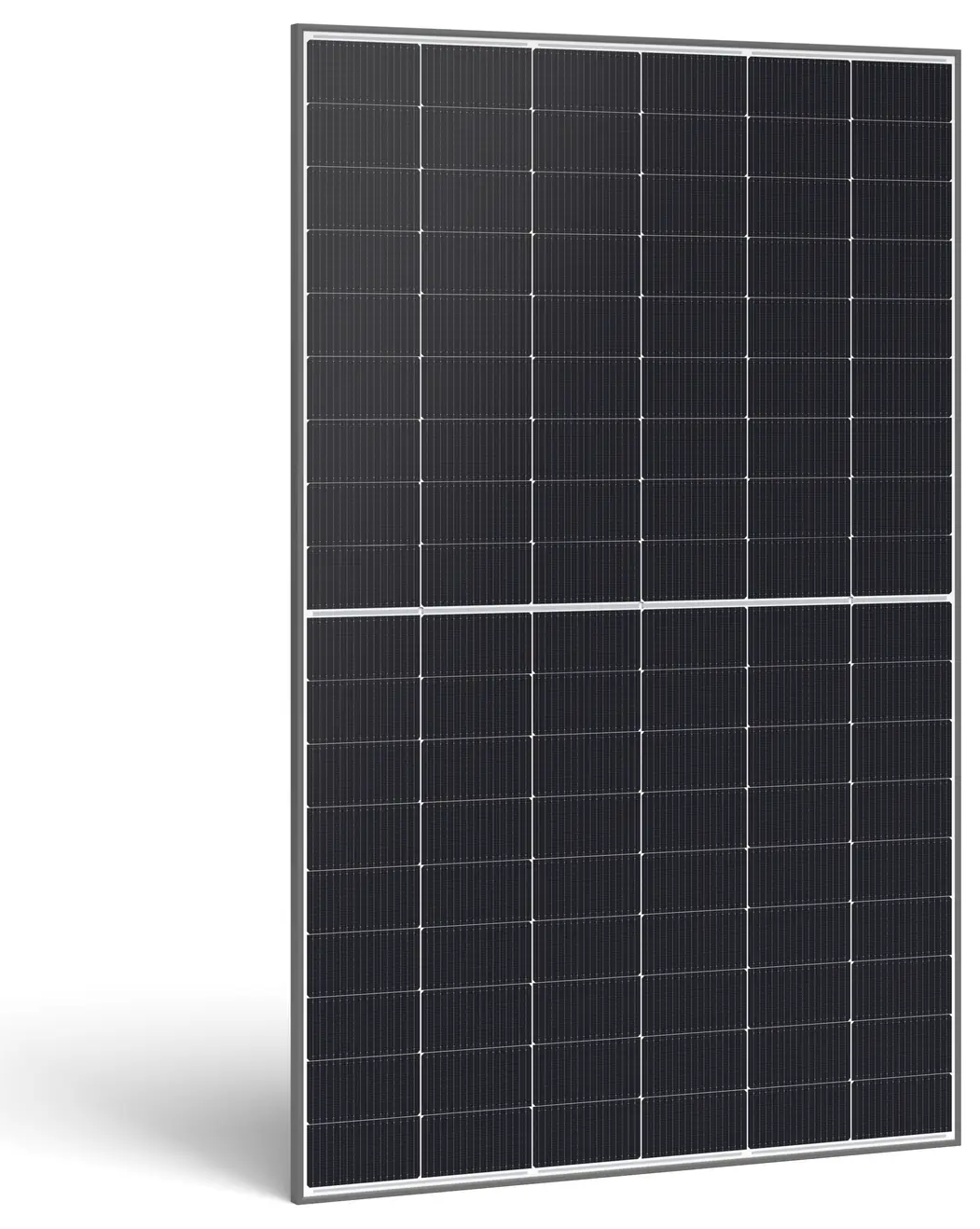

The JA Solar JAM54D40-460/LB is a 460W n-type DeepBlue 4.0 bifacial double-glass module with a black frame, from the JA Solar JAM54D40 LB series (435–460W).
Key specifications
- Rated power (Pmax) 460W; power tolerance 0~+3%; module efficiency 23.0%
- Voc 39.70V | Isc 14.64A | Vmp 33.17V | Imp 13.87A (STC)
- 108 n-type mono half-cells (6 × 18), Bycium+ MBB | Bifaciality 80 ± 10%
- 1.6mm / 1.6mm front/back glass | Black frame
- Temperature coefficients: Pmax -0.290%/°C | Voc -0.250%/°C | Isc +0.045%/°C
- Max. system voltage 1500V DC | Max. series fuse 30A | IP68 protection, suitable for indoor and outdoor installation junction box, 3 diodes
- Max. static load 5400Pa front / 2400Pa back
- 1762 × 1134 × 30mm | 22kg
Warranty: 12-year product, 30-year linear power output.
Official source: Official datasheet (JA Solar)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
