Description

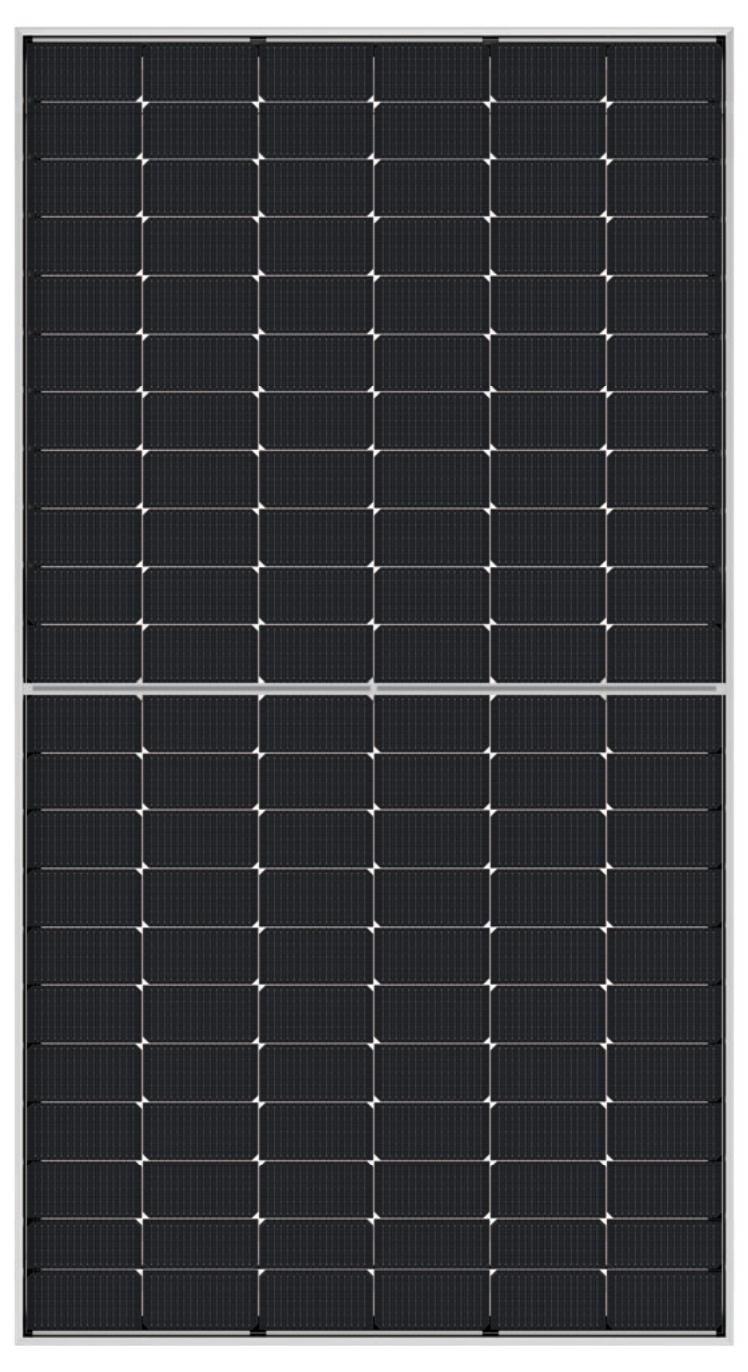

The Jinko JKM620N-66HL4M-BDV is a 620W Tiger Neo n-type bifacial dual-glass solar module from JinkoSolar's 66HL4M-BDV series (605–630W), designed for residential and commercial solar systems in South Africa.
- Maximum power (Pmax) 620Wp | Power tolerance 0 to +3% | Module efficiency 22.95% (STC)
- STC: Vmp 40.74V | Imp 15.22A | Voc 49.08V | Isc 16.08A
- BNPI (front 1000W/m², rear 135W/m²): Vmp 40.75V | Imp 16.81A | Voc 49.06V | Isc 17.77A
- N-type mono-crystalline cells | 132 cells (66 × 2), half-cell
- Bifaciality: φPmax 80±5% | φIsc 80±5% | φVoc 98±5%
- Temperature coefficients: Pmax -0.29%/°C | Voc -0.25%/°C | Isc 0.045%/°C
- Maximum system voltage 1500VDC (IEC) | Maximum series fuse rating 35A
- Operating temperature -40°C to +70°C
- Front glass 2.0mm anti-reflection coating | Back glass 2.0mm heat-strengthened
- Anodised aluminium alloy frame | IP68 protection, suitable for indoor and outdoor installation junction box | Protection class II | Fire type Class C
- Connector JK03M/MC4/others
- Dimensions 2382 × 1134 × 30mm | Weight 32.4kg
- Certifications: IEC 61215:2021 / IEC 61730:2023 | IEC 61701 / IEC 62716 / IEC 60068 / IEC 62804
- Warranty: 12-year product | 30-year linear power (1% first-year degradation, 0.40% per year)
Official Datasheet: JinkoSolar JKM605-630N-66HL4M-BDV-F3-EN (PDF)
Official Product Page: JinkoSolar Datasheets – 605-630W N-Type 66 Half Cell Bifacial Module With Dual Glass
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
