Description
The Solis 125kW Storage Kit combines the Solis S6-EH3P125K10-NV-YD-H 125kW three-phase high-voltage hybrid inverter with a PowerCo HV-768V280Ah 215kWh battery bank, a C&I energy storage system for South African businesses.

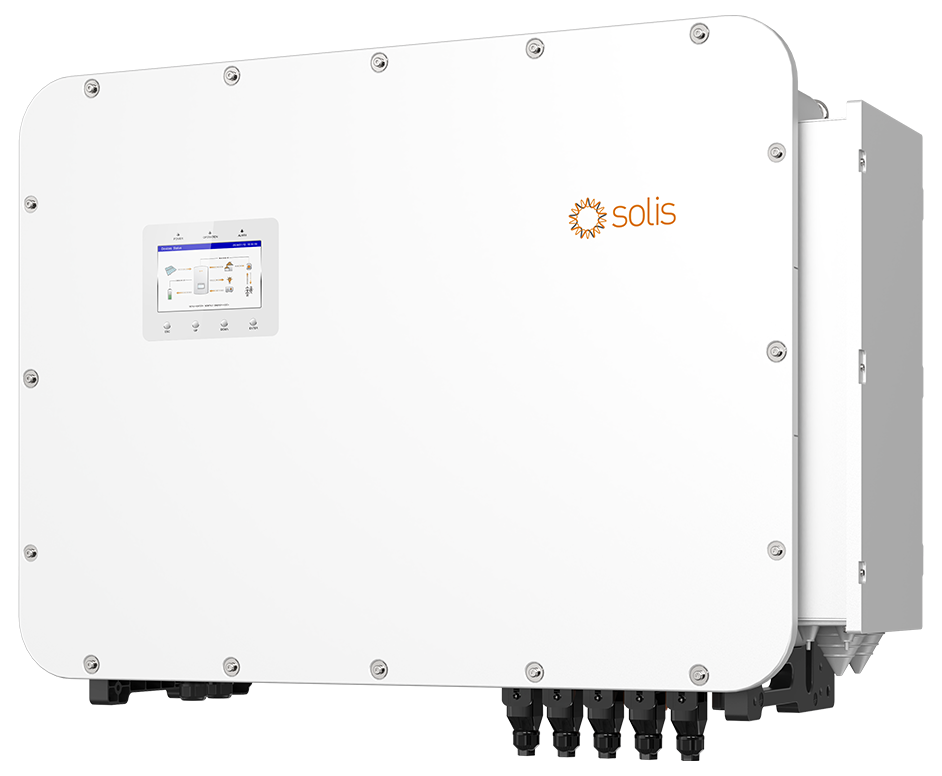

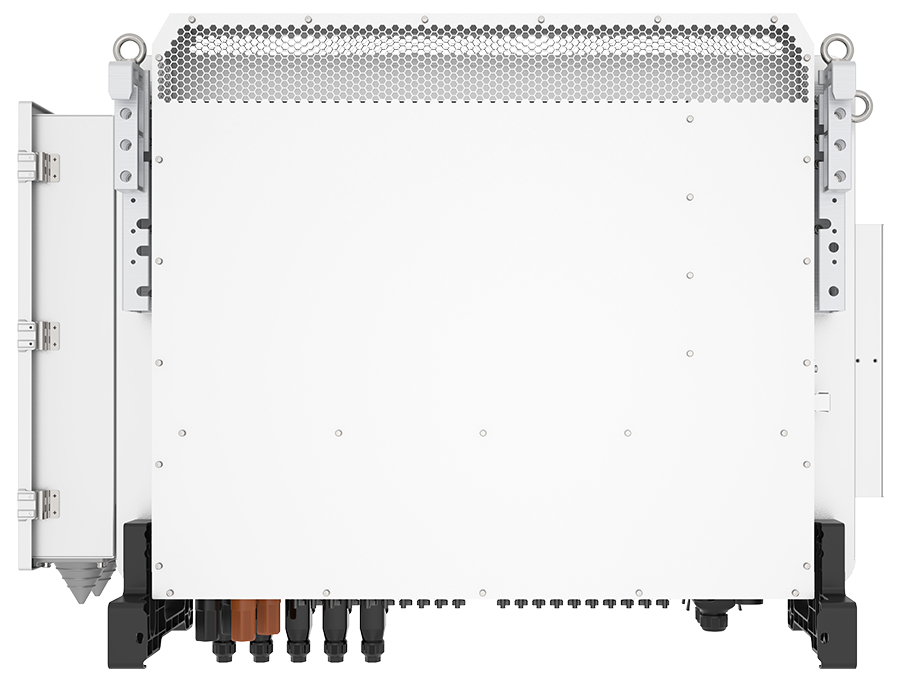

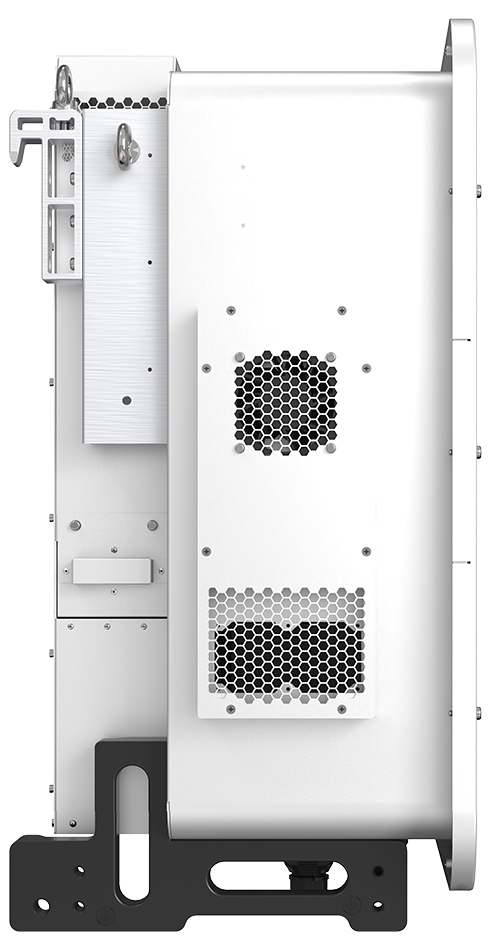

- Solis S6-EH3P125K10-NV-YD-H 125kW three-phase HV hybrid inverter: 125kW rated output | max usable PV 250kW
- 10 MPPT / 20 strings | battery 300-950V, 100A x2 | backup switch <10ms (single unit)
- Max efficiency 97.5% | WiFi+LAN+Bluetooth, CAN-BMS x2 | IP66, suitable for indoor and outdoor installation | 170kg

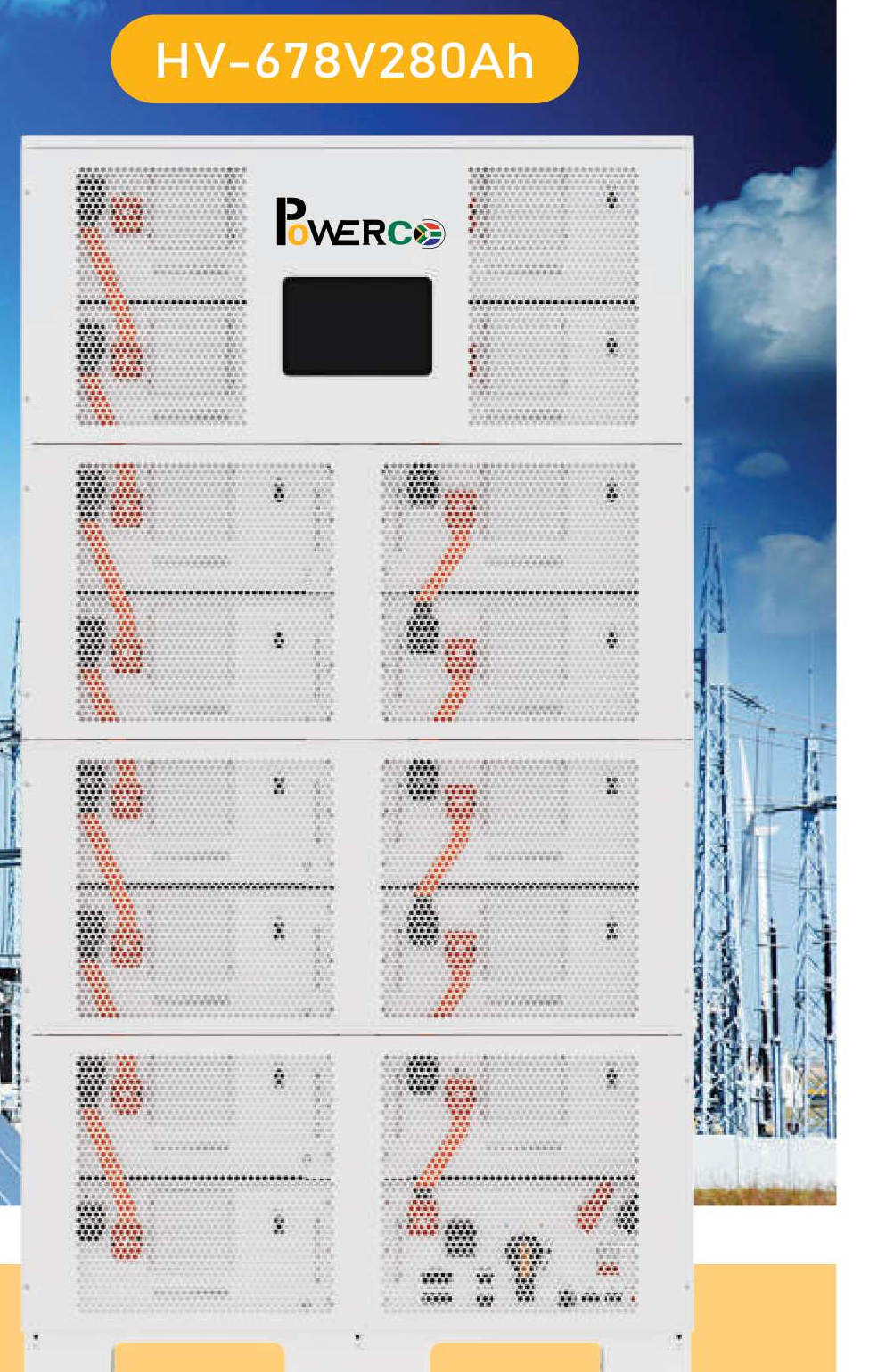

- PowerCo HV-768V280Ah battery bank: 768V, 280Ah, 215.04kWh (240S1P, 15 x 51.2V 280Ah modules)
- Rated power 107kW, max output 107kW (adjustable) | recommended DoD 90% | CAN2.0 / RS485
- Cycle life 6000 (25°C, 0.2C/0.2C, EOL 70%) | compatible with Deye, Solis, Goodwe, Megarevo and others
- IP20, indoor installation only | 1150 x 852 x 2157mm | 2.2-2.4t
- Kit weight: approx. 2.37-2.57t (inverter 170kg + battery 2.2-2.4t)
Official Datasheet: Solis S6-EH3P(80-125)K10-NV-YD-H Datasheet

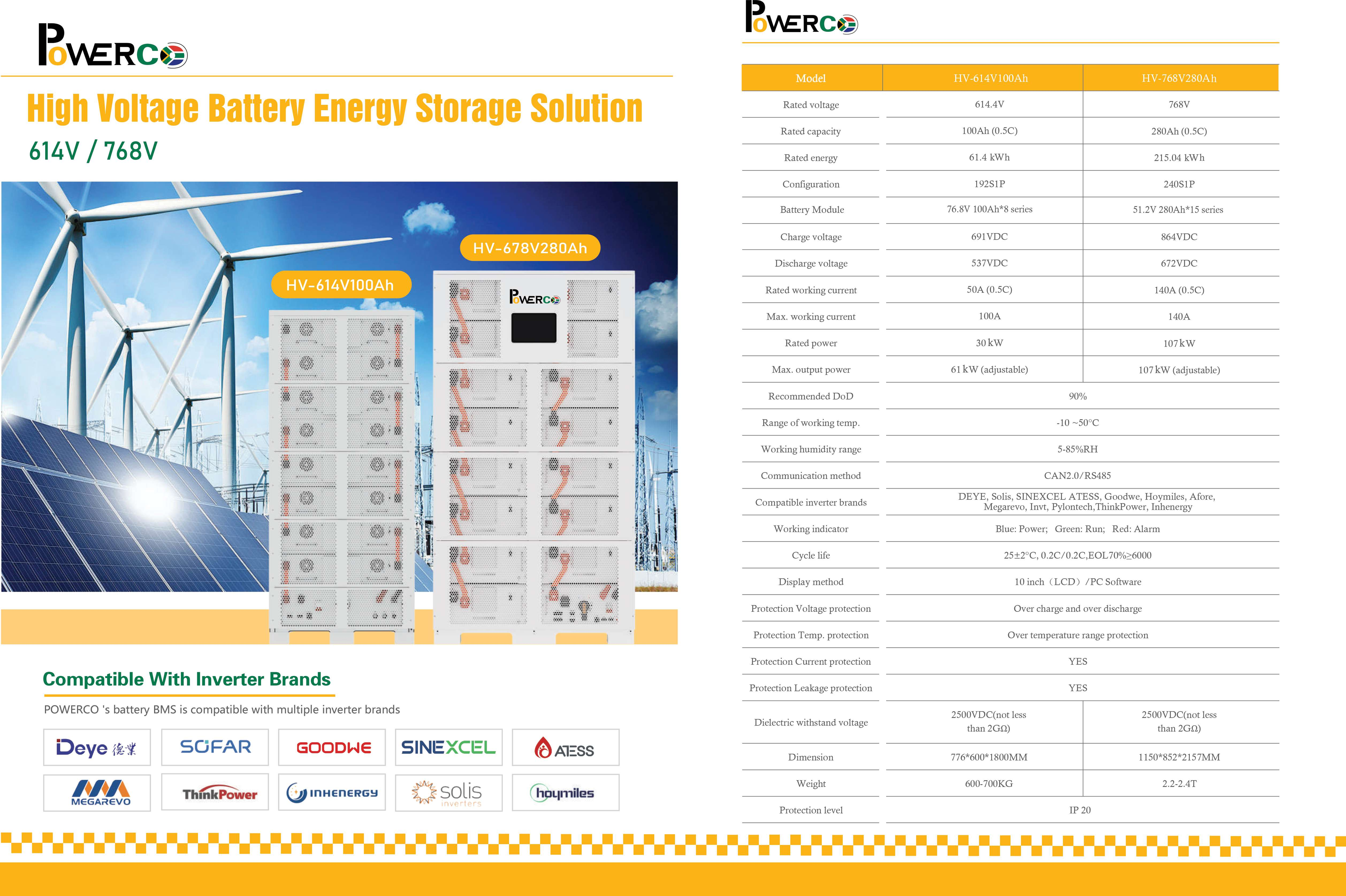

Official Datasheet: PowerCo HV-614V100Ah / HV-768V280Ah Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
