Description
The Solis 30kW Storage Kit combines the Solis S6-EH3P30K-H 30kW three-phase high-voltage hybrid inverter with a PowerCo HV-614V100Ah 61.4kWh battery bank, a commercial and large-residential storage system for South Africa.

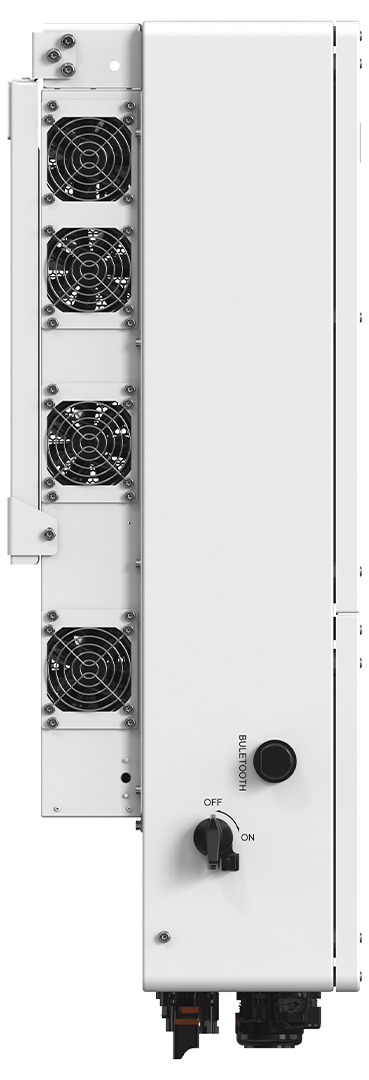

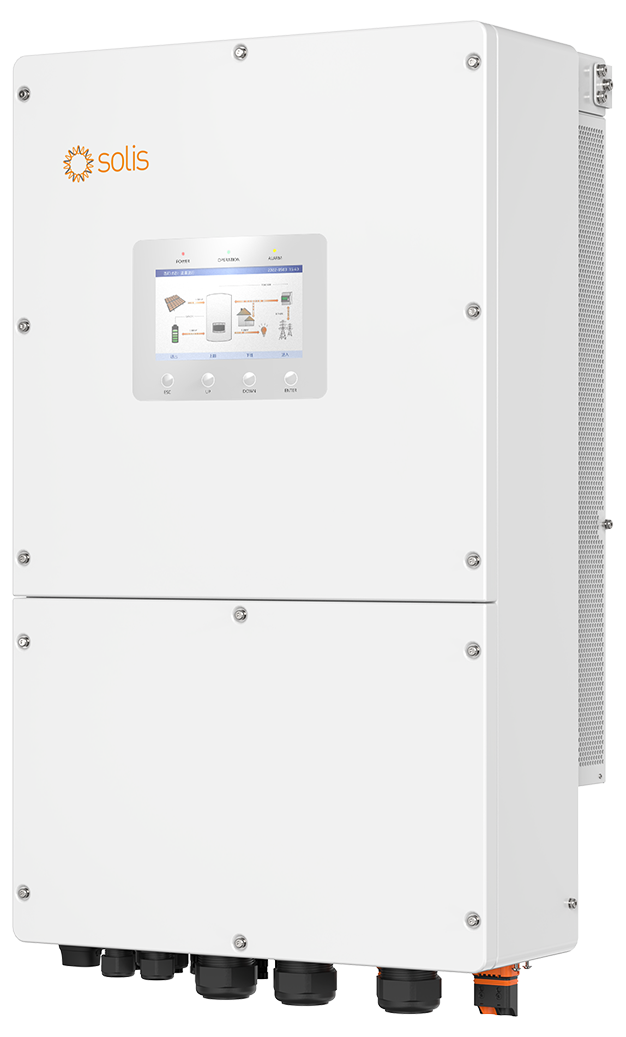

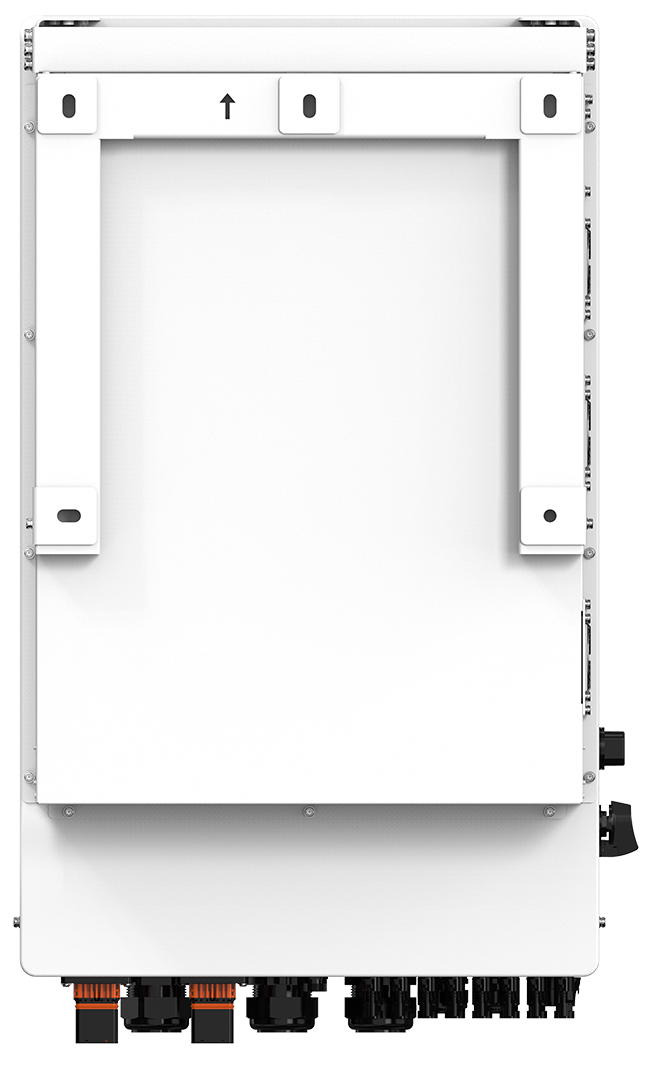

- Solis S6-EH3P30K-H 30kW three-phase HV hybrid inverter: 30kW rated output | max usable PV 60kW
- 3 MPPT / 6 strings, MPPT 150-850V | battery 150-800V, 70A x2, max charge/discharge 33kW
- Max efficiency 97.8% (EU 97.4%) | 7" LCD & Bluetooth + app | IP66, suitable for indoor and outdoor installation | 73kg

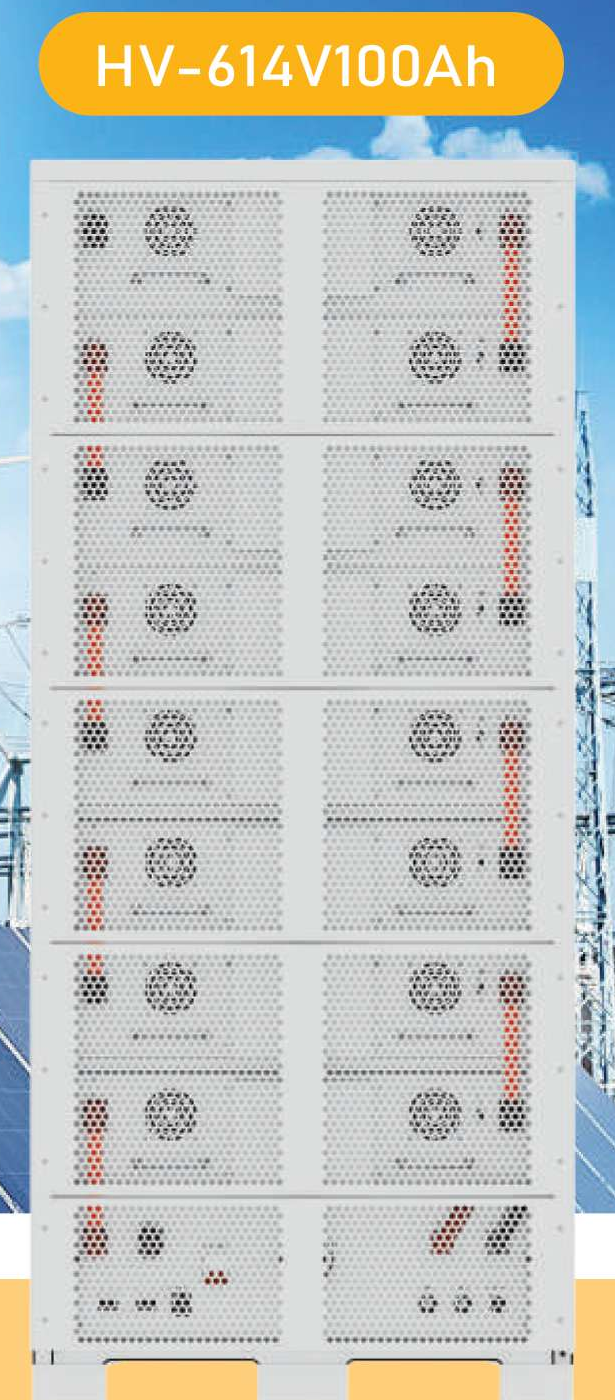

- PowerCo HV-614V100Ah battery bank: 614.4V, 100Ah, 61.4kWh (192S1P, 8 x 76.8V 100Ah modules)
- Rated power 30kW, max output 61kW (adjustable) | recommended DoD 90% | CAN2.0 / RS485
- Cycle life 6000 (25°C, 0.2C/0.2C, EOL 70%) | compatible with Deye, Solis, Goodwe, Megarevo and others
- IP20, indoor installation only | 776 x 600 x 1800mm | 600-700kg
- Kit weight: approx. 673-773kg (inverter 73kg + battery 600-700kg)
Official Datasheet: Solis S6-EH3P(30-50)K-H Datasheet

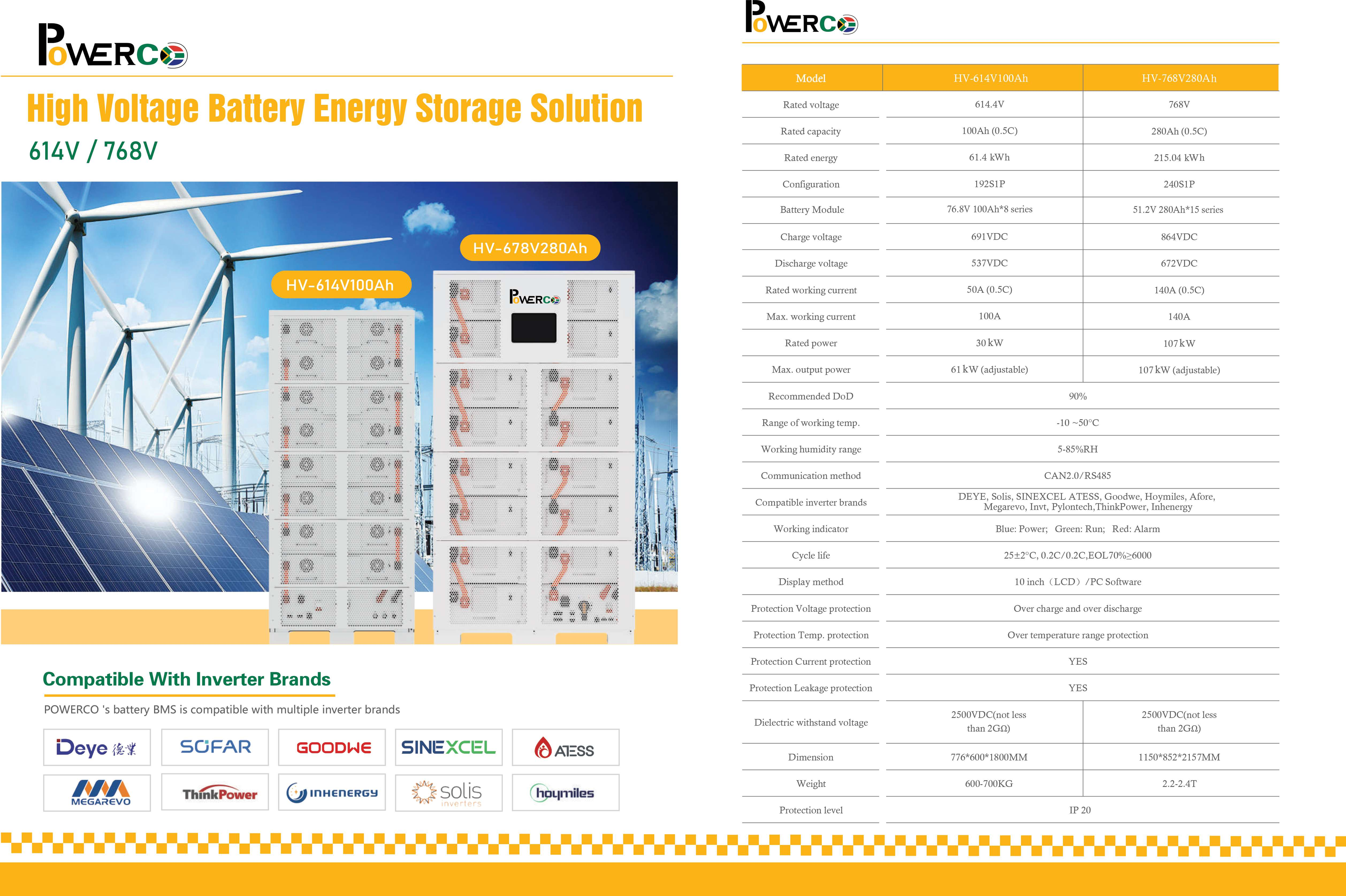

Official Datasheet: PowerCo HV-614V100Ah / HV-768V280Ah Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
