Description

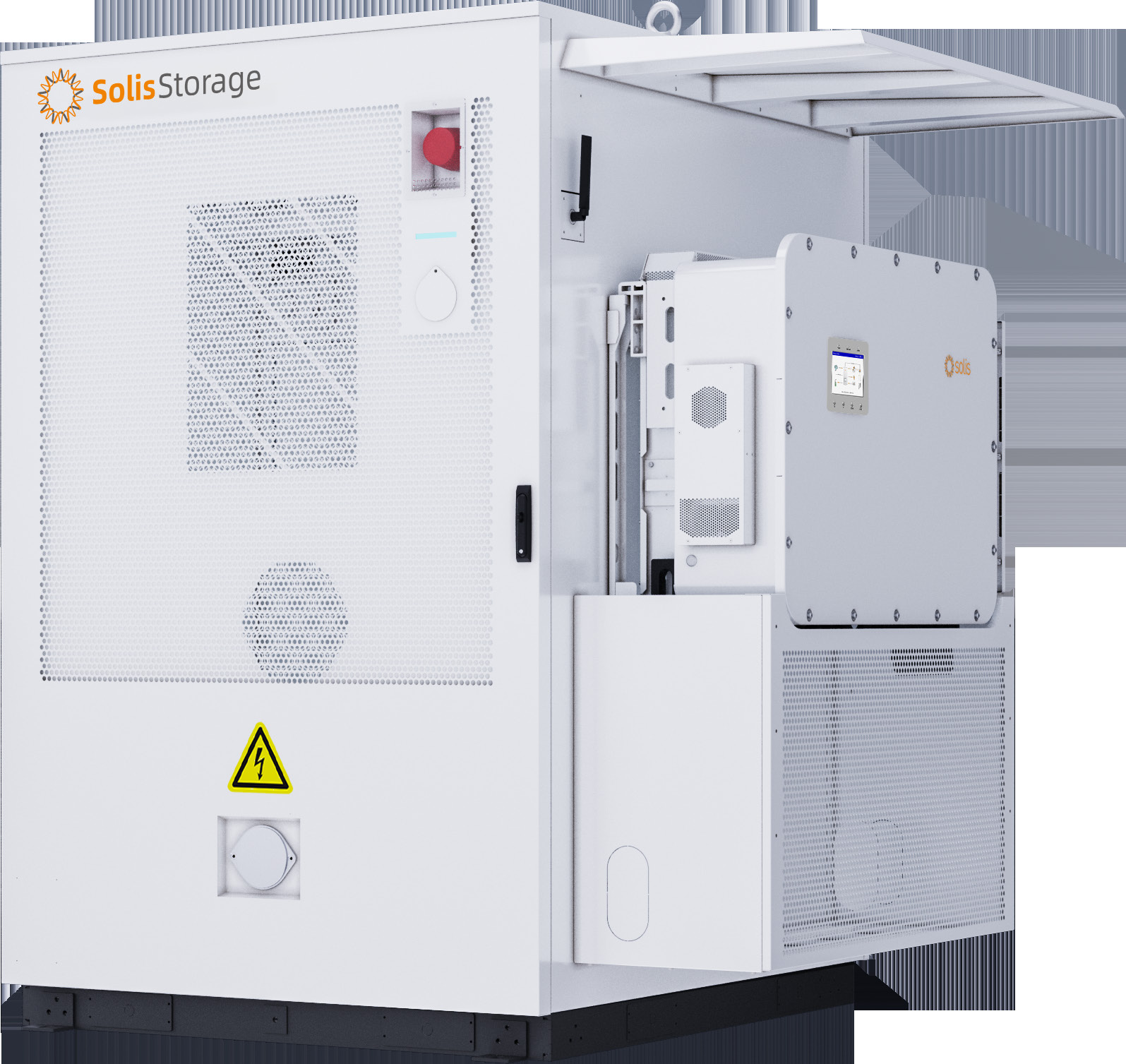

The Solis EverCore 261kWh-125kW C5 Pro is a factory-matched C&I outdoor ESS package: SolisStorage EverCore C5 Pro battery cabinet plus Solis S6-EH3P125K10-NV-YD-H hybrid inverter.
-
Package includes: EverCore 261kWh C5 Pro outdoor battery cabinet + S6-EH3P125K10-NV-YD-H hybrid inverter
- IP55 battery cabinet + IP66 inverter | outdoor installation (C4/C5 optional on cabinet; C5 on inverter)
- Rated energy 261.2 kWh | usable 258.3 kWh | max cycle rate 0.5P | max cycle efficiency ~89%
- LFP 3.2 V / 314 Ah | ~8000 cycles | 13 × 20.1 kWh packs | battery 832 V (754–936 V) | 157 A rated DC
- Inverter rated output 125 kW / 125 kVA | 3/N/PE 380/400 V | 50/60 Hz | backup switch < 10 ms
- Max usable PV input 250 kW | MPPT 10/20 | PV max 1000 V
- Four-in-one power electronics: PCS + PV + STS + EMS with centralised control
- Industrial air-conditioning (cabinet) + pack air cooling + inverter intelligent fan cooling
- Fire suppression: aerosol, explosion relief valve, fire water inlet, audible & visual alarm
- 15-level protection cell → pack → cabinet → system | Type II lightning protection AC/PV/battery
- System dimensions (W×H×D) 1850 × 2230 × 1600 mm | weight ~2900 kg cabinet + ~170 kg inverter
- Operating −25 to +55 °C | altitude to 4000 m | noise ~75 dB(A) @ 1 m
- SolisCloud monitoring and SolisAI dispatch | scalable multi-cabinet expansion
- Certifications include IEC62619, IEC61000, IEC62040, IEC63056, IEC62477, UN38.3
-
Warranty: 10 years on inverter AND battery (EverCore / Powerforum policy)
- Ideal SA C&I load-shedding backup, peak shaving and solar self-consumption
- Combo SKU: SOL-EVERCORE-261KWH-125KW-NV-C5-PRO — battery-only cabinet also listed separately
- Must be installed by a qualified C&I solar electrician to local standards
Official Datasheet: EverCore (100–261) kWh datasheet
Official Product Page: https://www.solisstorage.com/
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
