Description
Available on backorder – please contact us for lead time.

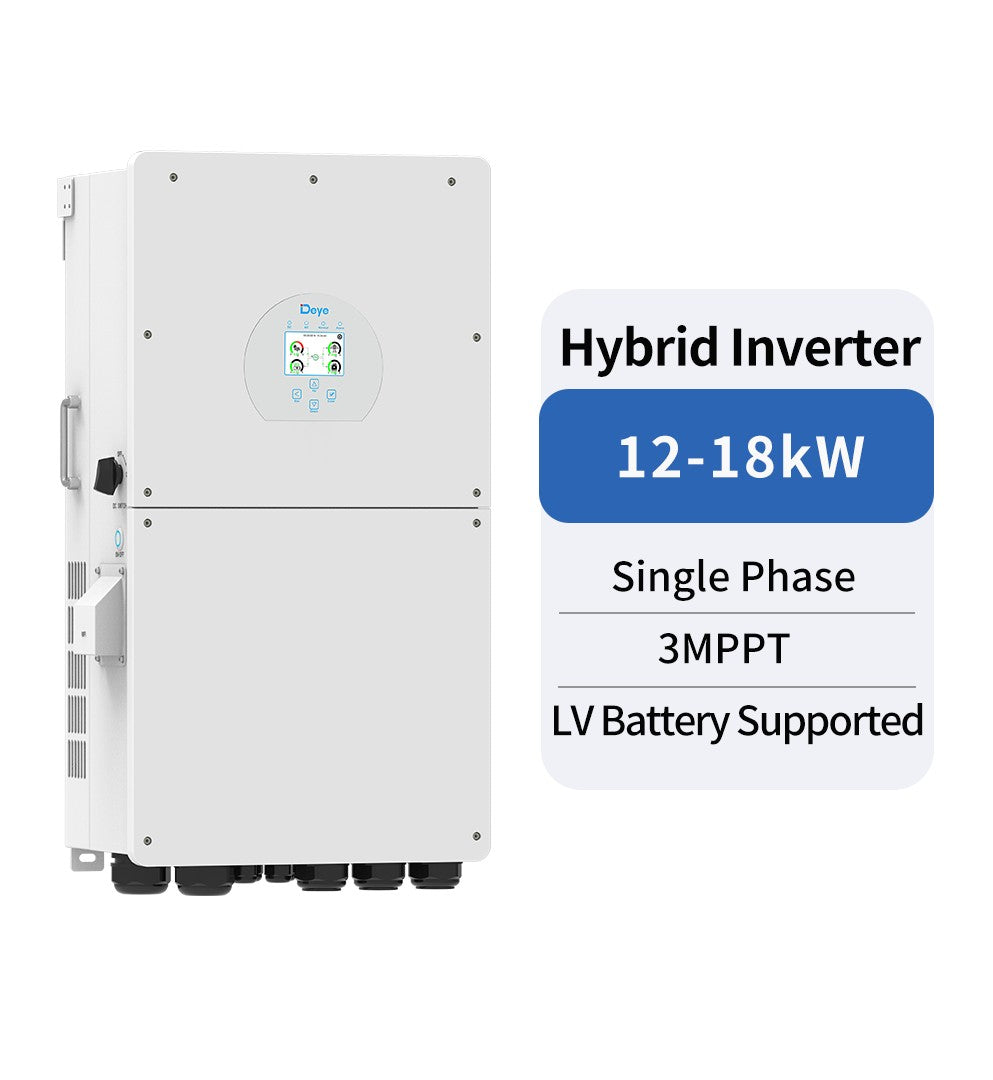

The Deye SUN-12K-SG01LP1-EU-AM3-P is a 12kW single-phase low-voltage hybrid inverter from the SG01LP1-EU-AM3-P series with three MPPTs and dual battery inputs, designed for high-capacity residential solar and battery systems in South Africa.
- Colorful touch LCD, IP65 protection, suitable for indoor and outdoor installation
- Rated AC input/output: 12000W | Max AC apparent power: 13200VA
- Battery voltage range: 40-60V (lead-acid or lithium-ion) | 2 battery inputs | self-adaptation to BMS
- Max charging/discharging current: 220A
- Max PV access power: 24000W | Max PV input power: 19200W
- Triple MPPT (3/2+2+2), max operating PV current 36A+36A+36A
- Max PV input voltage: 500V | MPPT range: 150-425V | Start-up: 125V
- Peak power (off-grid): 2× rated for 10 seconds
- Max continuous AC passthrough: 100A
- Supports up to 16 units in parallel (on-grid & off-grid) and multiple batteries in parallel
- AC couple for retrofitting existing systems | generator energy storage support
- 6 programmable time periods for charge/discharge
- Max efficiency: 97.6% | Euro efficiency: 96.5% | MPPT efficiency >99%
- Intelligent air cooling, noise <55dB | size 464×763×282 mm | weight 54.1 kg
- Monitoring (optional): GPRS/WiFi/Bluetooth/4G/LAN | NRS 097 / AS 4777.2 compliant
- Operating temperature: -40 to +60°C (derating above 45°C)
- Warranty: 5 Years/10 Years (depends on final installation site; refer to Deye warranty policy)
Official Datasheet: Deye SUN-(12-18)K-SG01LP1-EU-AM3-P Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
