Description

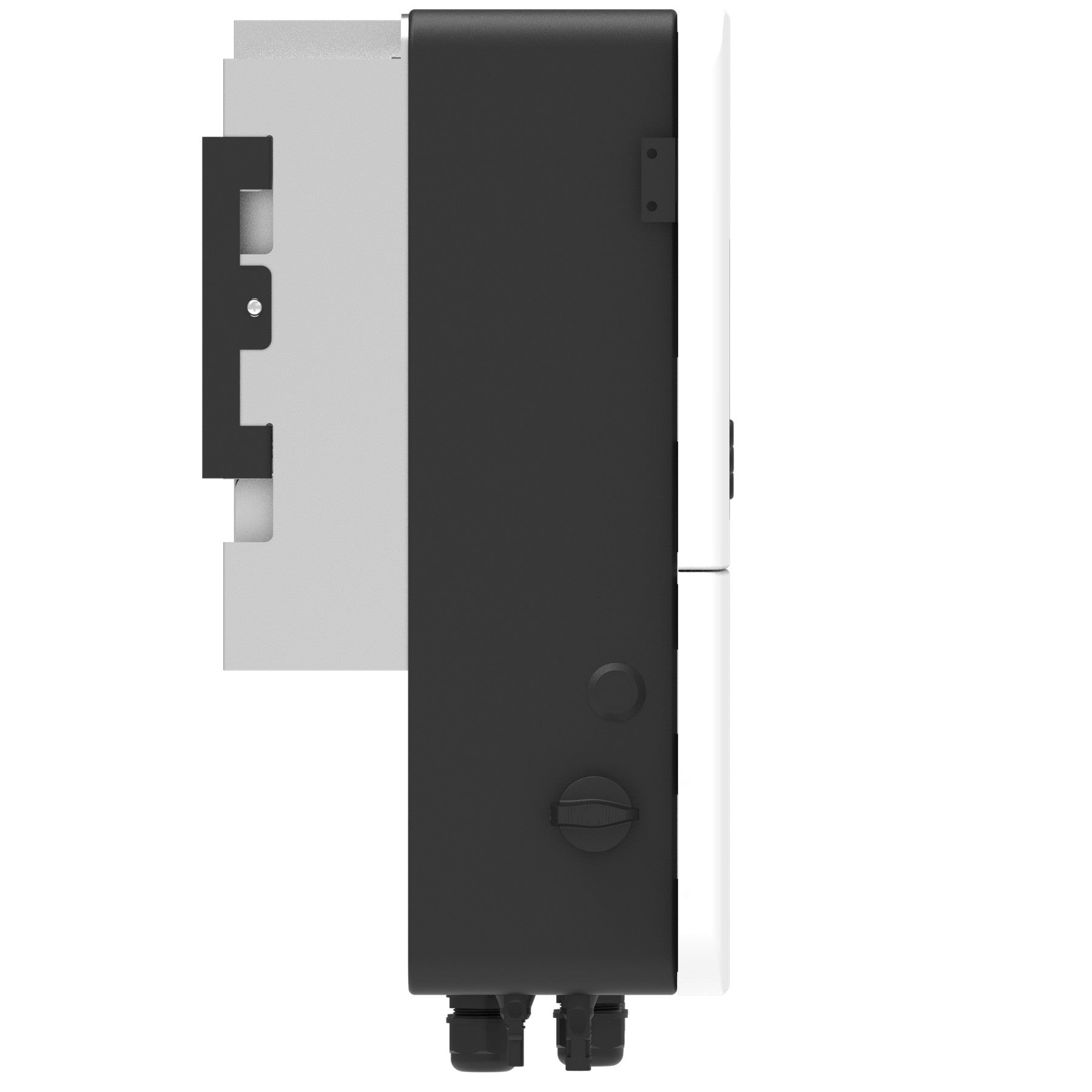

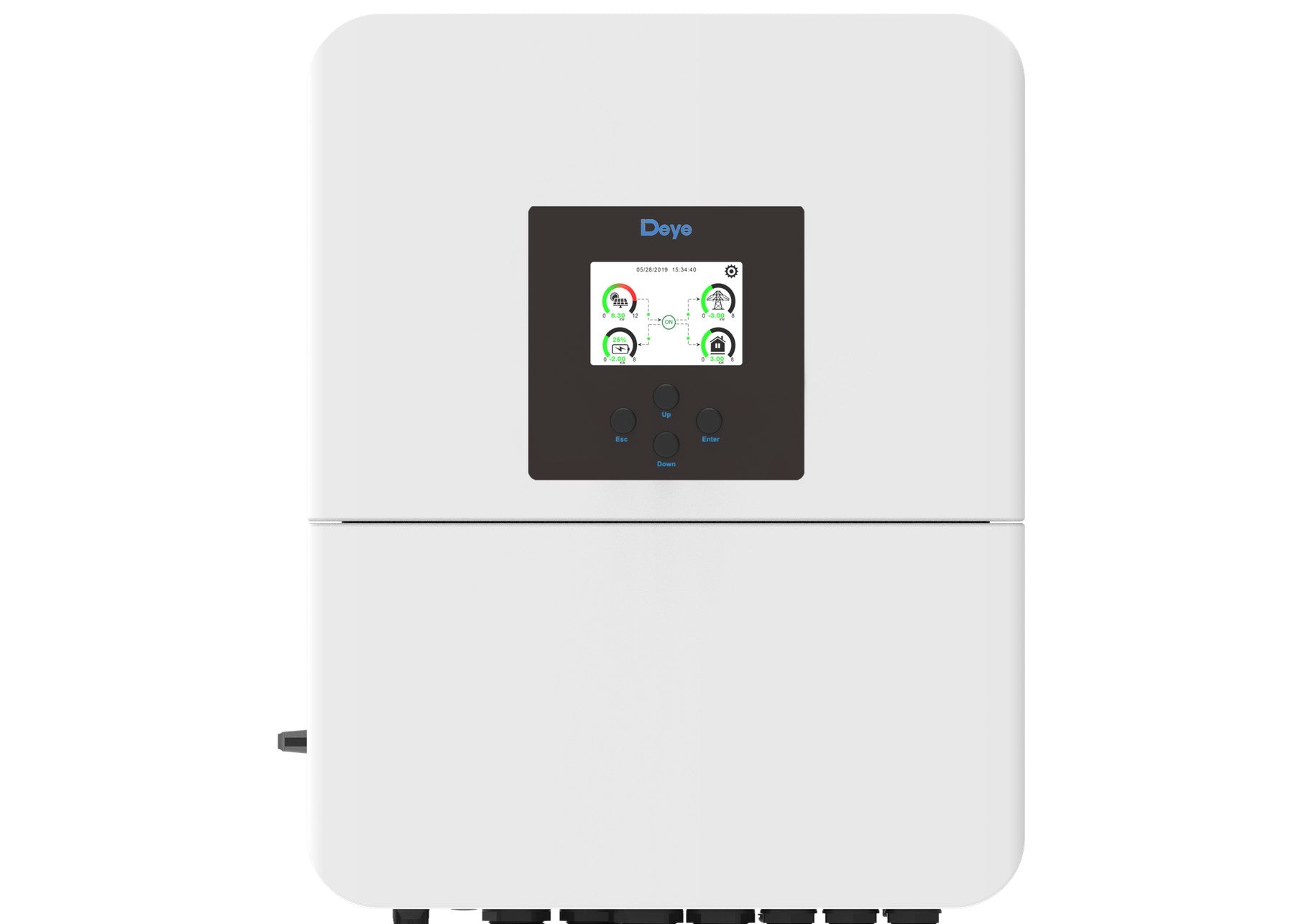

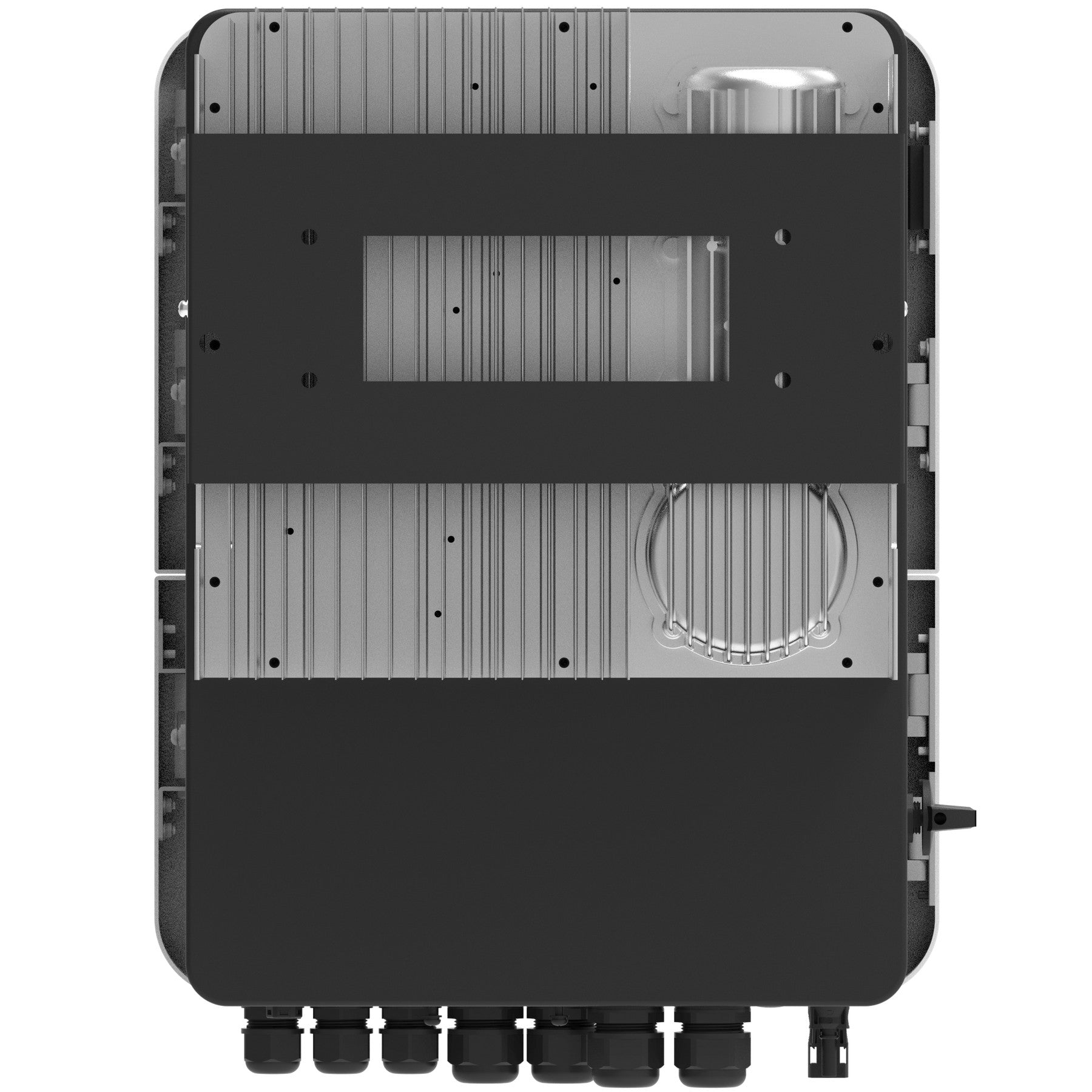

The Deye SUN-5K-SG04LP1-EU-SM2 is a 5kW single-phase low-voltage hybrid inverter from the SG04LP1-EU-SM2 series, designed for residential solar and battery systems in South Africa.
- Colorful touch LCD, IP65 protection, suitable for indoor and outdoor installation
- Rated AC output: 5000W | Max AC apparent power: 5500VA
- Battery voltage range: 40-60V (lead-acid or lithium-ion) with self-adaptation to BMS
- Max charging/discharging current: 120A
- Max PV access power: 10000W | Max PV input power: 8000W
- Dual MPPT (2/1+1), max operating PV current 18A+18A
- Max PV input voltage: 500V | MPPT range: 150-425V | Start-up: 125V
- Peak power (off-grid): 2× rated for 10 seconds
- Max continuous AC passthrough: 35A
- Supports up to 16 units in parallel (on-grid & off-grid) and multiple batteries in parallel
- AC couple for retrofitting existing systems | generator energy storage support
- 6 programmable time periods for charge/discharge
- Max efficiency: 97.6% | Euro efficiency: 96.5% | MPPT efficiency >99%
- Natural cooling, noise <45dB | size 376×470×241.5 mm | weight 19 kg
- Monitoring (optional): GPRS/WiFi/Bluetooth/4G/LAN | NRS 097 compliant
- Operating temperature: -40 to +60°C (derating above 45°C)
- Warranty: 5 Years/10 Years (depends on final installation site; refer to Deye warranty policy)
Official Datasheet: Deye SUN-(3-6)K-SG04LP1-EU-SM1/SM2 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
