Description

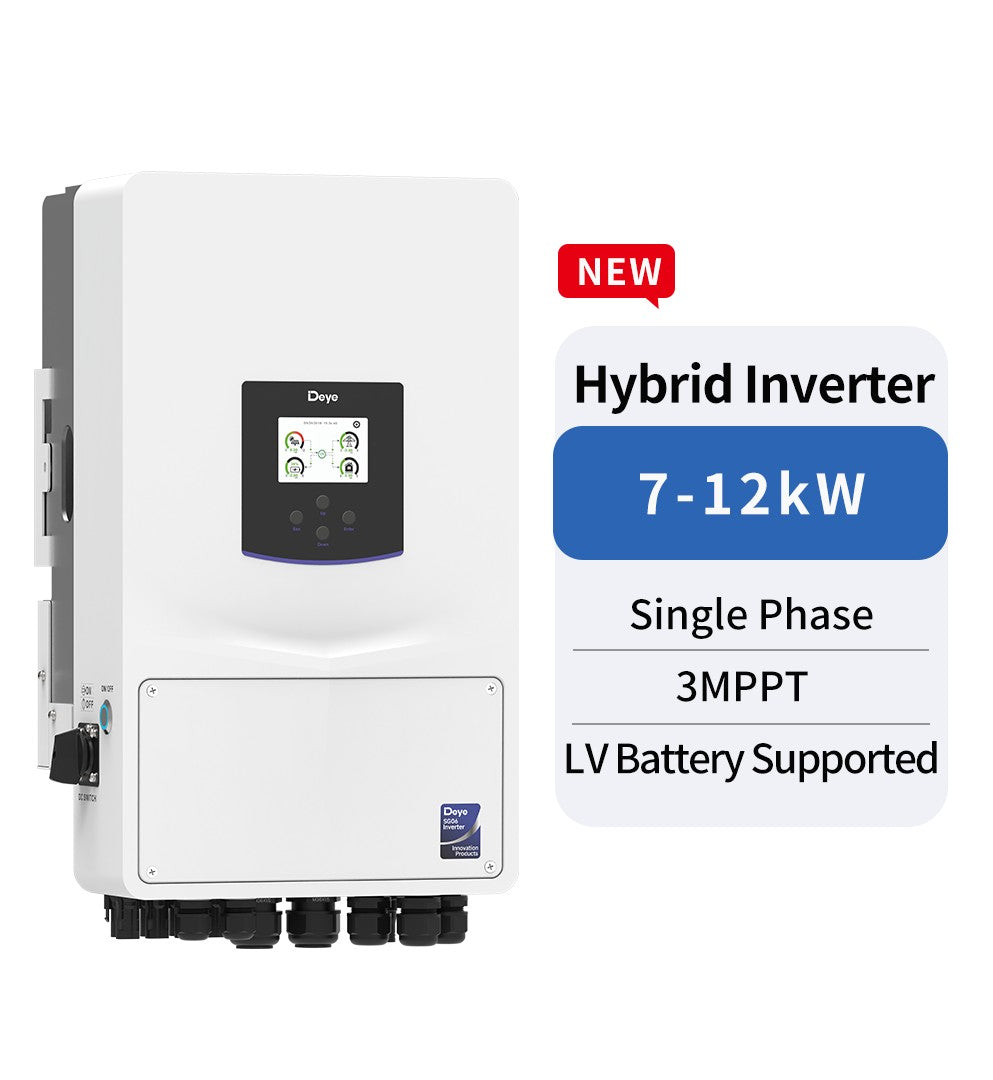

The Deye SUN-8K-SG06LP1-EU-CM3 is an 8kW single-phase low-voltage hybrid inverter from the SG06LP1-EU-CM3 series with three MPPTs, designed for residential solar and battery systems in South Africa.
- Colorful touch LCD, IP65 protection, suitable for indoor and outdoor installation
- Rated AC input/output: 8000W | Max AC apparent power: 8800VA
- Battery voltage range: 40-60V (lead-acid or lithium-ion) with self-adaptation to BMS
- Max charging/discharging current: 185A
- Max PV access power: 16000W | Max PV input power: 12800W
- Triple MPPT (3/2+1+1), max operating PV current 36A+18A+18A
- Max PV input voltage: 500V | MPPT range: 150-425V | Start-up: 125V
- Peak power (off-grid): 2× rated for 10 seconds
- Max continuous AC passthrough: 65A
- Supports up to 16 units in parallel (on-grid & off-grid) and multiple batteries in parallel
- AC couple for retrofitting existing systems | generator energy storage support
- 6 programmable time periods for charge/discharge
- Max efficiency: 97.6% | Euro efficiency: 96.5% | MPPT efficiency >99%
- Intelligent air cooling, noise <45dB | size 340×580×234 mm | weight 24.6 kg
- Communication: WiFi, RS485, CAN | NRS 097 compliant
- Operating temperature: -40 to +60°C (derating above 45°C)
- Warranty: 5 Years/10 Years (depends on final installation site; refer to Deye warranty policy)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
