Description

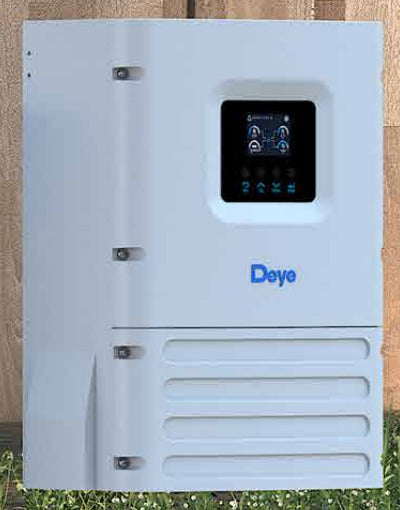

The Deye SUN-6K-OG02LP1-EU-AM1 is a new-generation 6kW single-phase low-voltage off-grid inverter from the OG02LP1 series, designed for standalone solar and battery systems in South Africa.
- LCD display, IP65 protection, suitable for indoor and outdoor installation
- Rated AC output: 6000W | Max AC output: 6000VA, pure sine wave, 230V
- Battery voltage range: 40-60V (lead-acid or lithium-ion) with self-adaptation to BMS
- Max charging/discharging current: 135A
- Max PV access power: 12000W (2x PV oversizing) | Max PV input power: 9600W
- Single MPPT (2 strings), max operating PV current 36A
- Max PV input voltage: 450V | MPPT range: 150-425V
- Peak power: 2x rated for 10 seconds
- 4ms ultra-fast switching for sensitive loads
- Grid and generator AC input: 35A | Max input power to battery: 6000W
- Inverter and battery expandable in parallel
- PV prioritized, surplus stored
- Max efficiency: 97.6% | Euro efficiency: 96.5% | MPPT efficiency >99%
- Intelligent air cooling, noise <46dB
- Communication: WiFi, RS485, CAN
Official Datasheet: Deye SUN-(3-6)K-OG02LP1-EU-AM1 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
