Description

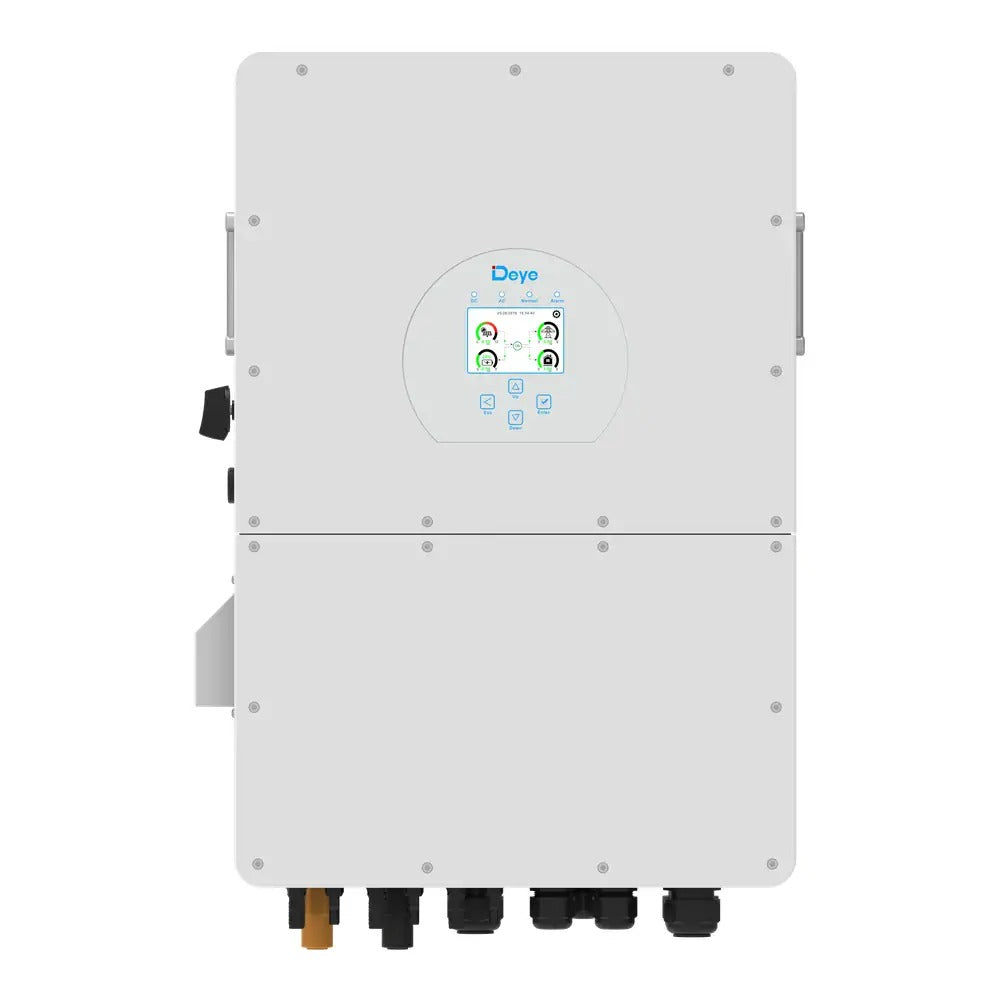

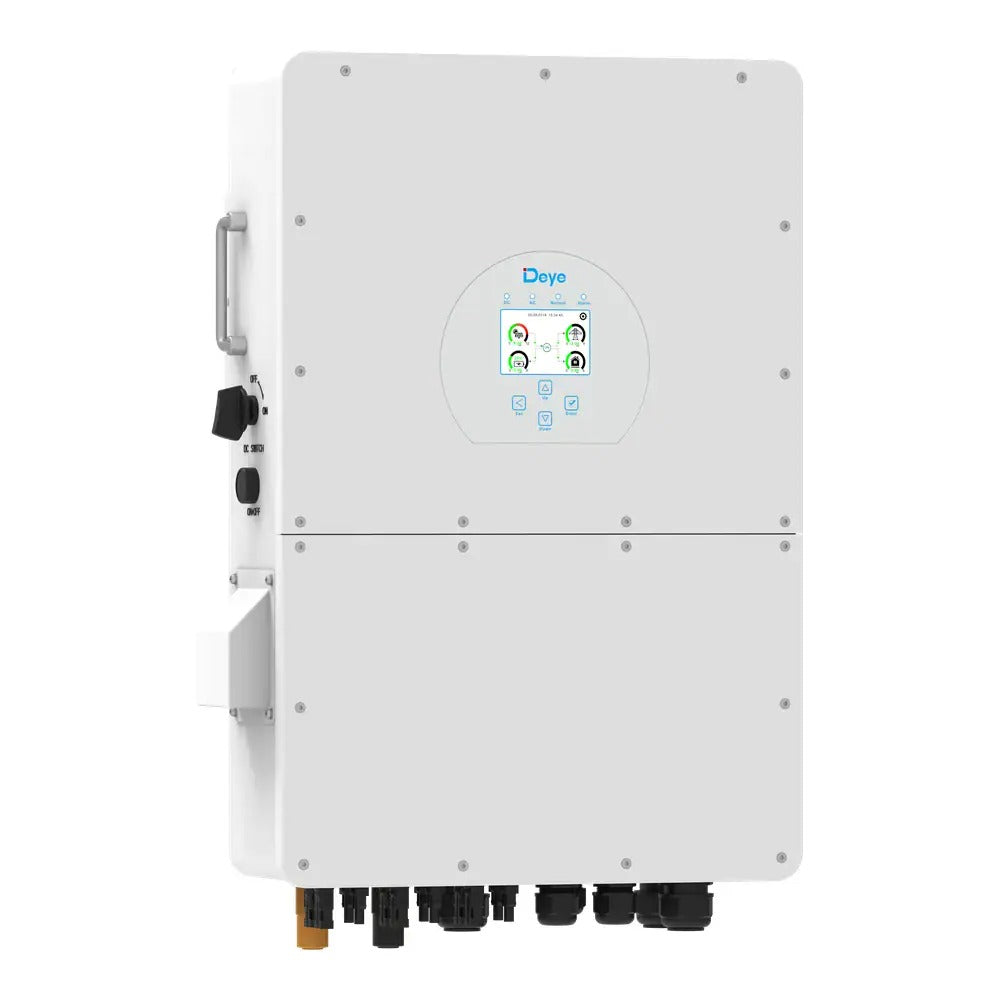

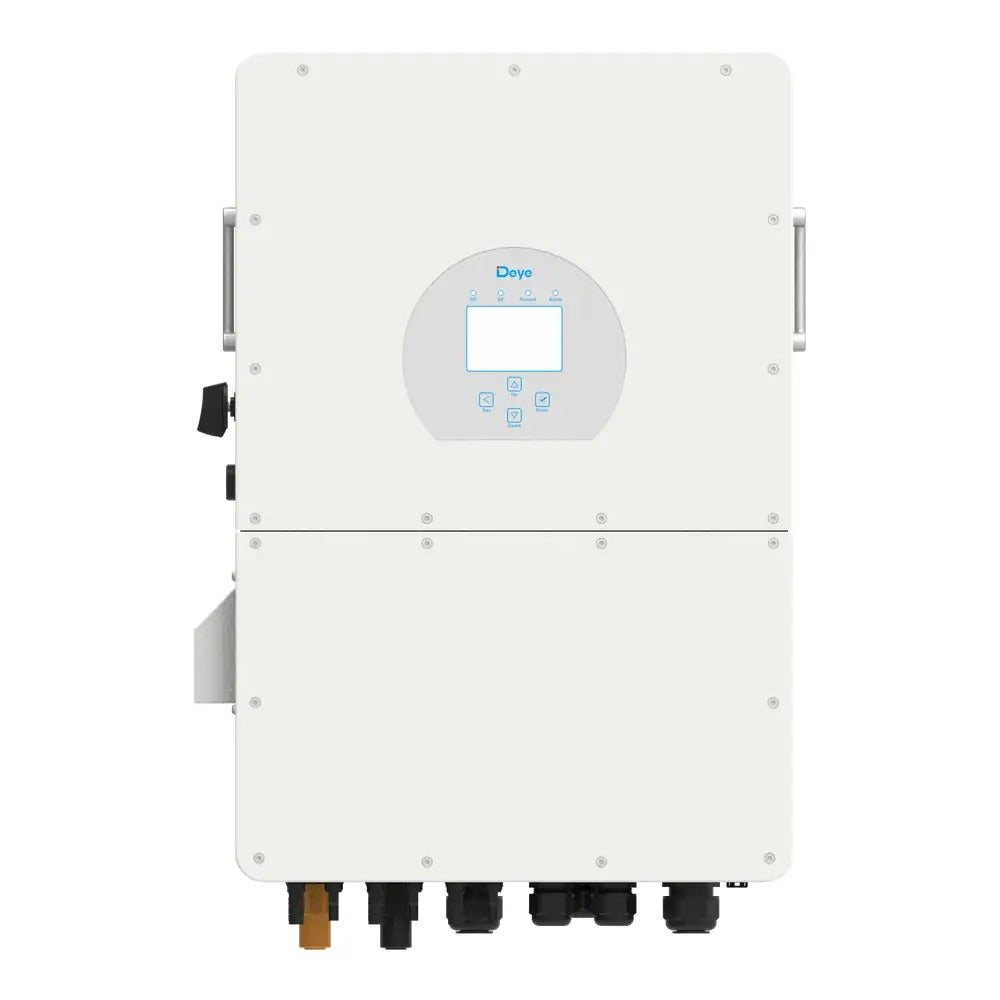

The Deye SUN-30K-SG02HP3-EU-AM3 is a 30kW three-phase high-voltage hybrid inverter from the SG02HP3-EU-AM3 series, designed for larger residential and light commercial solar and battery systems in South Africa.
- LCD+LED display, IP65 protection, suitable for indoor and outdoor installation
- Rated AC input/output: 30000W | Max AC apparent power: 33000VA
- High-voltage lithium-ion battery range: 160-700V | max charge/discharge current: 75A
- Max PV access power: 60000W | Max PV input power: 48000W
- Triple MPPT (3/2+2+2), max operating PV current 36A+36A+36A
- Max PV input voltage: 1000V | MPPT range: 150-850V | Start-up: 180V
- Peak power (off-grid): 1.5× rated for 10 seconds
- Max continuous AC passthrough: 80A | 100% unbalanced output
- Supports up to 10 units in parallel (on-grid & off-grid) and multiple batteries in parallel
- AC couple for retrofitting existing systems | generator energy storage support
- 6 programmable time periods for charge/discharge
- Max efficiency: 98.5% | Euro efficiency: 98.0% | MPPT efficiency >99%
- Intelligent air cooling, noise ≤55dB | size 448×688×270 mm | weight 46 kg
- Monitoring: GPRS/WiFi/Bluetooth/4G/LAN (optional) | NRS 097 compliant
- Operating temperature: -40 to +60°C (derating above 45°C)
- Warranty: 5 Years/10 Years (depends on final installation site; refer to Deye warranty policy)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
