Description

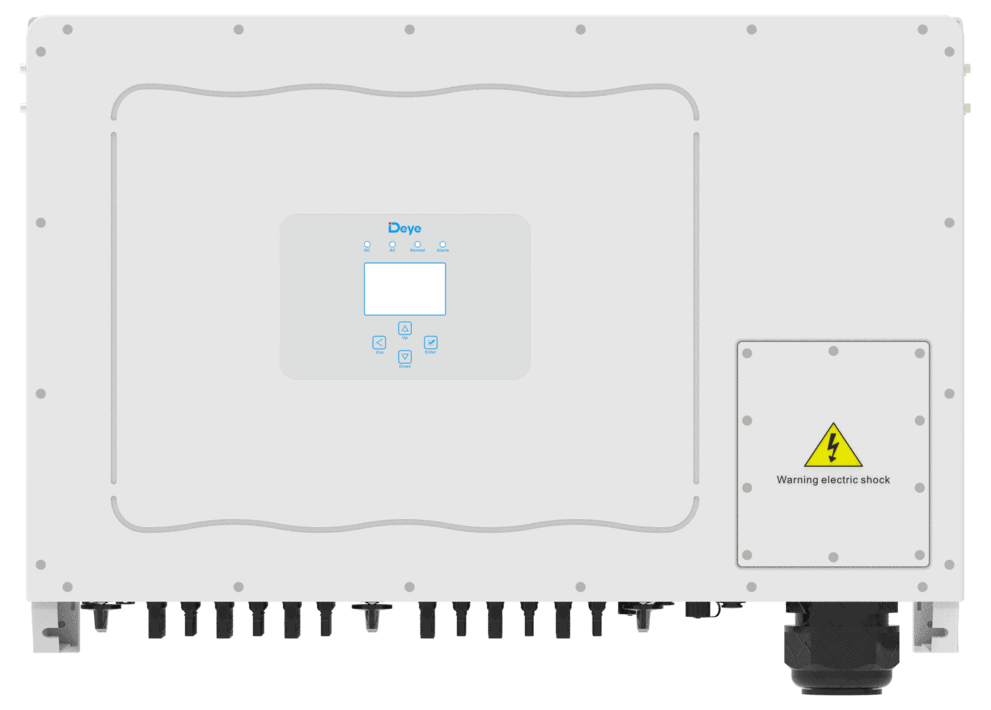

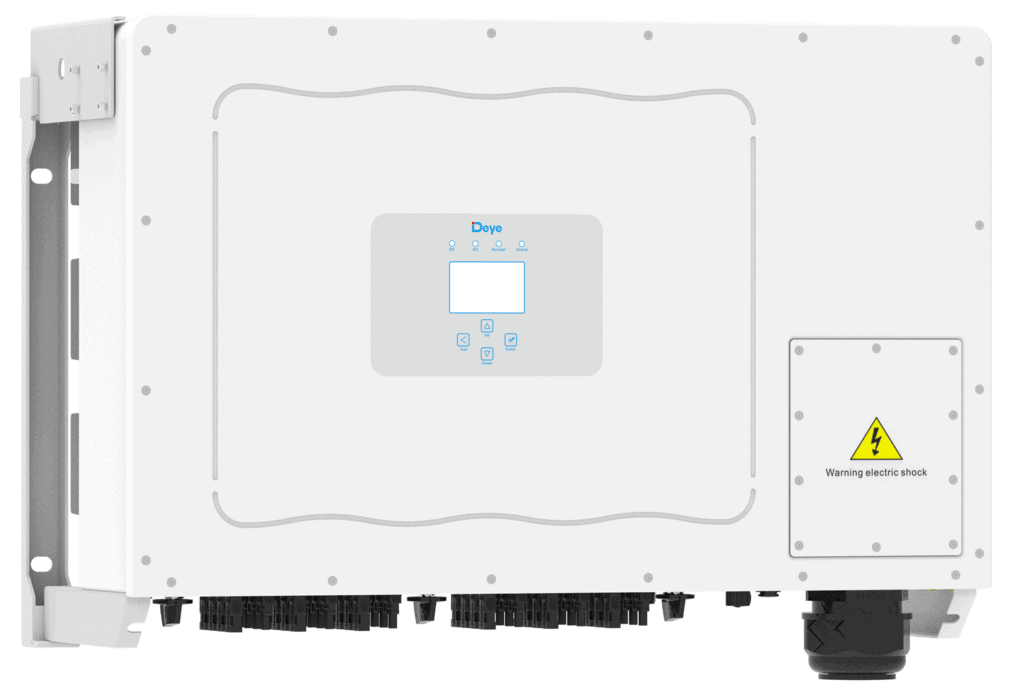

The Deye SUN-110K-G03 is a 110kW three-phase on-grid string inverter for commercial solar plants.
Key specifications
- Rated output 110kW; 121kVA max.; rated output current 166.7A / 159.4A
- Max. PV input 150kW; max. DC voltage 1100V; MPPT range 200–850V
- 6 MPPT (4+4+4+4+4+4 strings)
- Max. efficiency 98.8%; EU efficiency 98.2%
- IP65 protection, suitable for indoor and outdoor installation; ≤55dB
- 824 × 516 × 312.7mm; 81kg
- RS485 / RS232 / Wi-Fi / LAN
Warranty: 5 years standard per Deye terms.
Official source: Official datasheet (Deye)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
