Description

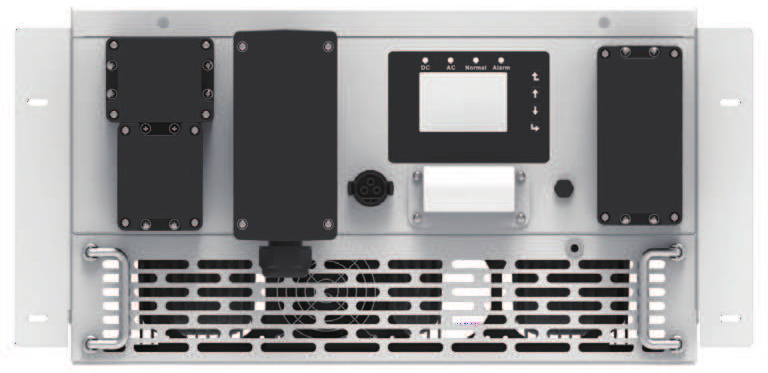

The Deye SUN-125K-PCS01HP3 is a 125kW three-phase bidirectional power conversion system (PCS) used in the Deye BOS-B Pro C&I energy storage solution.
Key specifications
- Rated power 125kW / 125kVA; rated output current 189.4A / 181.2A
- Battery voltage range 630–1000V; max. battery current 200A
- Max. efficiency 98.5%; EU efficiency 97.8%
- IP65 protection, suitable for indoor and outdoor installation; −40 to +60°C; <75dB
- 543 × 310 × 775mm; 81.86kg
- LCD; Wi-Fi / RS485 / CAN / meter
Official source: Official BOS-B Pro product page (Deye)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
