Description

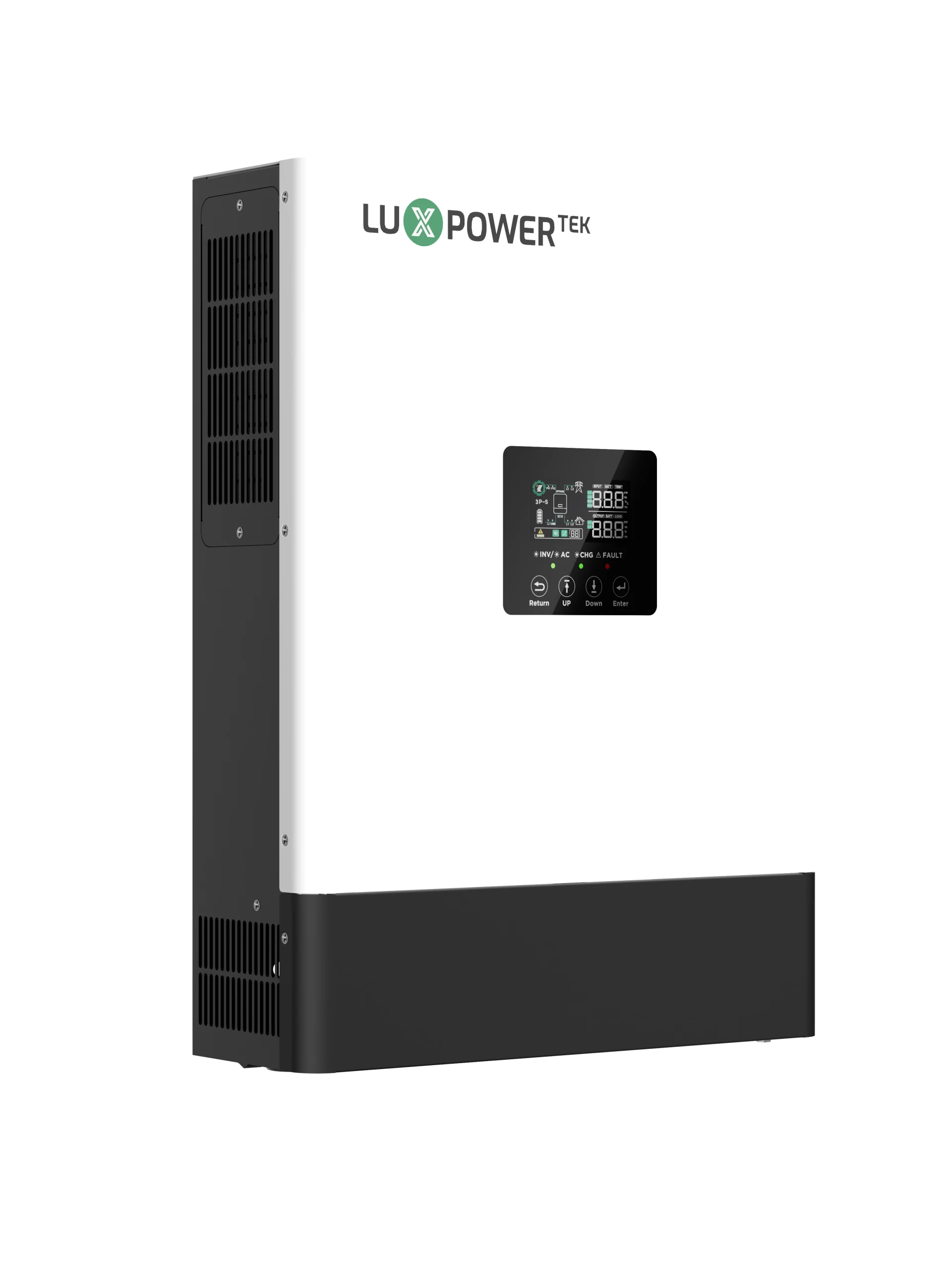

The Luxpower GETA-LB-EU 3.6K/24V is a 3.6kW single phase 24V off-grid inverter from the GETA series, designed for small solar and backup systems in South Africa.
- LCD + LED display, IP21 protection, indoor installation only
- Rated output power 3600W | 15.7A | 220/230V | dual outputs for intelligent load management
- Rated battery voltage 24V | max AC charge current 100A | max PV+AC charge current 120A | max discharge current 140A
- Max PV array power 4000W | MPPT range 55–440V | start-up 65V | 27A
- Max AC input power 7200W
- Size 307 × 418 × 111mm | weight 7.3kg
- 1 MPPT | max PV input voltage 500V
- Lithium-ion or lead-acid batteries | battery activation via PV and utility grid
- EQ function for enhanced battery performance and longevity
- AC input 230V: 170–280V (PC mode) or 90–280V (appliance mode)
- Surge power 2× rated power for 2s | switching time <10ms | pure sine wave
- MPPT efficiency 99.0% | max charge efficiency 96.0% | max discharge efficiency 93.0%
- Real-time remote monitoring via WiFi
- Smart cooling | operating temperature −10 to 55°C (derating above 40°C)
- Warranty: 1.5 years
Official Product Page: Luxpower GETA-LB-EU 1.5-6K
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
