Description

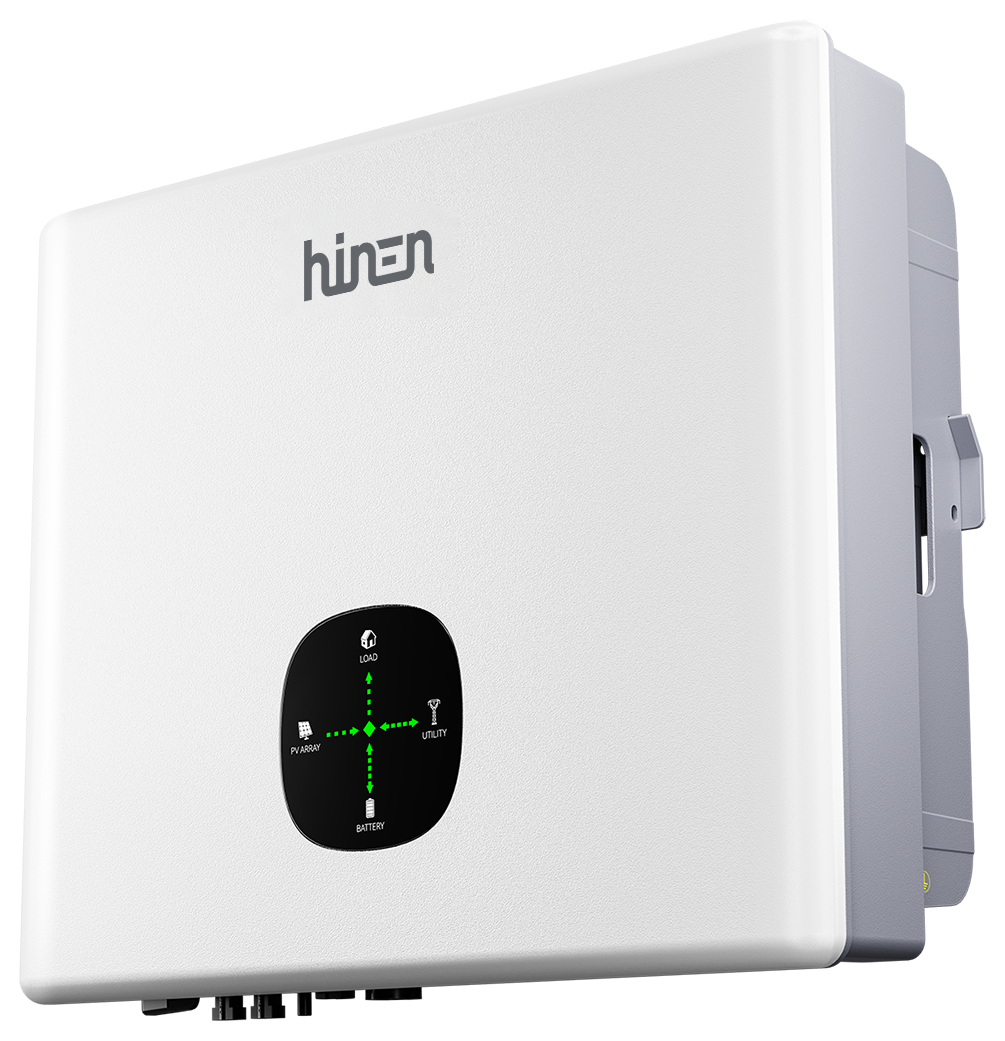

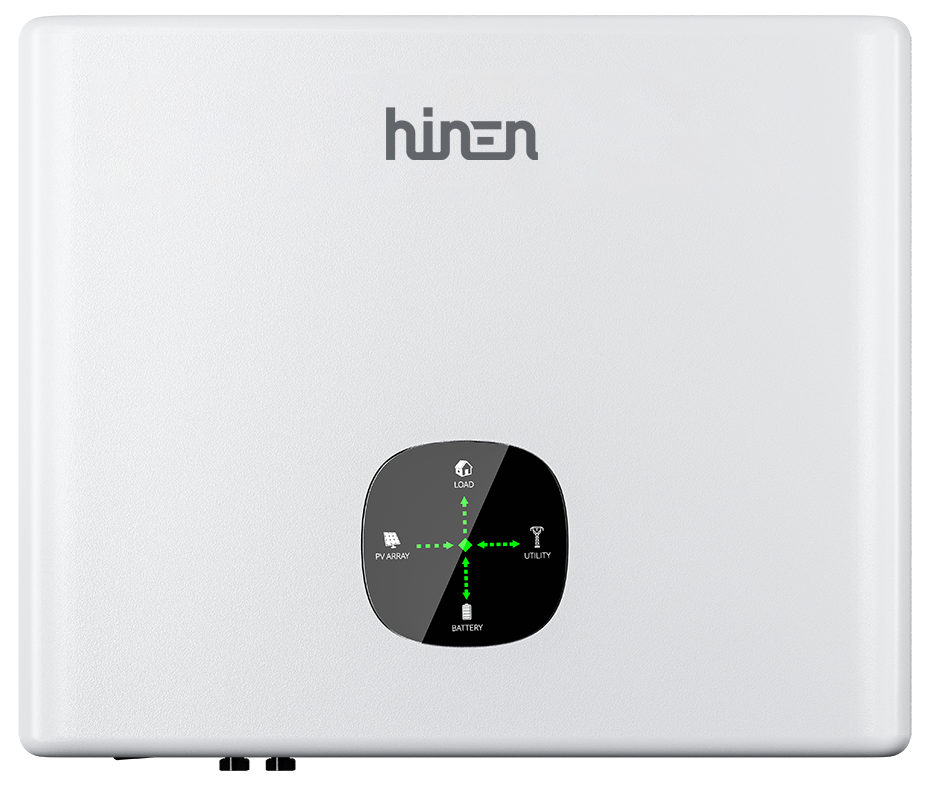

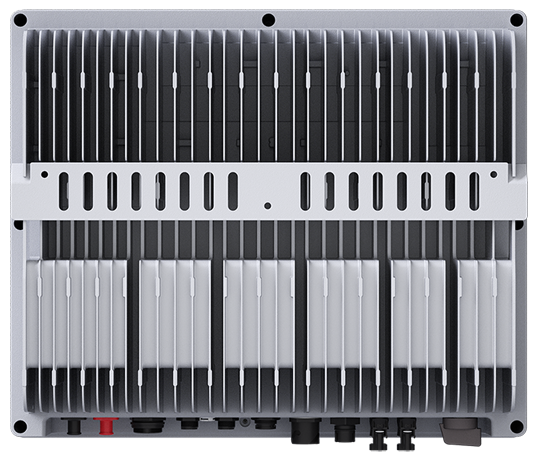

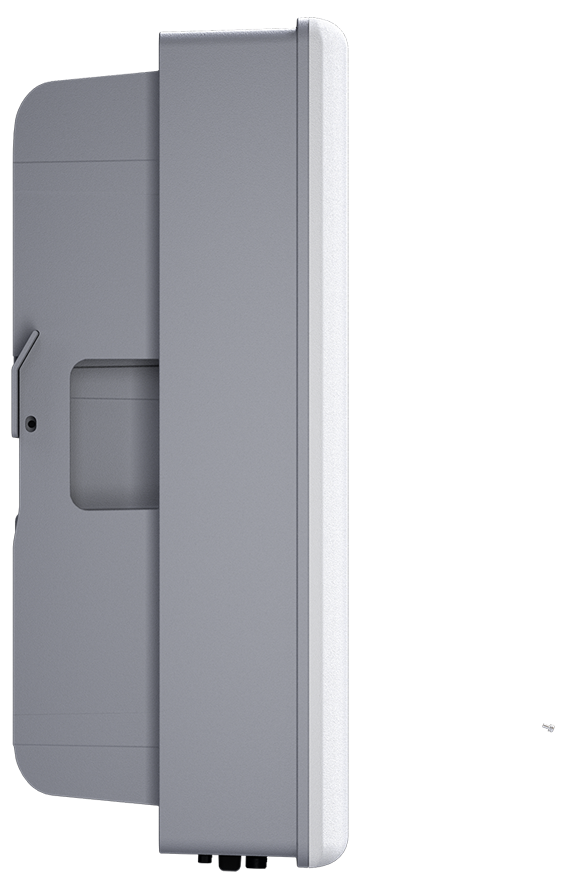

The Hinen H6000-EU is a 6kW single-phase low-voltage hybrid inverter from the H6000-EU series, designed for residential solar and battery systems in South Africa.
- LED status display, IP65 protection, suitable for indoor and outdoor installation
- Rated AC / backup output: 6000W | Max AC apparent power: 6000VA | Rated/max output current: 26A / 27A
- Battery voltage range: 42-58V (LiFePO4 or lead-acid) | Nominal 50V | Max charge/discharge current: 120A continuous
- Max PV input: 11,400W (over 190% oversizing) | Max PV voltage: 550V | Startup: 90V
- Dual MPPT (2 trackers), max 16A per MPPT / PV string
- EPS / backup transfer time <20ms for seamless loadshedding backup
- Supports parallel grid-connected operation of up to 2 inverters
- Intelligent AC-coupled, DC-coupled and hybrid modes | Multiple APP work modes
- Max efficiency: 97.2% | Euro efficiency: 96.8% | MPPT efficiency >99.5%
- Fanless natural cooling, noise <25dB (sleep-level quiet)
- All-round protection: PV disconnection, ground fault, DC bus, Type II DC SPD & Type III AC SPD
- Monitoring: WiFi / GPRS | Dimensions: 568 x 472 x 188 mm | Weight: 29.6 kg
- NRS 097-2-1 and major international grid codes (see datasheet)
- Warranty: 5 years (refer to the Hinen product warranty terms)
- Compatible with 48V LiFePO4 batteries commonly used in South African homes
- Wall-mounted die-cast IP65 enclosure with waterproof connectors
- Operating temperature: -25 to +60C (derating above 45C)
Official Datasheet: Hinen H6000-EU Datasheet (AF)
Official Product Page: Hinen H6000-EU 6kW Single-phase Hybrid Inverter
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
