Description

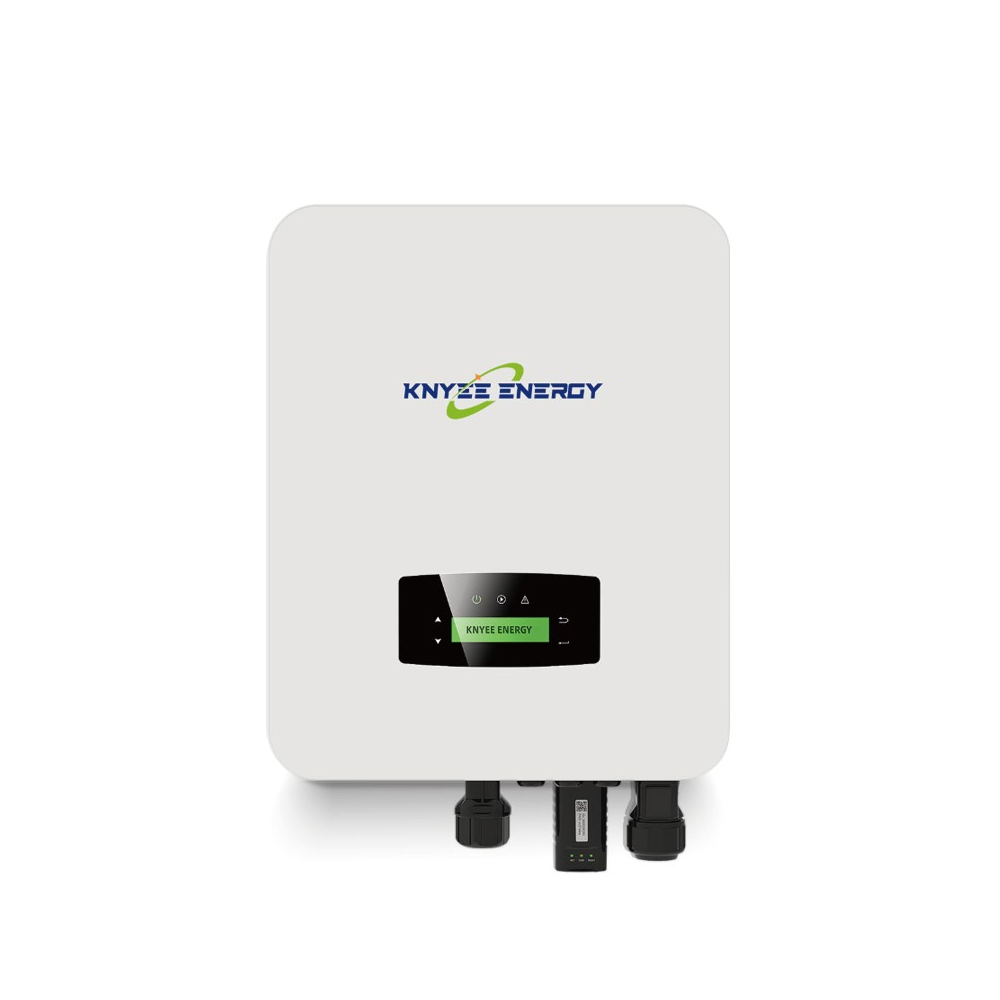

The Knyee LH6K-SL is a 6kW single-phase low-voltage hybrid inverter with dual MPPT for on-grid and off-grid residential solar systems.
- Max PV input power: 9.0kW | Full-load MPPT range: 170–500V | Max PV voltage: 550V | 2 MPPTs
- Max charge/discharge: 4.8kW / 120A | Battery 40–60V (nominal 51.2V) | Lithium or lead-acid
- On-grid / off-grid continuous power: 6.0kVA | Peak off-grid 9.0kVA (10 min)
- Switching time <10ms | Max efficiency 97.6%
- IP65 | Suitable for indoor and outdoor installation (install under shelter per manual)
- Supports parallel operation of up to 6 units
- Net weight: 20.2 kg | Dimensions approx. 370 × 513 × 192 mm
- Warranty: 5 years (refer to Knyee warranty terms)
Official Datasheet: Knyee LH5K-SL / LH6K-SL Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
