Description

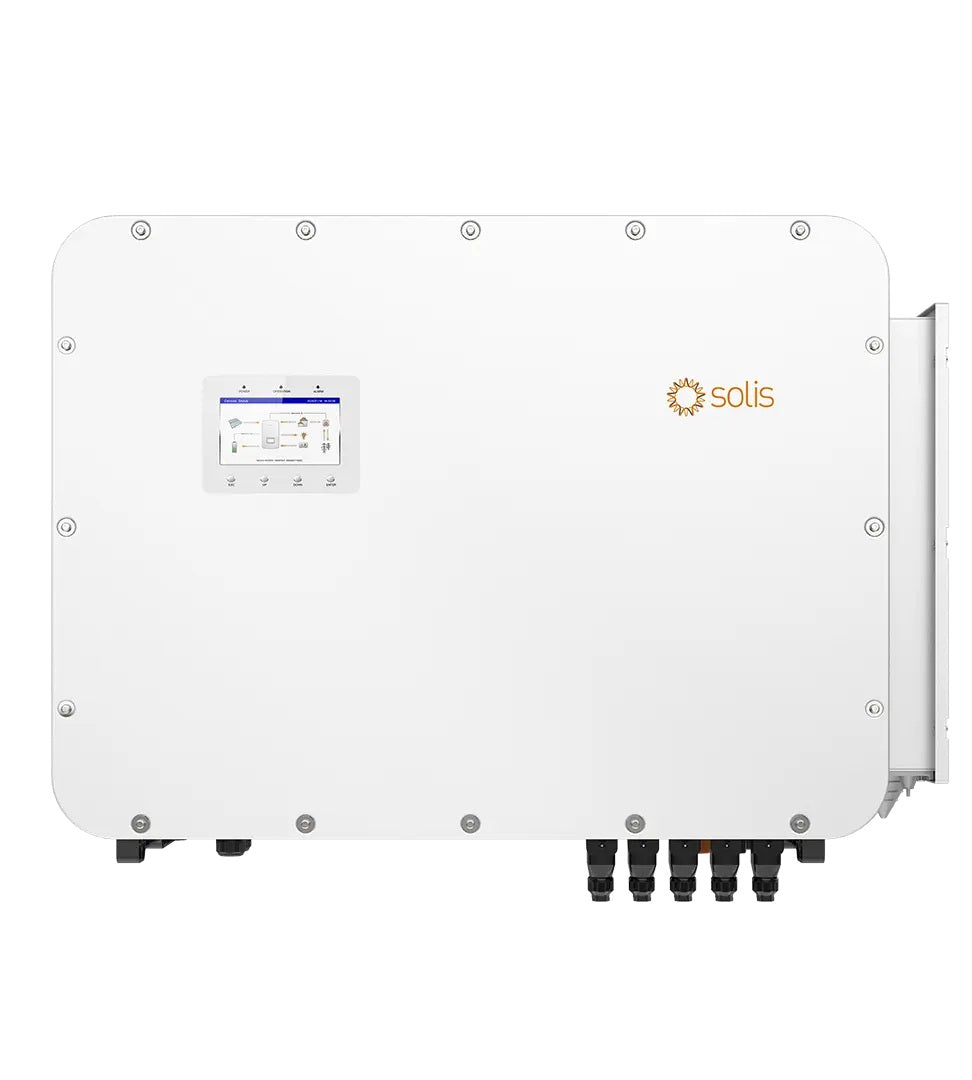

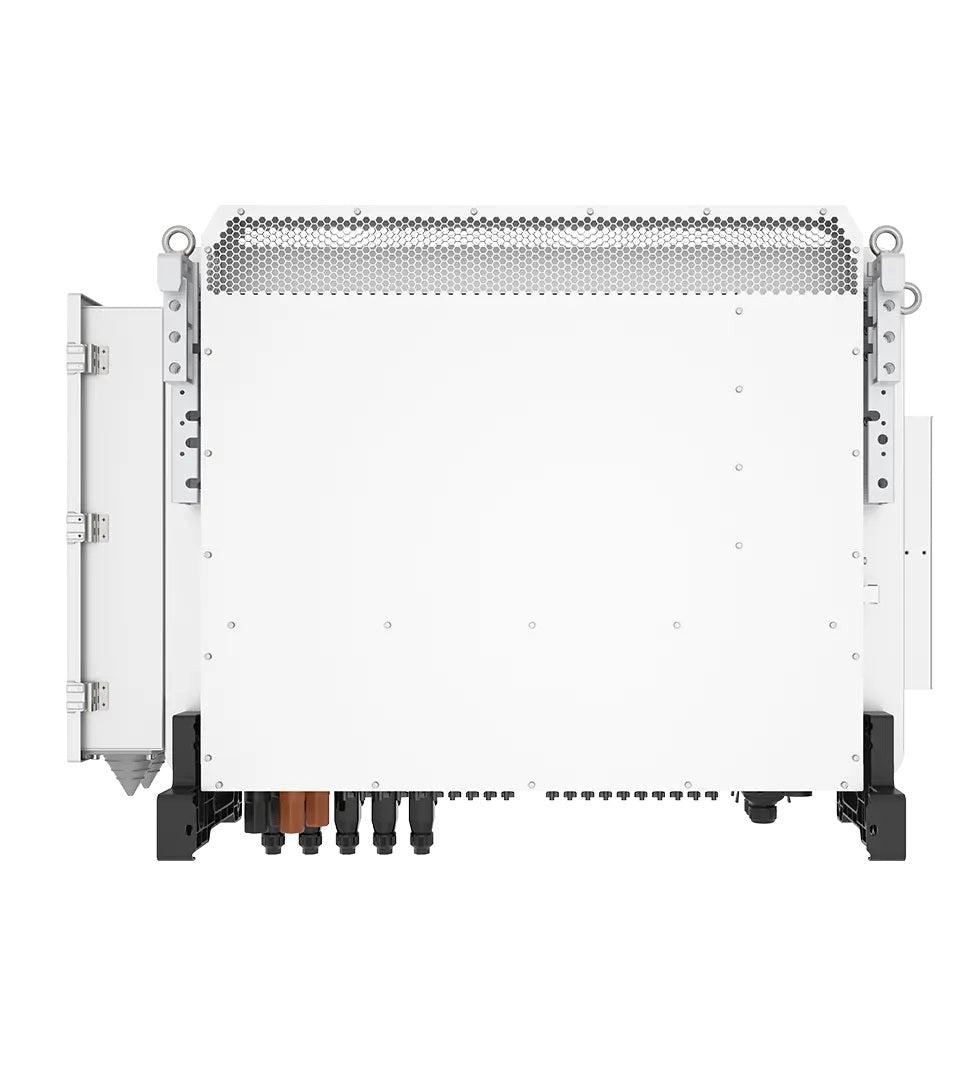

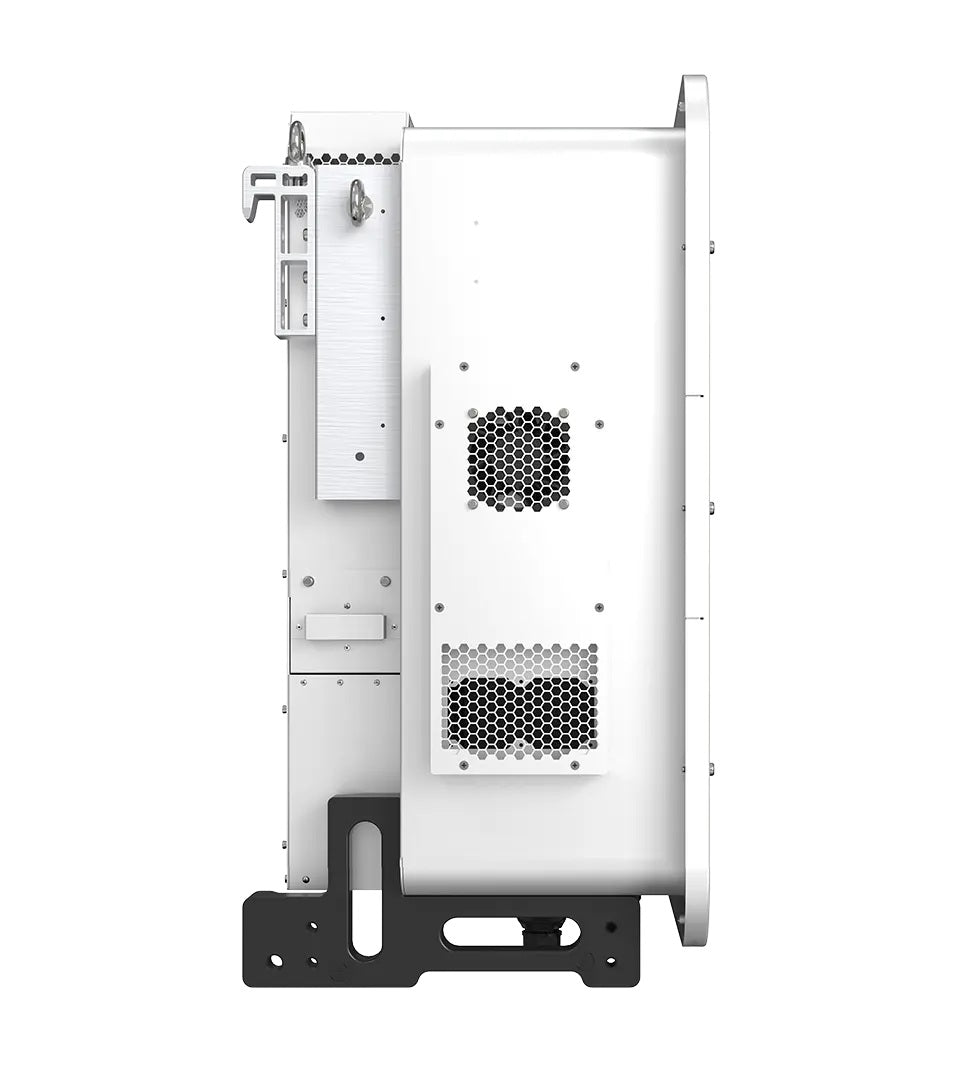

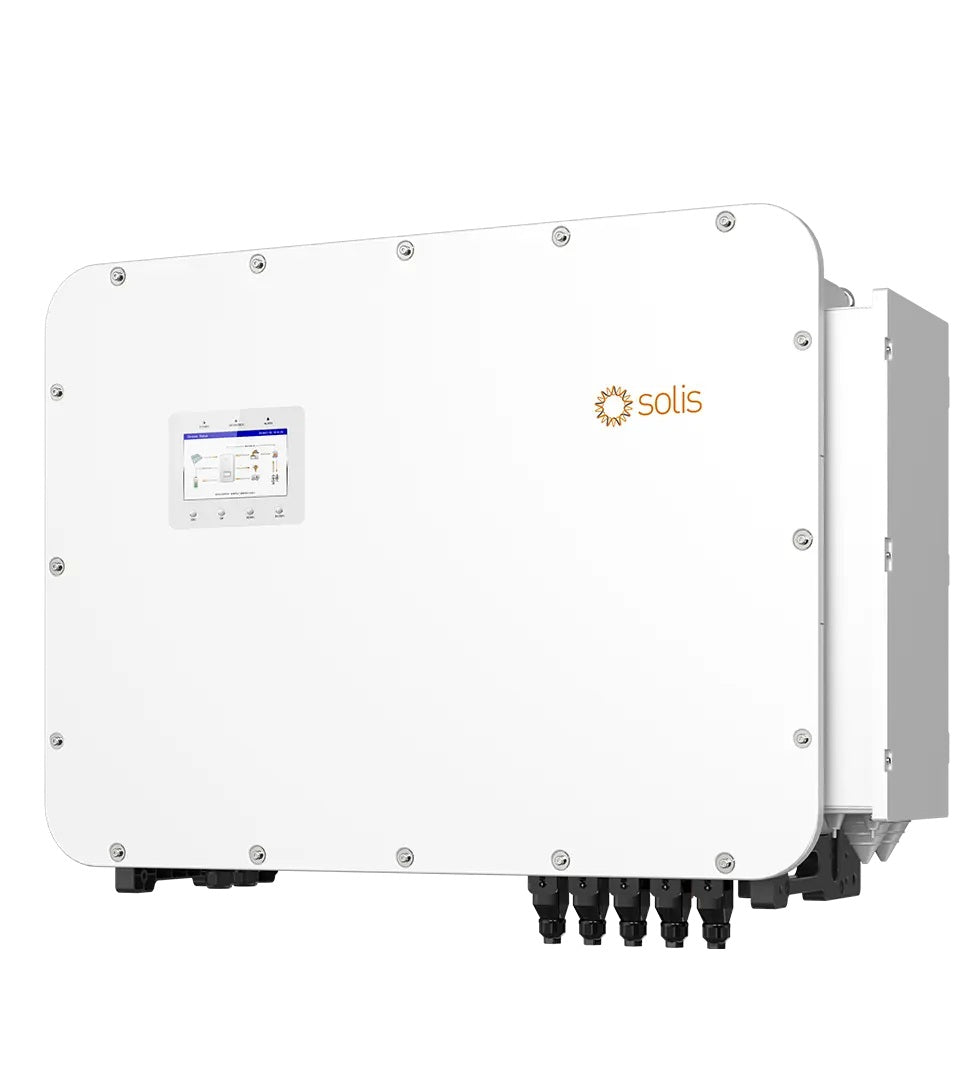

The Solis S6-EH3P100K10-NV-YD-H is a 100kW three-phase high-voltage hybrid inverter from the S6 EH3P C&I series, designed for commercial energy storage and solar in South Africa.
- Rated AC output 100 kW / 100 kVA | 3/N/PE 380/400 V | 50/60 Hz
- IP66 protection, suitable for indoor and outdoor installation | C5 anti-corrosion class on related sheets
- 10 MPPTs / up to 20 strings | Max DC input 1000 V | MPPT range ~150–950 V | Max input current 10 × 42 A class
- Max usable PV input ~200 kW (datasheet family) | Recommended array size per Solis sheet
- Backup / off-grid capability with fast transfer | Generator integration features on Solis C&I hybrids
- Max efficiency ~97.6% | Intelligent fan-cooling
- Dimensions approx. 1174 × 814 × 400 mm | Weight ~170 kg
- Operating −25 to +60 °C | SolisCloud via WiFi/LAN/Bluetooth class comms
- Pairs with HV battery cabinets including EverCore-class storage where specified
-
Warranty: per Solis manufacturer terms; extension options available from Solis
- Type II surge protection architecture on related S6 EH3P models
- Ideal SA C&I daytime shift, peak shaving and load-shedding backup
- Must be installed by a qualified C&I solar electrician
Official Datasheet / Product Page: S6-EH3P(75-125)K10-NV-YD-H series
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
