Description

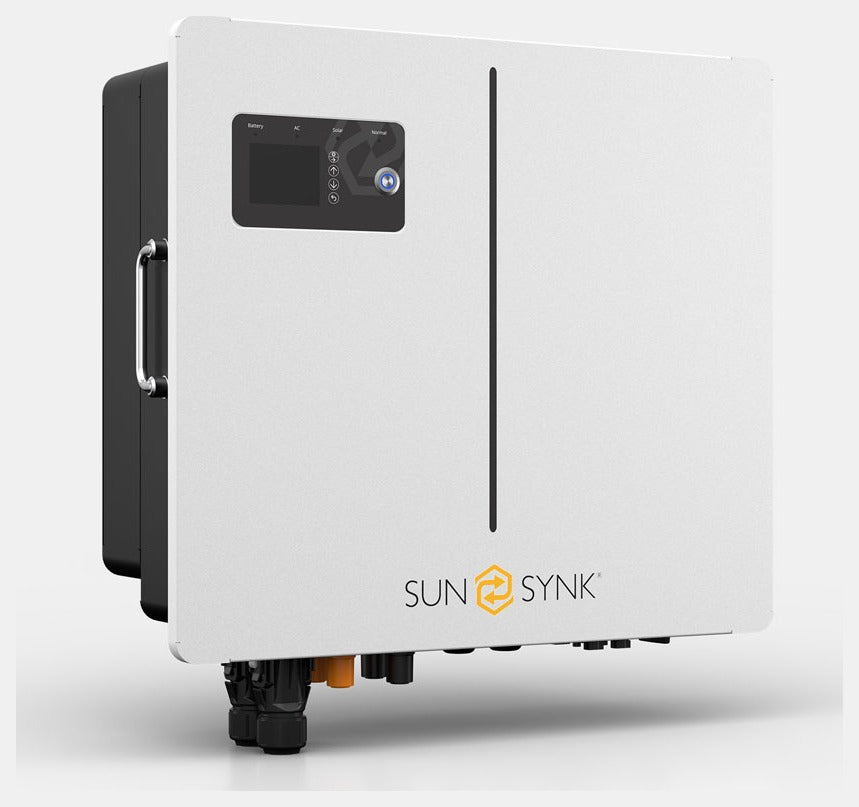

The Sunsynk Lynks Pro 12kW (LP range, 2nd generation) is a 12kW single-phase low-voltage hybrid inverter in an IP65 enclosure, built for South African homes riding through load shedding with solar and battery backup.
- Rated output 12,000W | peak 24,000VA | max bypass current 63A | shift time 10ms
- Max DC (PV) input power 18,000W | 2 MPPT | MPPT range 120-450V, max 500V, start-up 150V
- Battery 40-60V (LiFePO4 or lead-acid), 100-2000Ah recommended | max charge 220A, max discharge 260A (configurable)
- Max efficiency 97.6% | battery-to-load efficiency 94% | MPPT efficiency 99.9%
- Operating temperature -20 to +50°C (derating above 35°C)
- IP65, suitable for indoor and outdoor installation | 620 x 585 x 255mm | 36kg
Official Datasheet: Sunsynk LP Range IP65 Datasheet
Official Product Page: Sunsynk LP 12kW
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
