Description
The Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX is a 5kVA single-phase 48V all-in-one solar inverter/charger combining a MultiPlus-II, a SmartSolar MPPT 250/100 and a GX device, designed for off-grid, backup and grid-parallel solar systems in South Africa.
- GX device with 2 x 16-character display | IP21 protection, indoor installation only
- Continuous output: 5000VA / 4000W at 25°C (3700W at 40°C, 3000W at 55°C) | Peak power 9000W
- Output 230V ±2%, 50Hz | Max apparent feed-in power 4400W / 5000VA
- Battery input voltage range: 38-66V (48V)
- Max battery charge current (AC charger): 70A | Absorption 57.6V, float 55.2V
- Integrated SmartSolar MPPT 250/100: max output 100A | max PV power 5800W
- Max PV open-circuit voltage: 250V | MPPT max efficiency 99%
- PowerControl and PowerAssist | Transfer switch 50A | Max AC input current 50A
- AC input 187-265V, 45-65Hz
- Max inverter efficiency 96% | Zero-load power 18W (12W AES, 2W search)
- Grid in-line and grid-parallel (ESS) topologies | External current sensor optional
- GX interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi | VRM remote monitoring
- VE.Bus port for parallel and three-phase operation
- Programmable relay | Battery temperature sensor
- Operating temperature -40 to +55°C (fan assisted) | Max altitude 2000m
- Aluminium enclosure (blue RAL 5012) | Dimensions (H x W x D): 604 x 323 x 253mm | Weight: 38.6kg
- 5-year manufacturer warranty
Official Datasheet: Victron EasySolar-II GX Datasheet
Official Product Page: Victron EasySolar-II GX
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

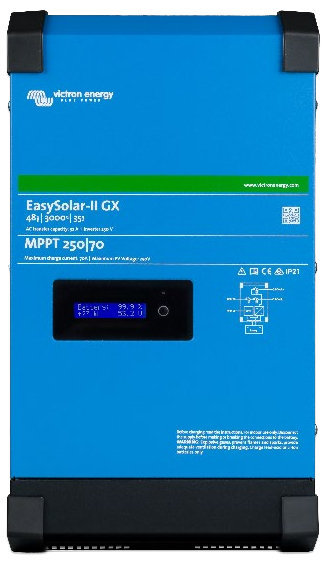

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
