Description

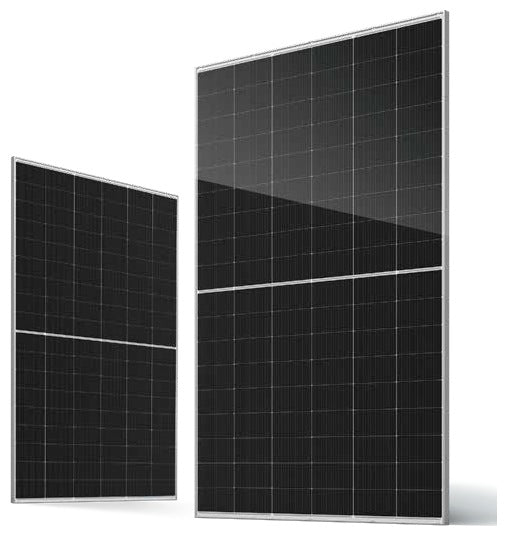

The JA Solar JAM54D40-460/LR is a compact 460W n-type (DeepBlue 4.0 Pro) monofacial double-glass panel with a black frame, a good fit for residential roofs in South Africa where space and looks matter.
- STC: Pmax 460W | Vmp 33.17V | Imp 13.87A | Voc 39.70V | Isc 14.64A | module efficiency 23.0%
- Power tolerance 0 to +3% | temperature coefficient Pmax -0.290%/°C, Voc -0.250%/°C, Isc +0.045%/°C
- 108 half cells (6 x 18) | 1.6mm / 1.6mm front/back glass | black frame | MC4-EVO2A / QC4.10-35 connectors
- Max system voltage 1500V DC | max series fuse 25A | NOCT 45±2°C | Class II | fire UL type 38 / Class C
- Front static load 5400Pa, rear 2400Pa | operating temperature -40 to +85°C
- IP68 junction box, suitable for indoor and outdoor installation
- 1762 x 1134 x 30mm | 22kg | 36 pcs per pallet
Official Datasheet: JA Solar JAM54D40 445-470/LR Datasheet (DE)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
