Description

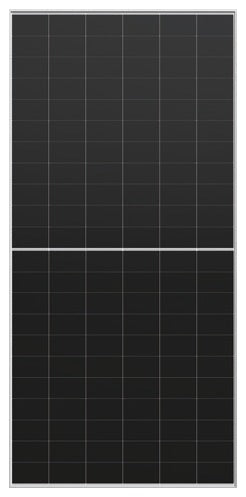

The LONGi Hi-MO X10 LR8-66HVD-645M is a 645W n-type back-contact (HPBC 2.0) bifacial dual-glass solar panel with a clean, gridless front, for residential and commercial solar systems in South Africa. BC cells run cooler and handle partial shading better than conventional panels.
- STC: Pmax 645W | Vmp 40.88V | Imp 15.78A | Voc 49.62V | Isc 16.46A | module efficiency 23.88%
- Power tolerance 0 to +3% | temperature coefficient Pmax -0.260%/°C, Voc -0.200%/°C, Isc +0.050%/°C

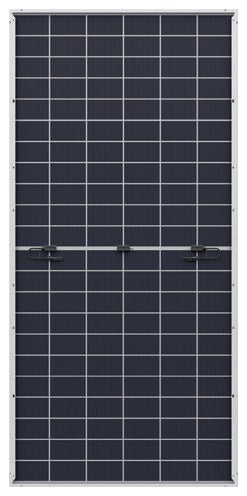

- Bifacial: up to 808W with 25% rear-side gain (677W at 5%, 710W at 10%) | NOCT 45±2°C
- 132 cells (6 x 22) | dual 2.0 + 2.0mm semi-tempered glass | anodised aluminium frame
- Max system voltage 1500V DC | max series fuse 35A | Class II | fire rating IEC Class C
- Front static load 5400Pa, rear 2400Pa | hail RG3 (30mm at 23.9m/s)
- 4mm² output cable, EVO2A (Stäubli) or PV-LR5 connectors | operating temperature -40 to +85°C
- IP68 junction box, suitable for indoor and outdoor installation
- 2382 x 1134 x 30mm | 32.5kg | 36 pcs per pallet
- 15-year product warranty, 30-year power warranty (1% first year, 0.35%/year after)
Official Datasheet: LONGi LR8-66HVD 640~670M Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
