Description

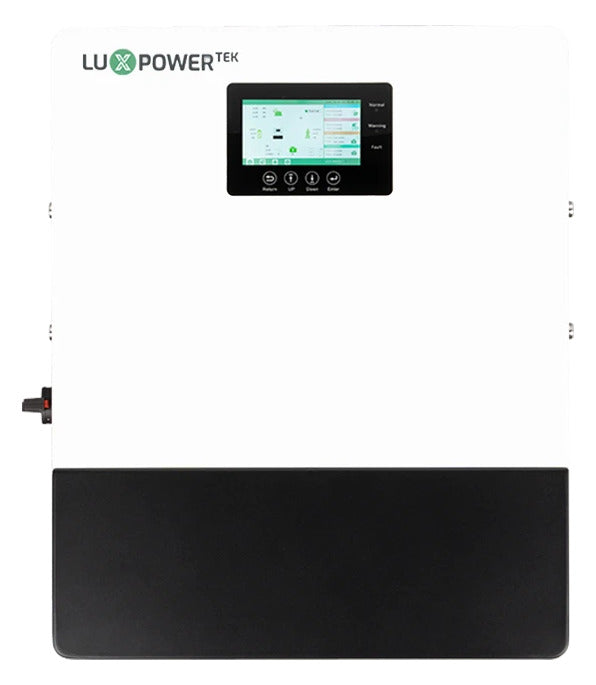

The Luxpower LXP-LB-EU 10K is a 10kW low-voltage (48V) hybrid inverter from the LXP series, designed for residential solar and battery systems.
- Colour LCD, IP65 protection, suitable for indoor and outdoor installation
- Nominal power 10000W | RS485 / WiFi / CAN
- Battery voltage range 40–60V (48V nominal) | lead-acid or lithium
- Max charge/discharge current 210A | max charge/discharge power 10000W
- Max PV input power 16000W | DC input range 100–600V | nominal 360V | full-power MPPT range 210–500V
- 3 MPPTs (2/1/1 strings) | max DC input current 25A/15A/15A
- Peak power 14kW for 10 minutes / 16kW for 5 minutes / 20kW for 500ms
- Plug and play, seamless switching under 20ms | separate generator interface
- Advanced parallel operation up to 120kW, host inverter automatically assigned
- MPPT efficiency 99.9% | max efficiency 97.5% | EU efficiency 96.5%
- Anti-islanding protection, DC switch, SPD protection | AFCI and RSD optional
- Fan cooling | operating temperature −25 to 60°C
- Size 650 × 440 × 220mm | weight 40kg
- Warranty: 5 years
Official Product Page: Luxpower
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
