Description

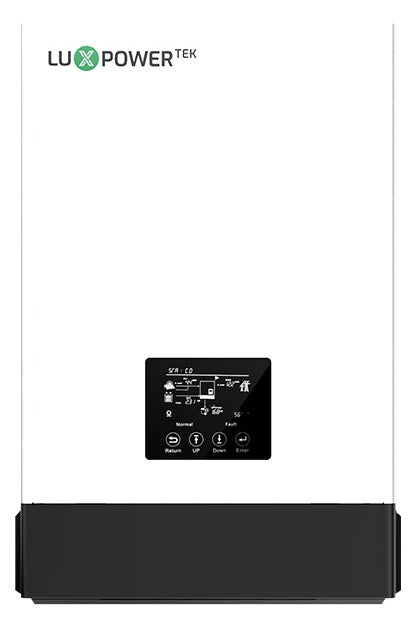

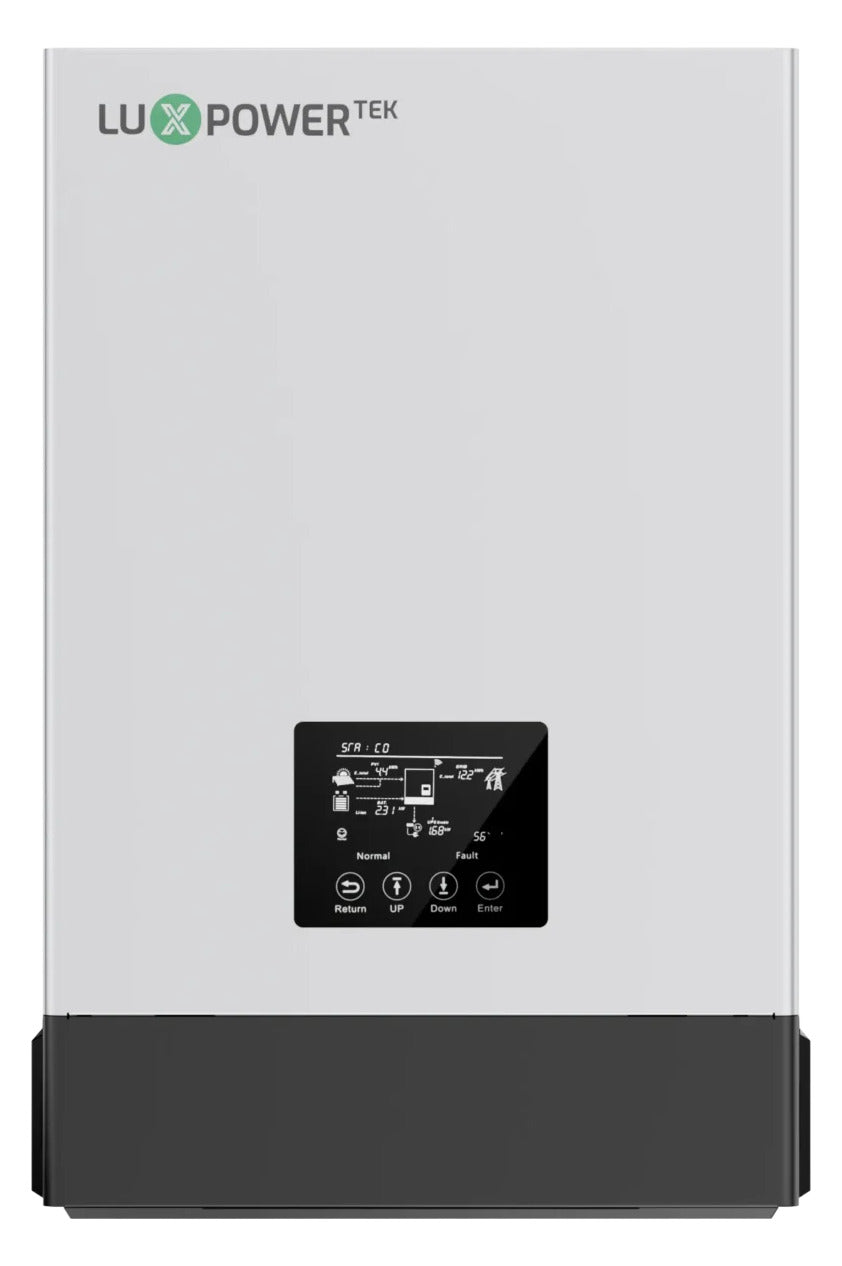

The Luxpower SNA6000 WPV is a 6kW single phase low-voltage (48V) ECO hybrid off-grid inverter with a wide PV voltage range, designed for homes and small businesses in South Africa. Supplied with a WiFi dongle.
- LCD + LED display, IP20 protection, indoor installation only
- Rated output power 6000W | rated output current 26.5A | 230V pure sine wave
- Battery 48V (range 38.4–60V) | lithium-ion or lead-acid | recommended battery capacity >200Ah | RS485 / WiFi / CAN
- Max charge/discharge current 140A | max charge/discharge power 6000W
- Max PV array power 9000W (4500/4500) | PV input range 100–480V | start-up 100V
- 2 MPPTs | MPPT range 120–385V | 17A per MPPT
- Max AC input power 9000W | max continuous AC passthrough 40A
- Off-grid seamless switch: <15ms single, <30ms parallel | surge power 2× rated for <2s
- Single-phase or unbalanced three-phase systems | up to 16 units in parallel with automatic primary unit assignment
- Separate generator port
- PV and grid can wake up the battery
- Max efficiency 93.0% | MPPT efficiency 99.9%
- Smart cooling | noise <50dB | operating temperature 0 to 50°C
- Standards include IEC 62109-1, IEC 62040, NRS 097-2-1
- Size 330 × 505 × 135mm | weight 14.5kg
- Warranty: 2.5 years
Official Product Page: Luxpower SNA 3-6K
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
