Description

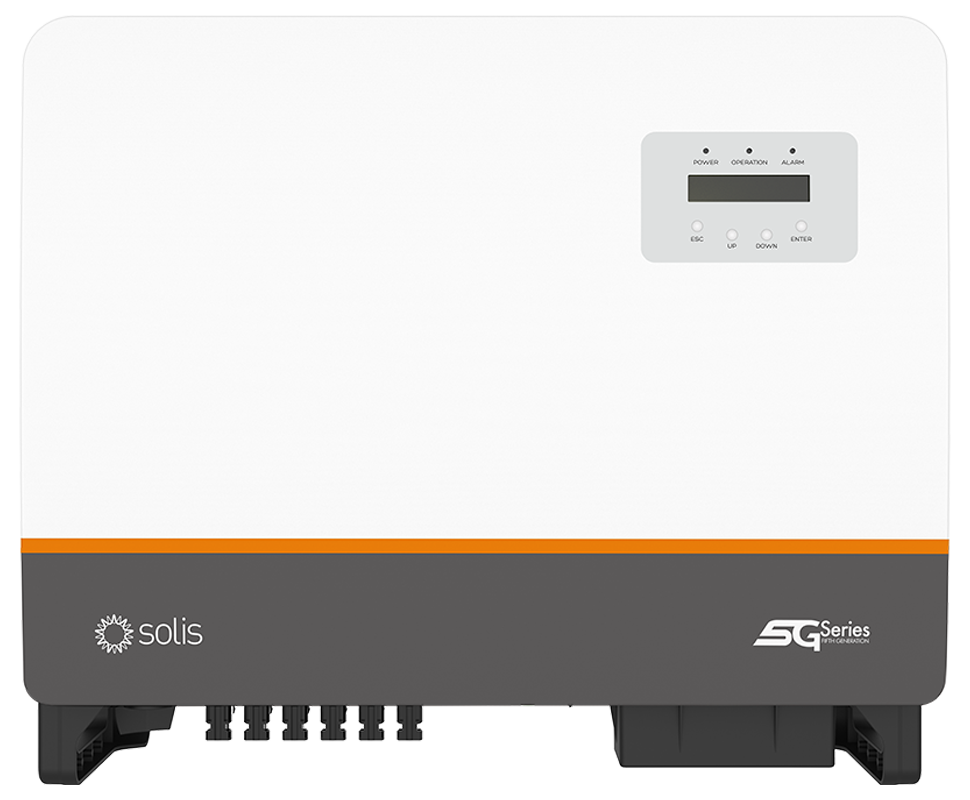

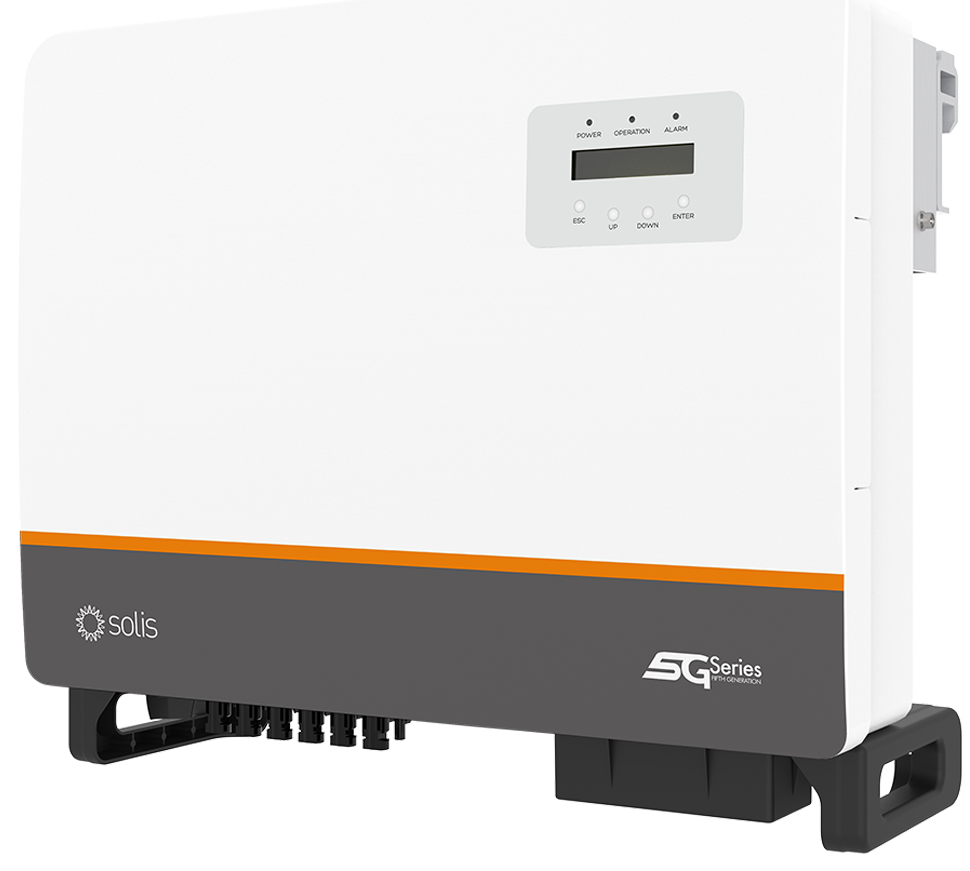

The Solis S5-GC40K is a 40kW three-phase grid-tied string inverter from the Solis S5-GC(25-40)K series, for commercial rooftop and ground-mount PV.
Key specifications
- Rated output 40kW; max. apparent power 44kVA
- 4 MPPT / 8 strings, 4 × 32A input current
- Max. DC input voltage 1100V; MPPT range 200–1000V; recommended max. PV 60kW
- Max. efficiency 98.7%; EU efficiency 98.3%

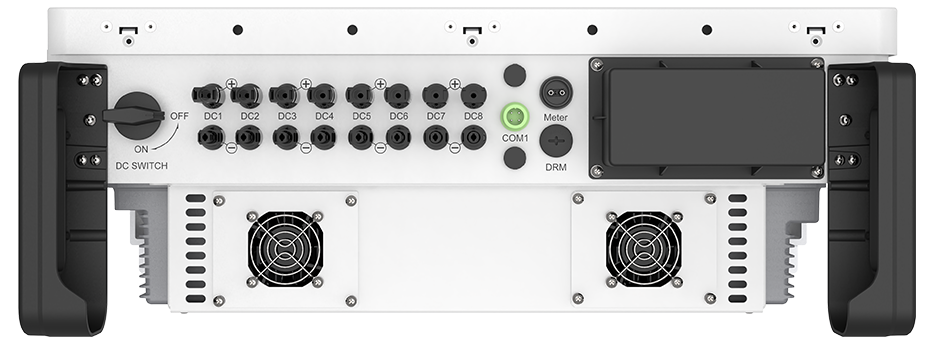

- Integrated DC switch, DC/AC Type II surge protection, string monitoring and I/V curve scan
- IP66 protection, suitable for indoor and outdoor installation; −25 to +60°C; intelligent fan cooling; ≤60dB(A)
- 647 × 629 × 252mm; 42.1kg
- RS485; optional Wi-Fi/GPRS logger; NRS 097-2-1 listed
Official source: Official product page (Solis South Africa)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
Official Datasheet: Solis S5-GC(25-40)K Datasheet
