Description
The Solis S6-EH1P16K03-NV-YD-L is a 16kW single-phase low-voltage hybrid inverter from the S6-EH1P(12-18)K03-NV-YD-L Solarator series, designed for residential and light commercial solar and battery systems in South Africa.

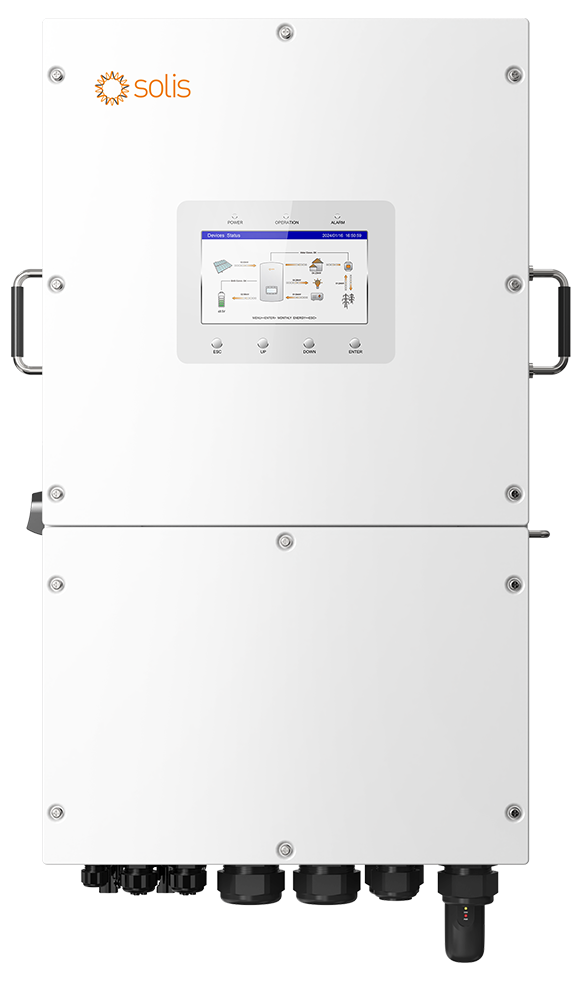

- 7.0" LCD display with Bluetooth + App | IP66 protection, suitable for indoor and outdoor installation
- Rated AC output: 16 kW | Max apparent power: 16 kVA | L/N/PE, 220/230 V, 50 Hz
- Battery Li-ion / lead-acid | 40–60 V | Max charge/discharge 290 A | CAN / RS485 BMS
- Recommended max PV array 32 kW | Max usable PV input 25.6 kW | Max PV voltage 550 V
- 3 MPPTs / 6 strings | Max input current 40 A / 40 A / 40 A | Max current per DC input 20 A | MPPT range 80–520 V
- Backup: 2× rated power for 10 s | Switch time < 10 ms | Max AC passthrough 90 A
- Generator connectivity with automatic On/Off control | Max generator input 16 kW
- Parallel up to 6 units | Smart load management | PV-only off-grid operation supported
- Supports existing PV grid-tied connection for export control and off-grid use
- Max efficiency 97.6% | EU efficiency 97.0% | Intelligent redundant fan cooling | Noise < 65 dB(A)
- Dimensions 459 × 845 × 313 mm | Weight 55.5 kg | Self-consumption < 40 W

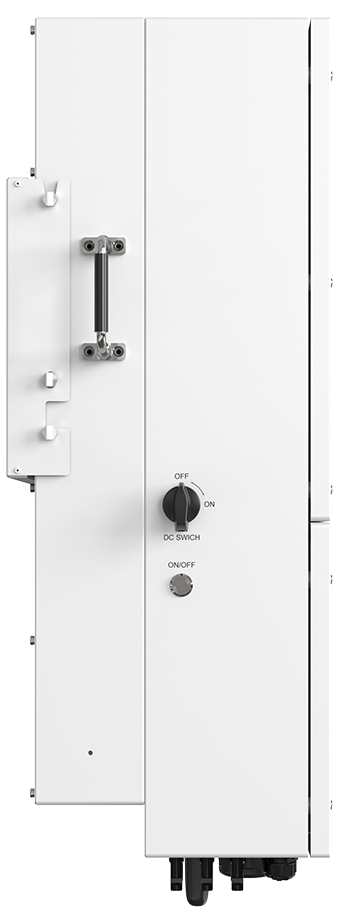

- Integrated PV switch | DC reverse-polarity protection (PV) | Optional AFCI 2.0
- NRS 097-2-1 grid connection standard | WIFI+LAN+Bluetooth standard
- Compatible with common 48 V LiFePO4 batteries (verify BMS map for Pylontech, Hubble and others)
-
Warranty: 10-year swap-out warranty (manufacturer standard for this model)
Official Datasheet: S6-EH1P(12-18)K03-NV-YD-L datasheet
Official Product Page: Solis S6-EH1P(9.9-18)K03-NV-YD-L
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
