Description

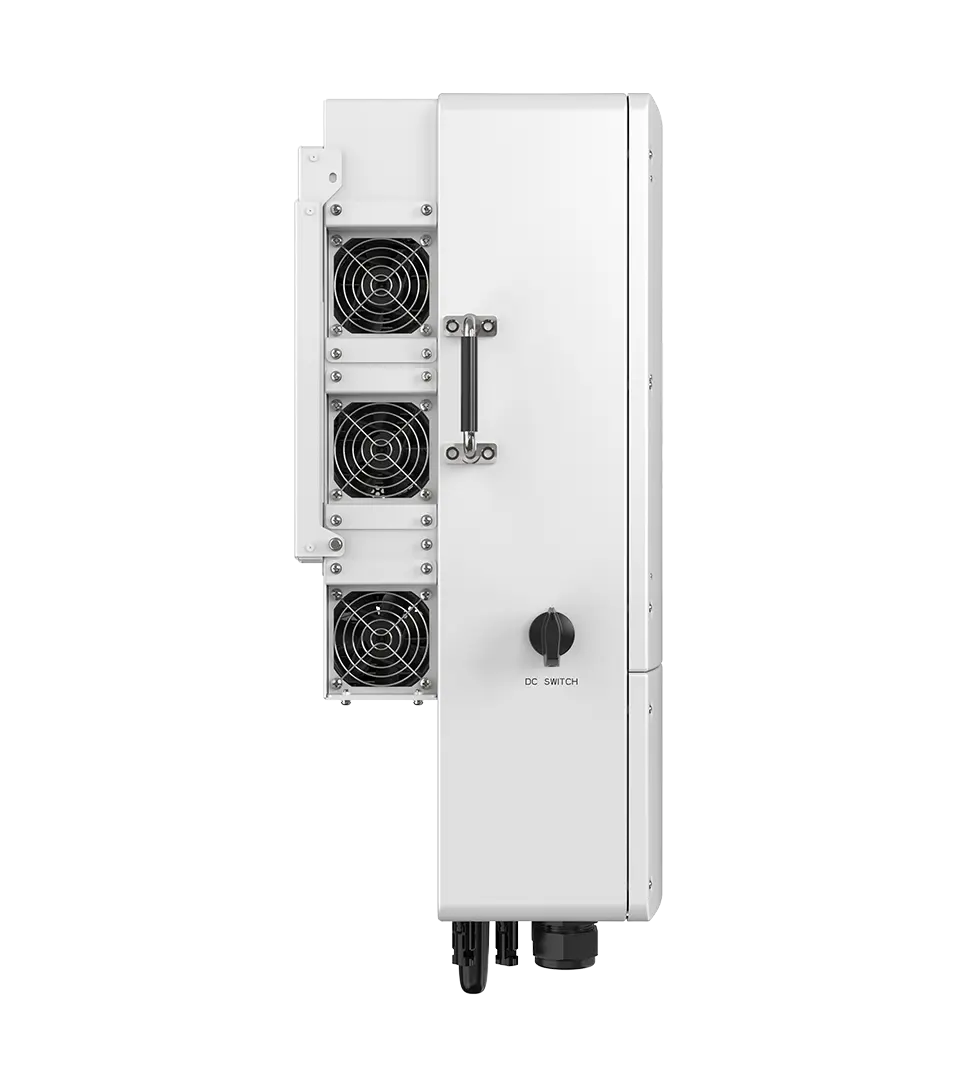

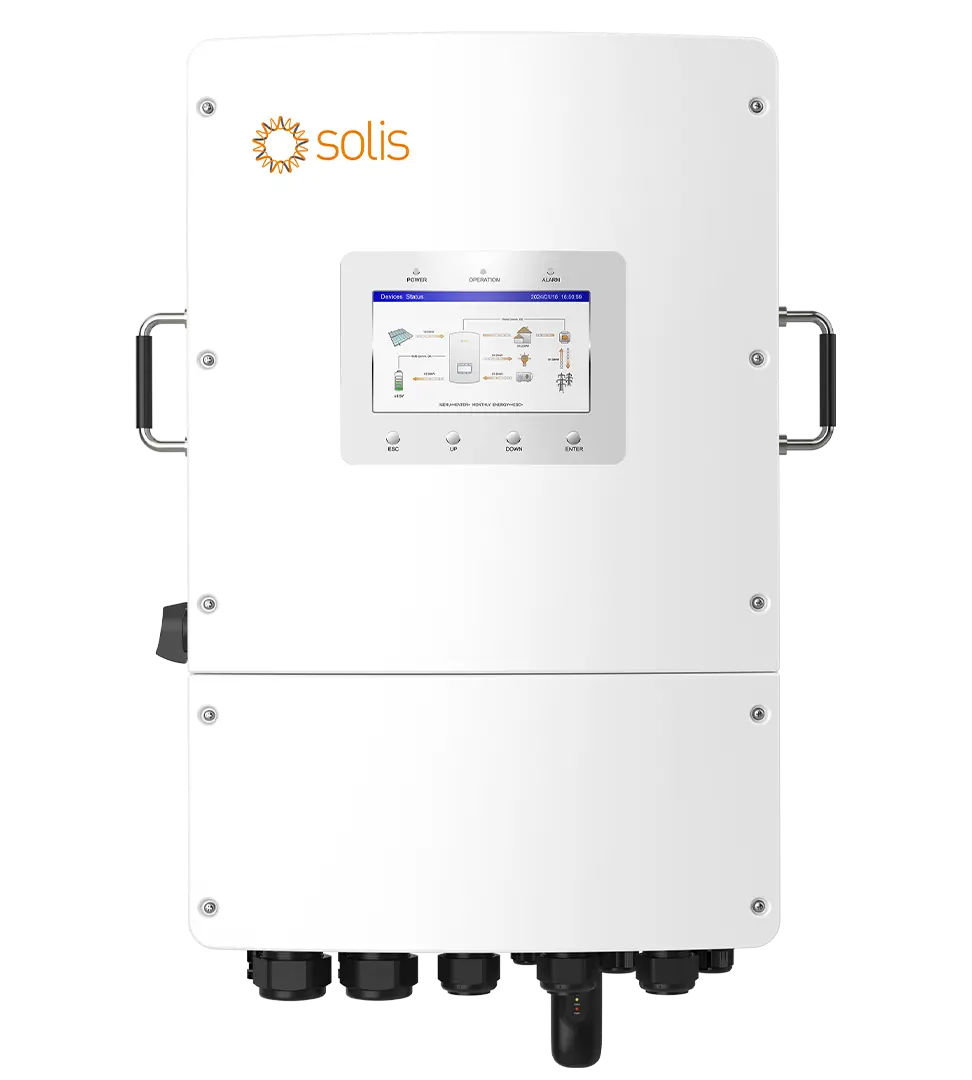

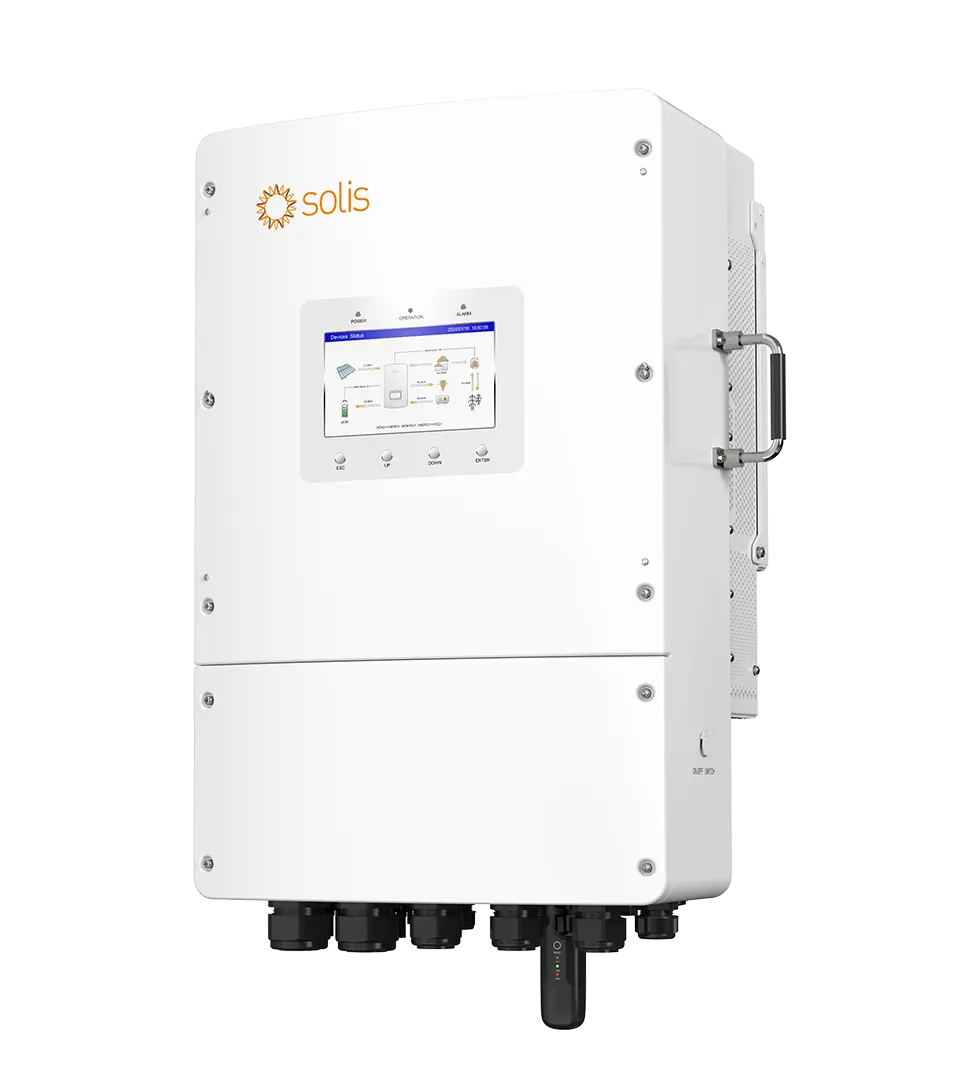

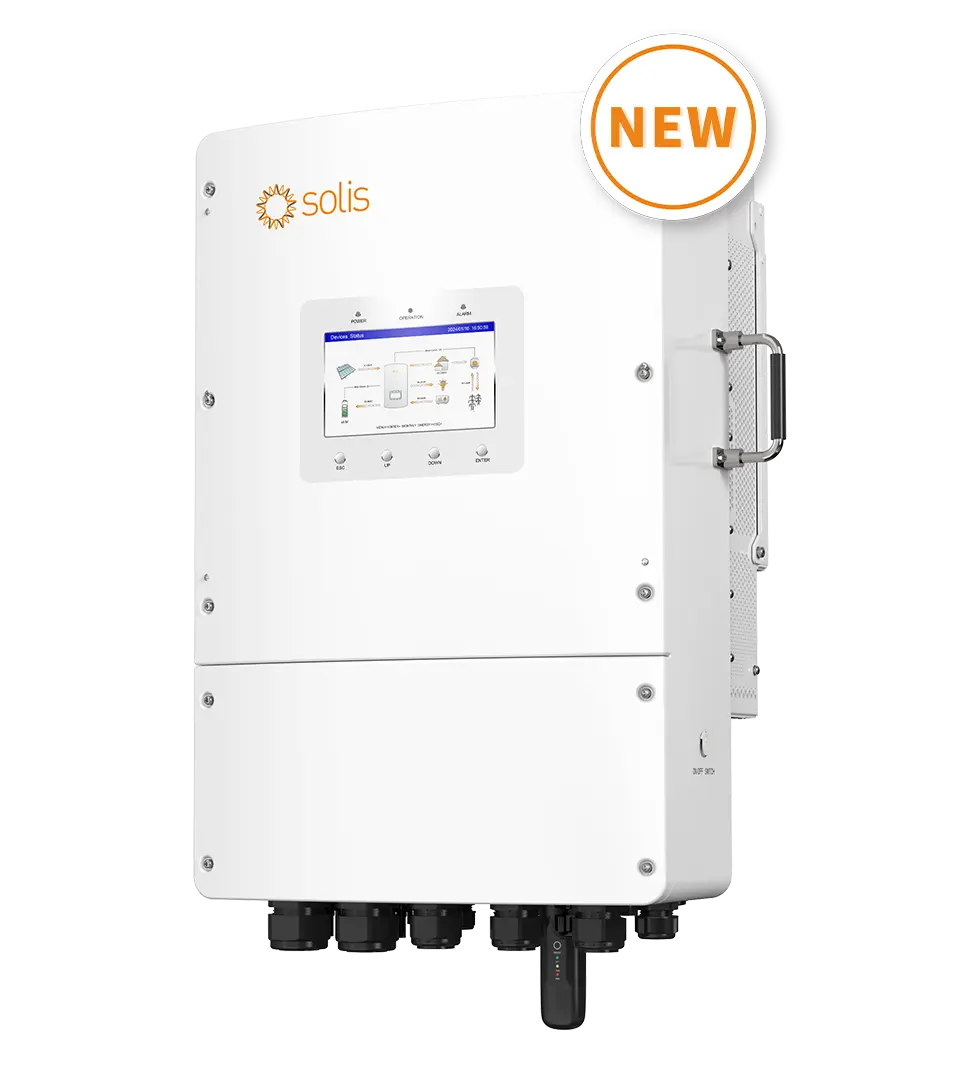

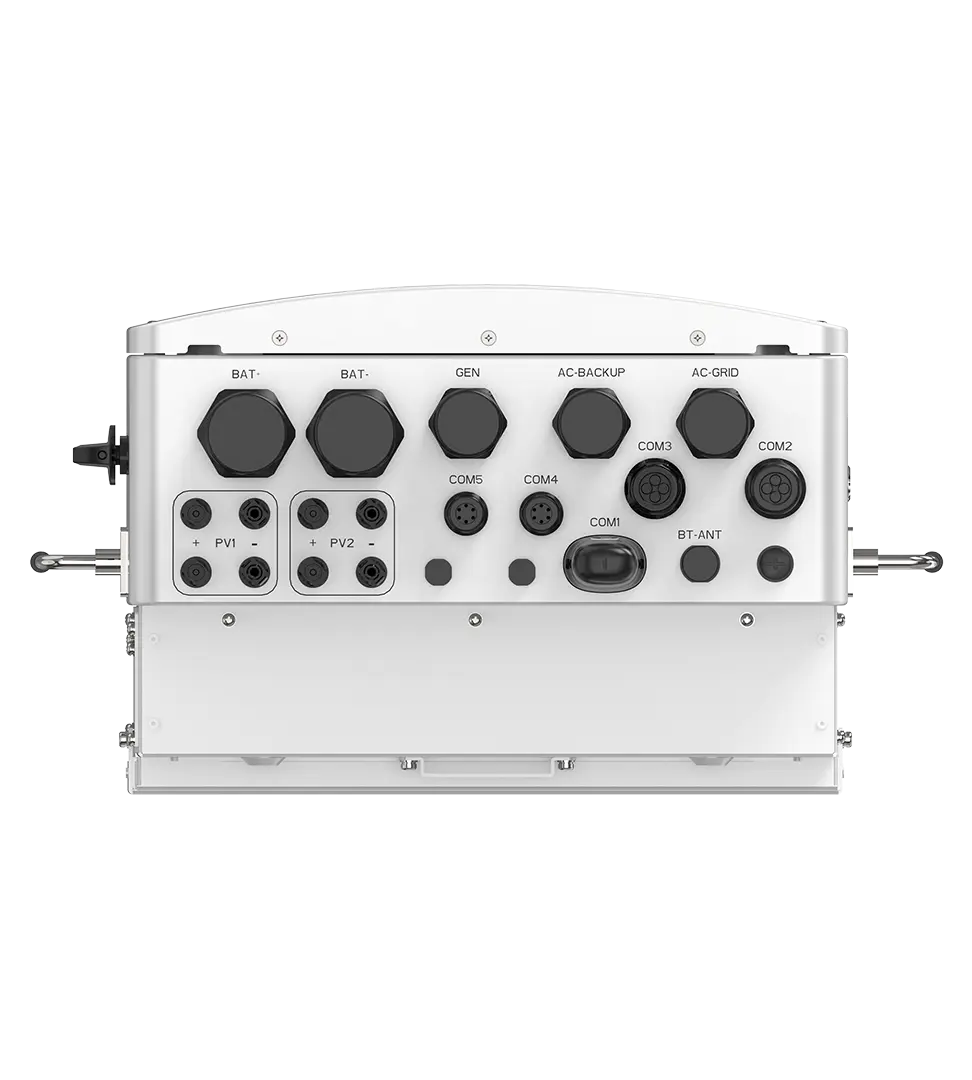

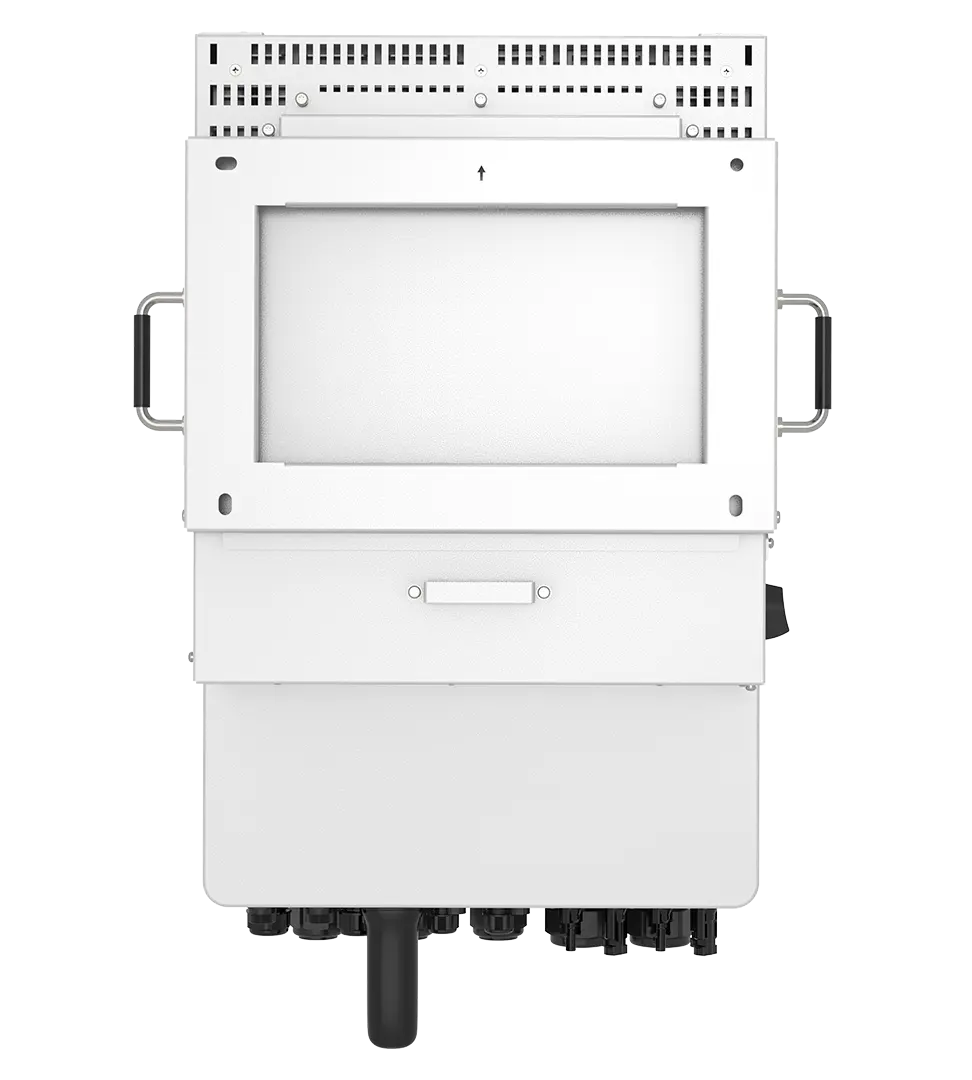

The Solis S6-EH3P18K02-NV-YD-L is an 18kW three-phase low-voltage hybrid inverter from the S6-EH3P(8-18)K02-NV-YD-L Solarator series, designed for residential and light commercial solar and battery systems in South Africa.
- 7.0" LCD display with Bluetooth + App | IP66 protection, suitable for indoor and outdoor installation
- Rated AC output: 18 kW | 3/N/PE, 220/380 V or 230/400 V, 50/60 Hz | Rated output current 27.3 A / 26.1 A
- Battery Li-ion / lead-acid | 40–60 V | Max charge/discharge 320 A total (2 ports, 175 A each) | CAN / RS485 BMS
- Recommended max PV array 36 kW | Max usable PV input 28.8 kW | Max PV voltage 1000 V
- 2 MPPTs / 4 strings | Max input current 42 A / 42 A | MPPT range 200–850 V
- Backup: 2× rated power for 10 s | Switch time < 10 ms | Max continuous AC passthrough 50 A
- Max power per phase 40% of rated power | Generator and smart load support
- Max efficiency 97.5% | EU efficiency 97.0% | Intelligent fan cooling | Noise < 65 dB(A)
- Dimensions 430 × 660 × 305 mm | Weight 42 kg | Self-consumption (night) < 30 W
- Integrated DC switch | DC reverse-polarity protection | Optional AFCI 2.0
- NRS 097-2-1 grid connection standard
- Compatible with common 48 V LiFePO4 batteries (verify BMS map)
-
Warranty: 5-year standard Solis warranty (manufacturer standard for this model)
Official Datasheet: S6-EH3P(8-18)K02-NV-YD-L datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
