Description

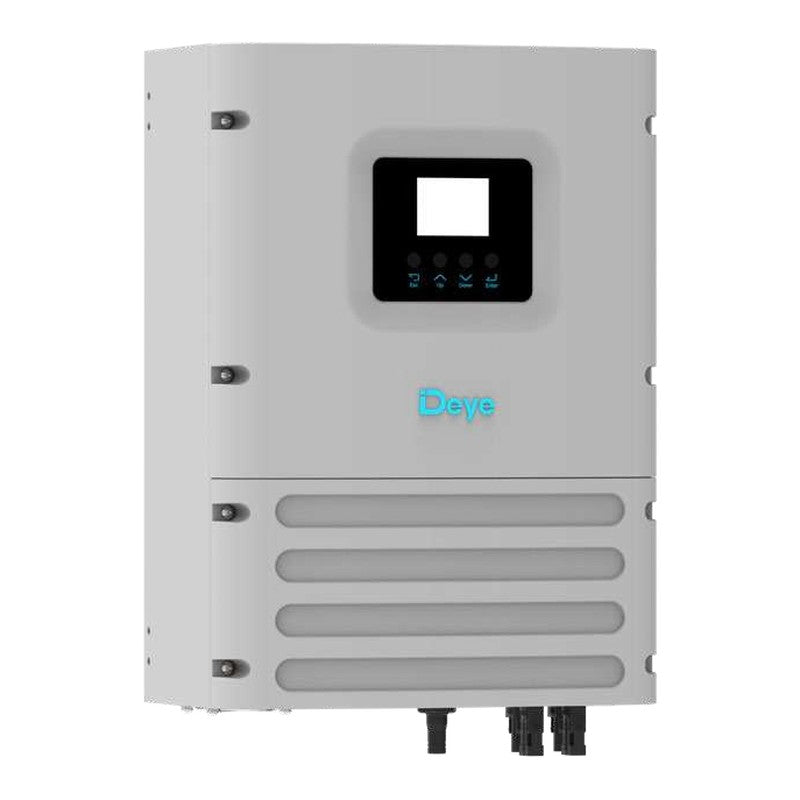

The Deye SUN-6K-OG01LP1-EU-AM2 is a compact 6kW single-phase off-grid inverter in an IP65 enclosure, designed for 48V battery systems. It has two built-in solar MPPT trackers and a grid/generator input, making it a cost-effective choice for homes, farms and remote sites.
- 6kW pure sine wave 230V output with 2× peak power (12kW) for 10 seconds
- Dual MPPT solar charger: up to 12000W PV access, 500V max PV, 150 – 425V MPPT range (18A + 18A)
- Works with 48V lithium and lead-acid batteries, up to 135A charge and discharge
- 35A grid / generator input
- IP65 enclosure rated for -40 to +60°C – suitable for outdoor installation
- Up to 16 units in parallel (off-grid)
- RS485, CAN, Wi-Fi and Bluetooth for battery communication and app monitoring
- 97.6% maximum efficiency
Specifications
| Model |
SUN-6K-OG01LP1-EU-AM2 |
| Rated / max. AC output power |
6000W |
| Max. AC output current |
26.1A |
| Peak power |
2× rated (12000W), 10s |
| Output voltage |
230V, pure sine wave, L+N+PE |
| Battery type |
Lead-acid or lithium-ion (self-adaption to BMS) |
| Battery voltage range |
40 – 60V (48V nominal) |
| Max. charge / discharge current |
135A / 135A |
| Max. PV access / input power |
12000W / 9600W |
| MPP trackers |
2 (1 string each), 18A + 18A |
| Max. short-circuit current |
27A + 27A |
| Max. PV voltage / MPPT range |
500V / 150 – 425V |
| Start-up voltage |
125V |
| Grid / generator input current |
35A / 35A |
| Max. input power to battery (AC) |
6000W |
| Max. / Euro efficiency |
97.6% / 96.5% |
| Communication |
Wi-Fi, RS485, CAN, Bluetooth |
| Ingress protection |
IP65 |
| Operating temperature |
-40 to +60°C (derating above 45°C) |
| Noise |
<55dB |
| Dimensions (W×H×D) |
306 × 427.5 × 175.8mm |
| Weight |
12.65kg |
| Warranty |
5 years |
Official Datasheet: Deye SUN-6K-OG01LP1 Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
