Description

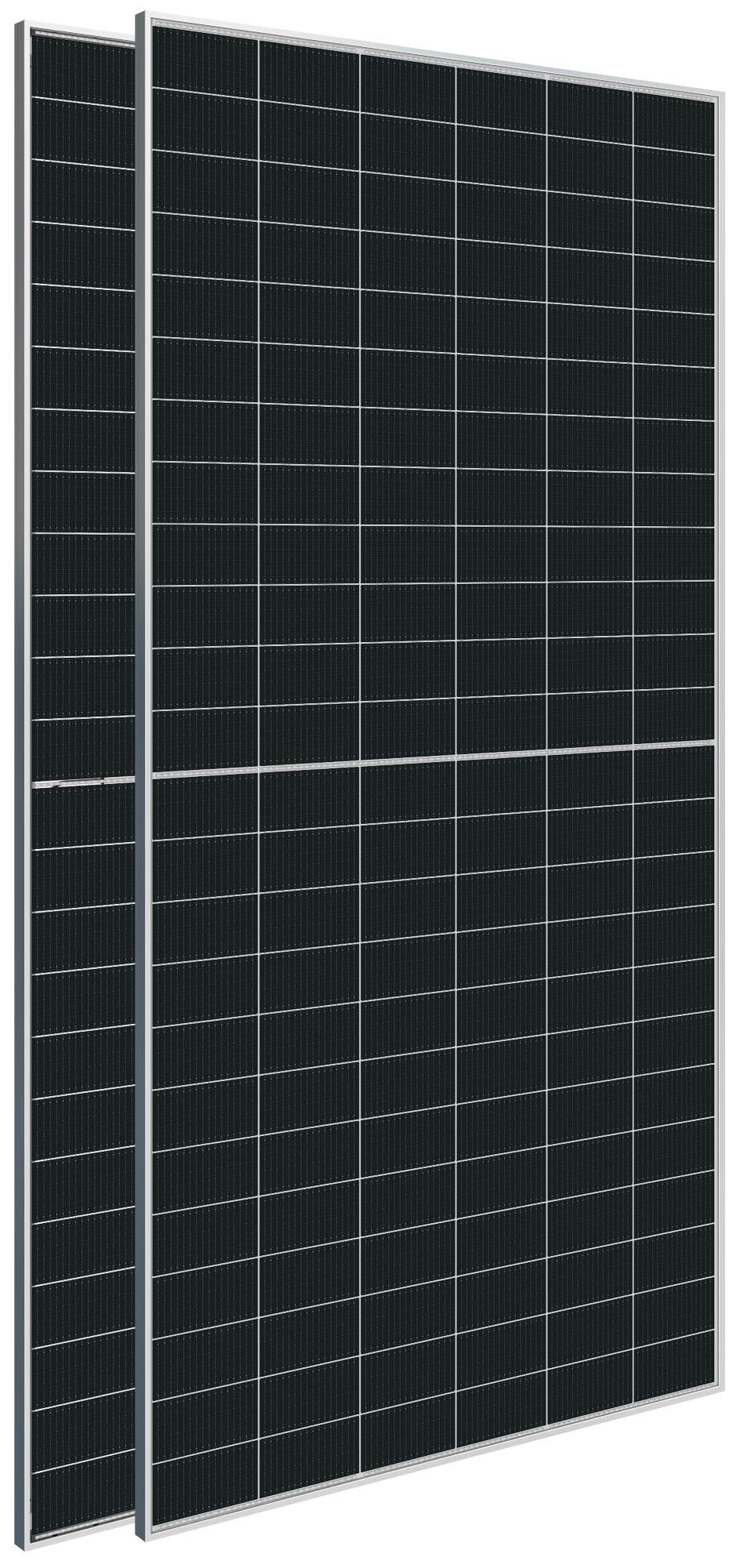

The Astronergy CHSM72N(DG)/F-BH-580 is a 580W n-type TOPCon half-cut bifacial dual-glass module from the Astronergy ASTRO N5 CHSM72N(DG)/F-BH series (570–590W).
Key specifications
- Rated power (Pmax) 580W; power sorting 0~+3%; module efficiency 22.45%
- Voc 51.30V | Isc 14.28A | Vmp 43.11V | Imp 13.45A (STC)
- 144 n-type mono-crystalline cells (6 × 24), TOPCon half-cut
- 2.0 + 2.0mm front/back glass | Silver anodised aluminium frame
- Temperature coefficients: Pmax -0.29%/°C | Voc -0.25%/°C | Isc +0.043%/°C
- Max. system voltage 1500V DC | Max. series fuse 30A | IP68 protection, suitable for indoor and outdoor installation junction box, 3 diodes
- Max. test load 5400Pa front / 2400Pa back
- 2278 × 1134 × 30mm | 32.1kg
Warranty: 15-year product, 30-year linear power.
Official source: Official datasheet (Astronergy)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
