Description

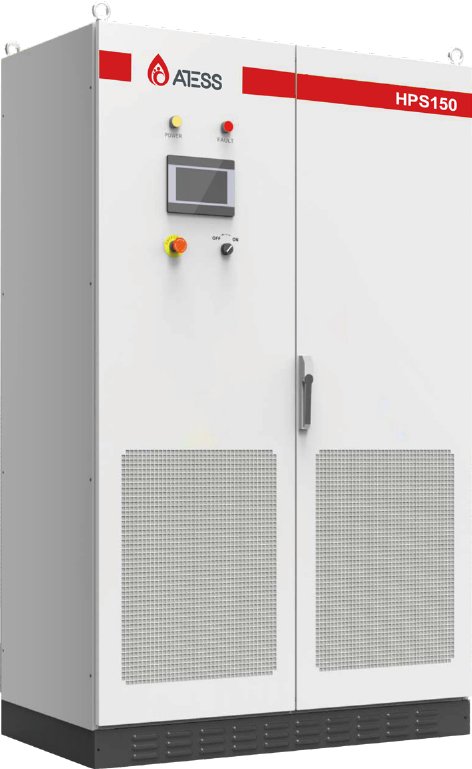

The ATESS HPS150 is a 150kW three-phase all-in-one hybrid inverter with a built-in isolation transformer, from the ATESS HPS series, designed for commercial, industrial and off-grid solar and battery systems in South Africa.
- Touch screen LCD, IP20 protection, indoor installation only
- Rated power (on-grid and off-grid): 150kW | Apparent power: 165kVA | 400V three-phase (3/N/PE), 217A rated current
- AC input capacity: 240kVA | Overload: 110% for 10 min, 120% for 1 min
- Battery voltage range: 352-600V (500-600V at max charge power)
- Max charge power: 225kW | Max discharge power: 165kW
- Max charge current: 450A | Max discharge current: 467A
- Max PV power: 225kWp | Max PV open-circuit voltage: 1000V DC
- PV MPPT voltage range: 480-800V DC (MPPT voltage should be 50-200V above max battery voltage)
- Seamless automatic on/off-grid transfer within 10ms
- Up to 8 units in parallel (on- and off-grid), supporting up to 600kW system capacity
- Programmable working modes | Remote control of diesel generator
- Built-in transformer | Type II lightning protection
- THDI <3% | THDU ≤2% (linear) | PF 0.8 lagging to 0.8 leading
- Forced-air cooling | Noise <65dB(A) @1m | Standby consumption <30W
- Operating temperature -25°C to +55°C | Max altitude 6000m (derate above 3000m)
- Communication: RS485/CAN | Dimensions (W/H/D): 1200/1900/800mm | Weight: 1230kg
- NRS 097-2-1:2017, CE, IEC 62109-1/2, EN 50549-1 | 5-year manufacturer warranty
Official Datasheet: ATESS HPS30/50/100/120/150 Datasheet
Official Product Page: ATESS HPS Series
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
