Description

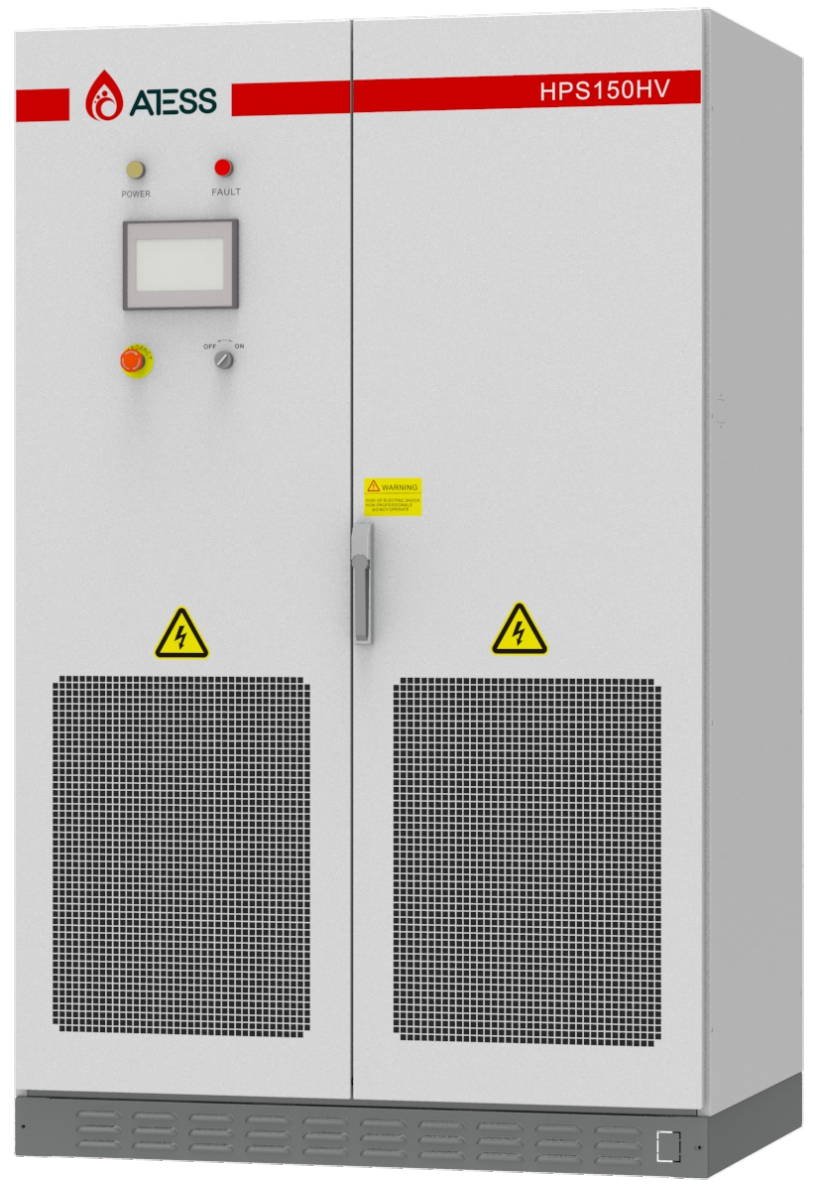

The ATESS HPS150HV is a 150kW three-phase high-voltage all-in-one hybrid inverter with 1500V PV input and a built-in isolation transformer, from the ATESS HPS HV series, designed for commercial, industrial and off-grid solar and battery systems in South Africa.
- Touch screen LCD, IP20 protection, indoor installation only
- Rated AC power: 150kW | Max AC output: 165kVA | 400V three-phase, 217A rated current
- Max AC input power: 240kVA | Overload: 110% for 10 min, 120% for 1 min
- Battery operating voltage range: 600-900V
- Max battery charge/discharge power: 225kW / 165kW
- Max battery charge/discharge current: 280A / 275A
- PV rated power: 165kW | Max PV power: 225kW
- Max PV open-circuit voltage: 1500V | PV MPPT voltage range: 900-1300V
- 2 PV inputs, max PV input current 2 x 100A
- Built-in isolation transformer (150kVA, Dyn11) | Isolated topology
- THDI <3% | THDU ≤2% | PF 0.8 lagging to 0.8 leading
- Demand response modes DRM0-8 (optional)
- Intelligent air cooling | Noise <65dB(A) @1m
- Operating temperature -25°C to +55°C | Humidity 0-95% non-condensing | Max altitude 6000m (derate above 3000m)
- Communication: RS485/CAN
- Dimensions (W/H/D): 1200/1900/800mm | Weight: 1230kg
- 5-year manufacturer warranty
Official Datasheet: ATESS HPS100HV/150HV Datasheet
Official Product Page: ATESS HPS100/150HV
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
