Description

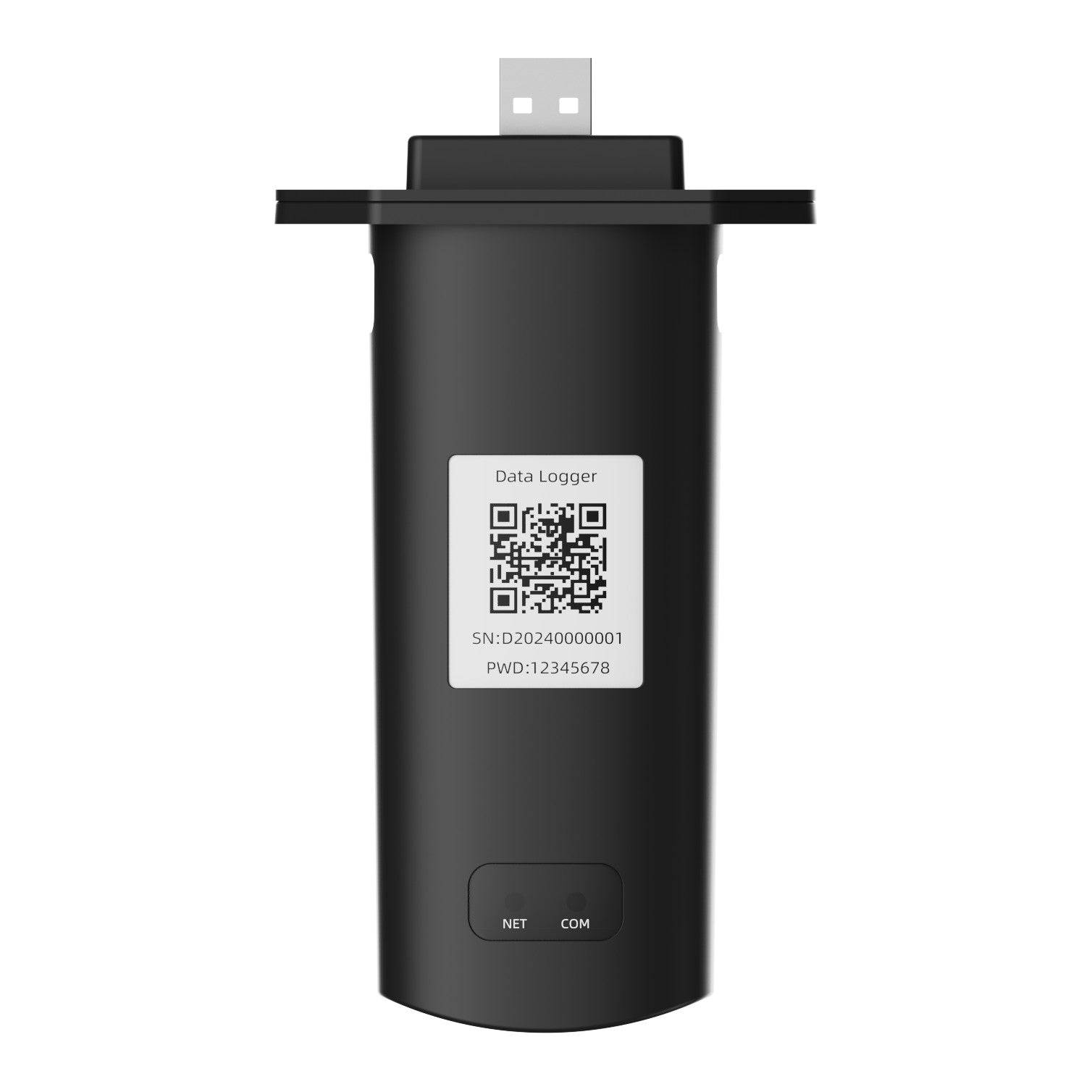

The Deye DL1000B-WIFI is a plug-in Wi-Fi data logger for Deye inverters. It connects to the inverter's USB port and sends live system data to the Deye Cloud app and web portal, while Bluetooth 5.3 allows quick local commissioning from a phone.
- Wi-Fi (2.4GHz) connection to Deye Cloud for remote monitoring
- Bluetooth 5.3 for local setup and configuration
- Plug-and-play USB connection, powered by the inverter (5V DC, 1.5W)
- Local and remote OTA firmware upgrades
- Data back-filling after network outages; 1-minute default logging interval
- IP65-rated housing, -40 to +65°C operating range
Specifications (DL1000B-WIFI)
| Model |
DL1000B-WIFI |
| Wi-Fi |
802.11b/g/n, 2400 – 2500MHz, onboard antenna |
| Bluetooth |
BLE 5.3 |
| Data interface |
USB |
| Power supply |
5V DC, 1.5W |
| Data collection interval |
1 minute default (1 – 30 min optional) |
| Configuration |
AT command / local web page / remote server |
| OTA |
Local and remote |
| Operating temperature |
-40 to +65°C |
| Operating humidity |
10 – 90% (non-condensing) |
| Ingress protection |
IP65 |
| Dimensions (W × D × H) |
116.6 × 70.5 × 30.5mm |
Official Datasheet: Deye DL1000B-WIFI Datasheet
Available on backorder – please contact us for lead time.
