Description

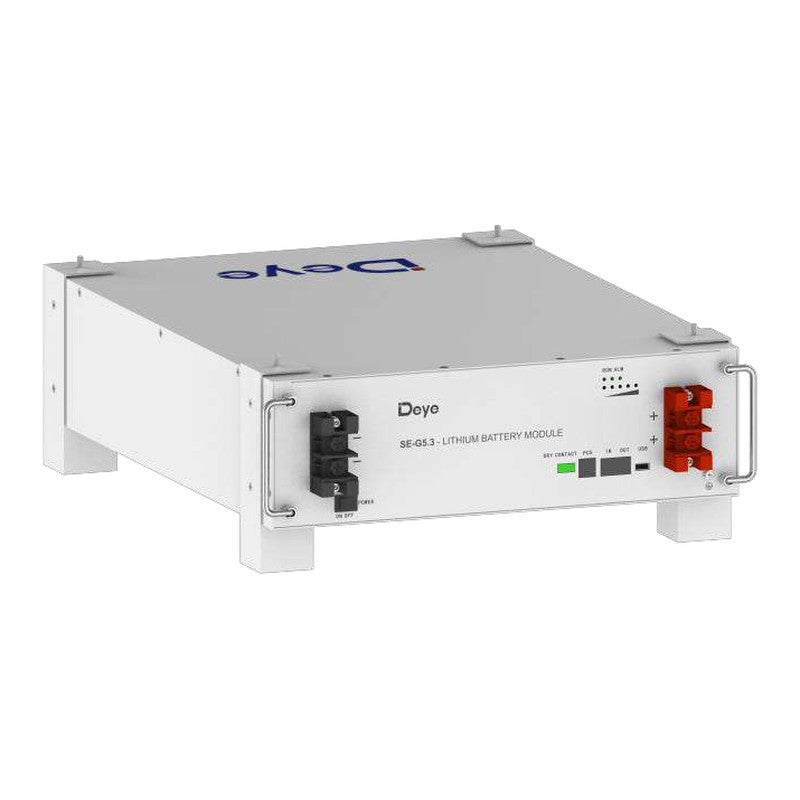

The Deye SE-G5.3 is a 5.32kWh, 51.2V LiFePO4 battery in a 19-inch rack format that can also be floor or wall mounted. It integrates closely with Deye low-voltage hybrid inverters and scales up to 64 units in parallel.
- 5.32kWh (104Ah at 51.2V) LiFePO4, 4.79kWh usable
- 50A recommended / 100A max continuous, 150A peak
- 90% depth of discharge and ≥6000 cycles

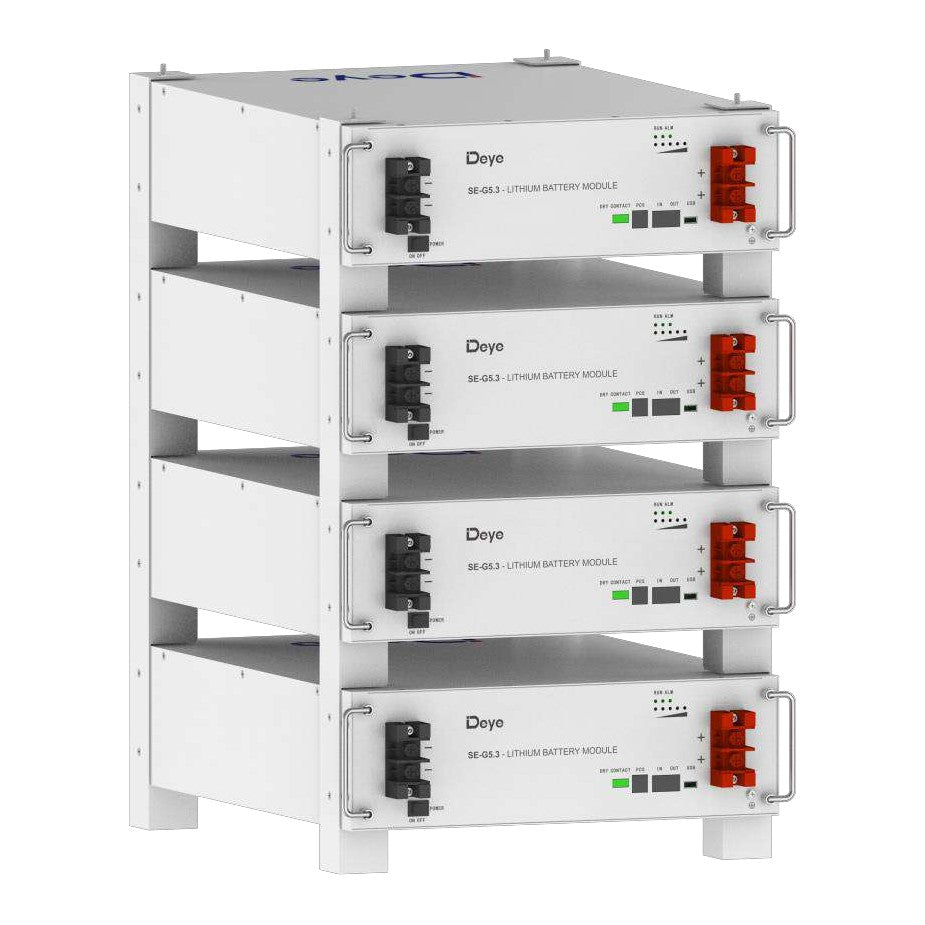

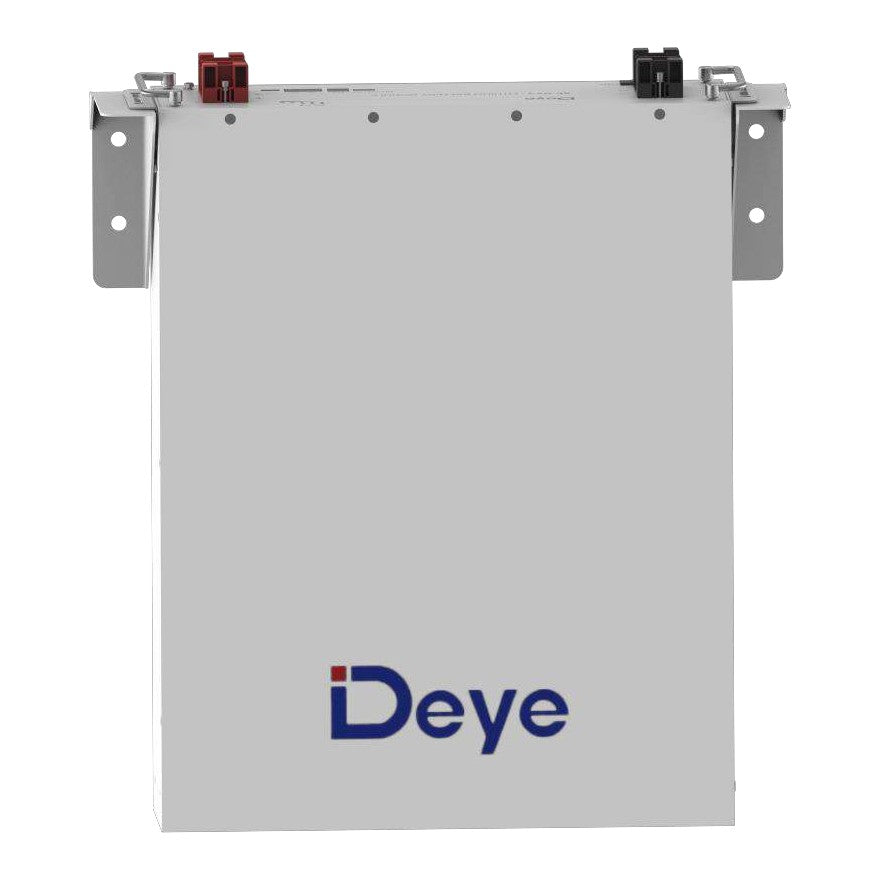

- 19-inch rack, floor or wall mounting
- Up to 64 units in parallel (340kWh)
- CAN / RS485 communication
- 10-year warranty
Specifications (SE-G5.3)
| Battery type |
LiFePO4 |
| Nominal energy |
5.32kWh |
| Usable energy |
4.79kWh |
| Nominal capacity |
104Ah |
| Nominal voltage |
51.2V |
| Charge/discharge current |
50A recommended / 100A max |
| Peak current |
150A |
| Depth of discharge |
90% |
| Cycle life |
≥6000 |
| Parallel |
Up to 64 units (340kWh) |
| Communication |
CAN / RS485 |
| Ingress protection |
IP20 |
| Dimensions |
440 × 133 × 560mm |
| Weight |
44kg |
| Certifications |
CE, IEC 62619, UN38.3 |
| Warranty |
10 years |
Official Datasheet: Deye SE-G5.3 Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
