Description

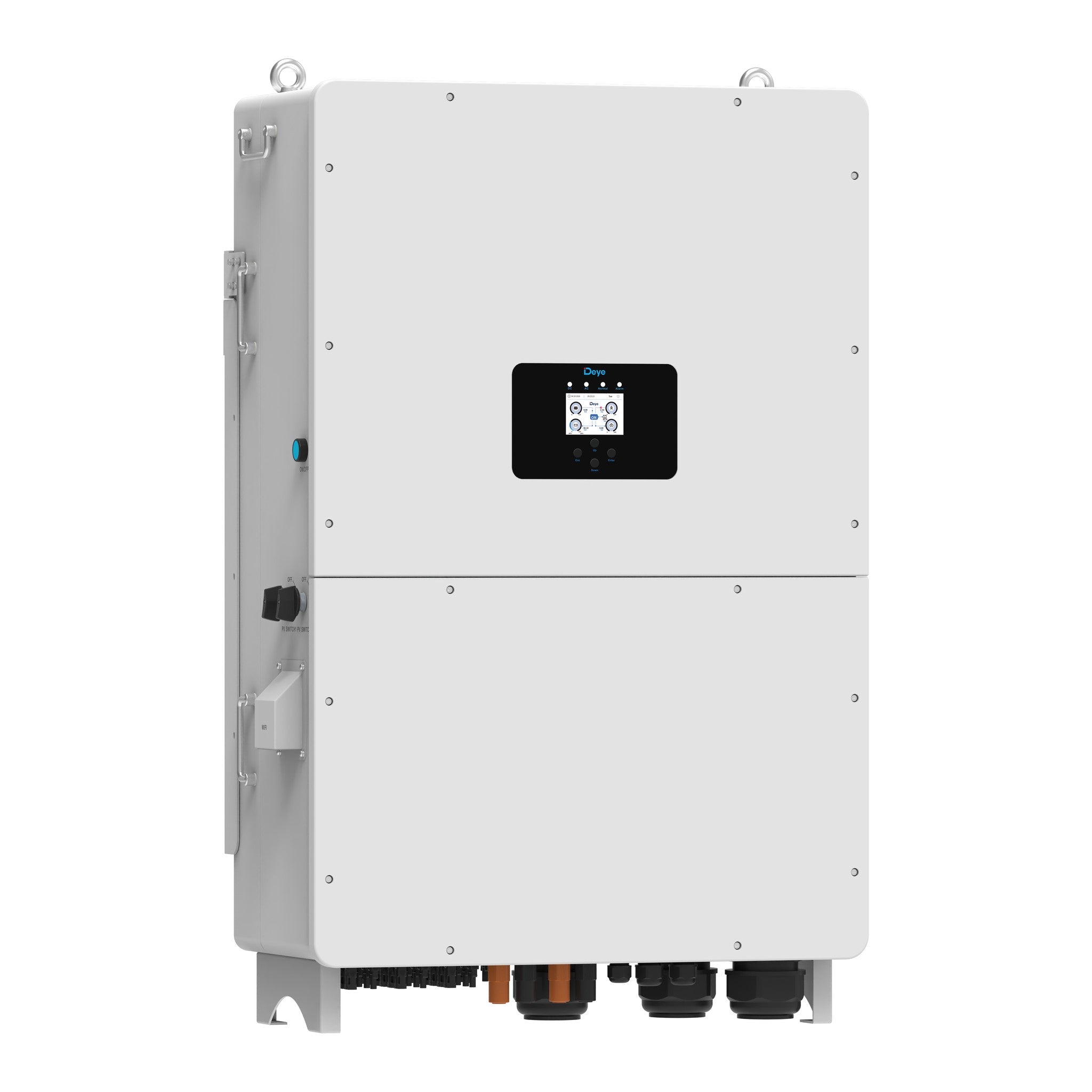

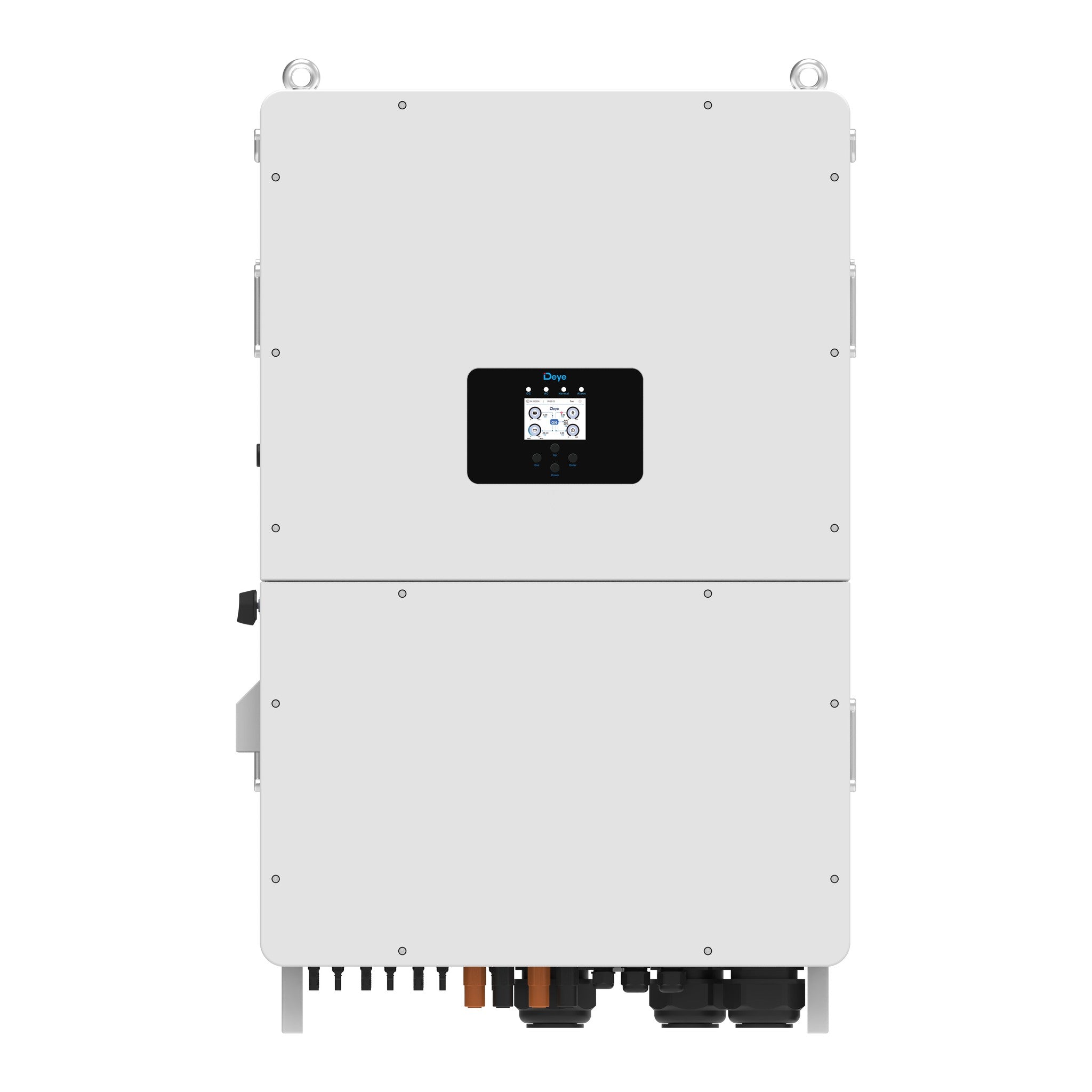

The Deye SUN-125K-SG02HP3-EU-GM10 is a 125kW three-phase hybrid inverter for commercial and industrial sites. It combines 10 MPP trackers, two high-voltage battery inputs and a 250A grid-to-load passthrough in one IP65 unit, with backup and generator support.
- 125kW rated / 135kVA maximum AC output
- Up to 250kW PV access (200kW max PV input), 1000V max PV voltage
- 10 MPP trackers with 42A per tracker
- Two battery inputs, 160 – 1000V, 100A + 100A charge/discharge
- 250A continuous grid-to-load passthrough; 1.5× peak power for 10s off-grid
- 98.7% max efficiency (98.1% Euro)
- IP65, intelligent air cooling, -40 to +60°C operation
Specifications (SUN-125K-SG02HP3-EU-GM10)
| Battery type |
Lithium-ion |
| Battery voltage range |
160 – 1000V |
| Max. charge / discharge current |
100A + 100A (2 inputs) |
| Max. PV access power |
250kW |
| Max. PV input power |
200kW |
| Max. PV input voltage |
1000V |
| Start-up voltage |
180V |
| MPPT voltage range |
150 – 850V |
| MPP trackers / strings |
10 / 2 per tracker |
| Max. PV current per MPPT |
42A (63A short-circuit) |
| Rated AC power |
125kW |
| Max. apparent power |
135kVA |
| Rated AC current |
189.4A / 181.2A |
| Max. continuous passthrough |
250A |
| Peak off-grid power |
1.5× rated, 10s |
| AC voltage |
220/380V, 230/400V, 3L+N+PE |
| Max. / Euro efficiency |
98.7% / 98.1% |
| Communication |
RS485, RS232, CAN; GPRS/Wi-Fi/Bluetooth/4G/LAN optional |
| Ingress protection |
IP65 |
| Dimensions (W × H × D) |
734 × 1091 × 344mm |
| Weight |
161.7kg |
| Warranty |
5 years (up to 10 years depending on country) |
Official Datasheet: Deye SUN-80–125K-SG02HP3 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
