Description

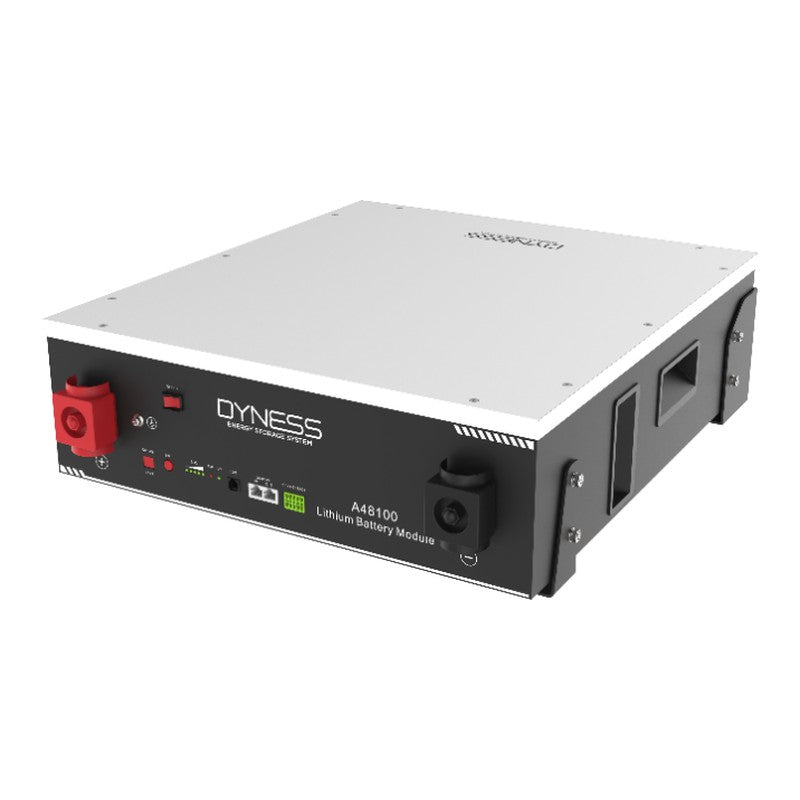

The Dyness A48100 is a 4.8kWh, 48V low-voltage lithium iron phosphate battery for residential and small commercial solar storage. It can be floor-standing or wall-mounted, scales up to 30 units in parallel and communicates with most leading hybrid inverters.
- 4.8kWh (100Ah at 48V) LiFePO4 – cobalt-free, thermally stable chemistry
- 50A recommended / 75A max continuous charge and discharge, 100A peak (15s)
- 90% depth of discharge and ≥6000 cycle life
- Up to 30 modules in parallel for larger systems
- CAN, RS485 and RS232 communication; OTA firmware upgrades
- Compatible with inverters from Deye, Sungrow, Victron, SMA, GoodWe, Solis, Voltronic, SAJ and Ingeteam
- Floor or wall mounting
Specifications (A48100)
| Battery type |
LiFePO4 |
| Nominal energy |
4.8kWh |
| Nominal capacity |
100Ah |
| Nominal voltage |
48V |
| Operating voltage |
42 – 54V |
| Charge/discharge current |
50A recommended / 75A max (0.5C) |
| Peak current |
100A (15s) |
| Depth of discharge |
90% |
| Cycle life |
≥6000 |
| Parallel |
Up to 30 units |
| Communication |
CAN / RS485 / RS232 |
| Operating temperature |
Charge 0 – 55°C / Discharge -20 – 55°C |
| Ingress protection |
IP20 (indoor) |
| Dimensions |
504 × 597 × 155mm |
| Weight |
45kg |
| Certifications |
UN38.3, CE-EMC, IEC 62619, IEC 60730, CEI 0-21, UKCA |
Official Datasheet: Dyness A48100 Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
