Description

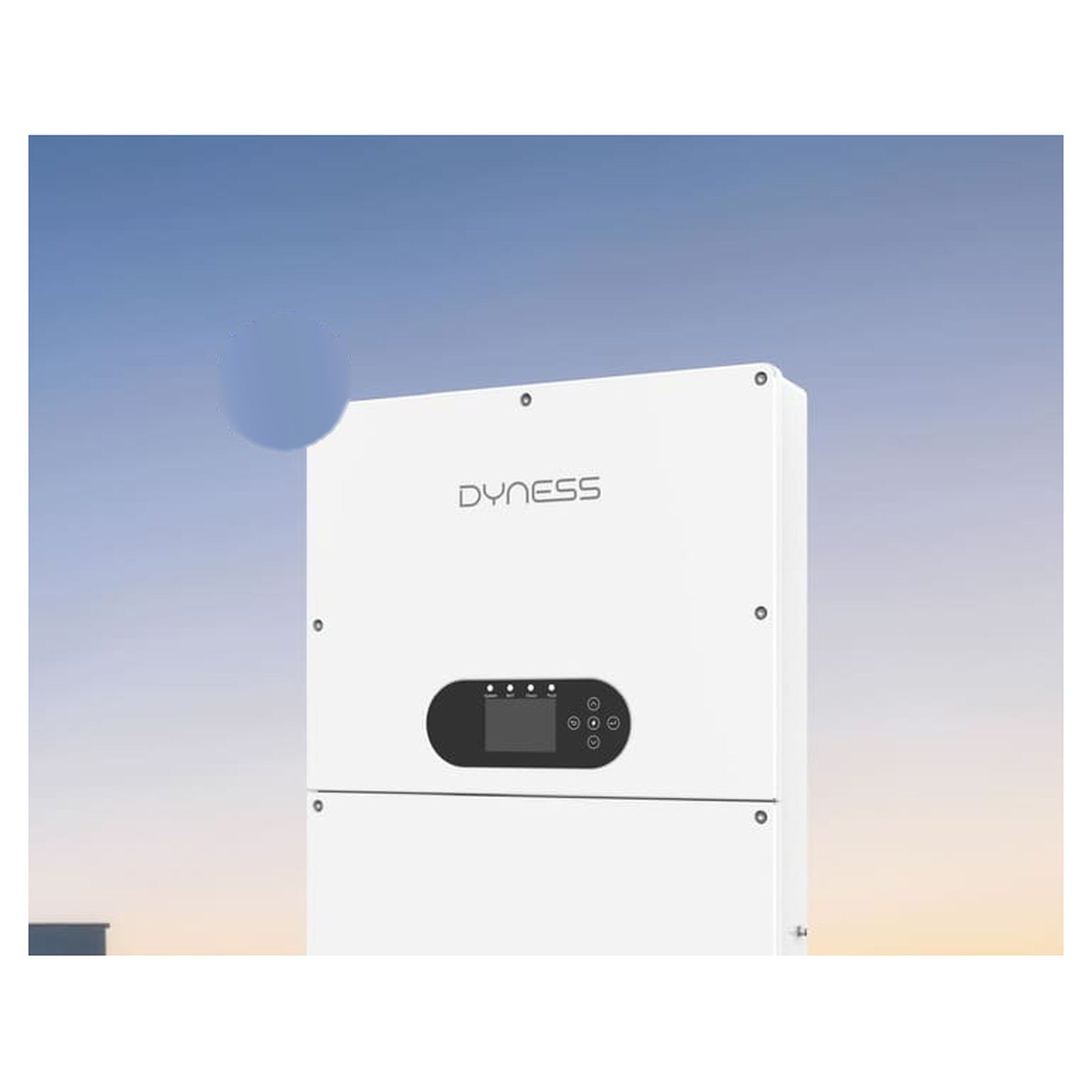

The Dyness D8.0K-LS is an 8kW single-phase low-voltage hybrid inverter from the Dyness LS series, designed for residential solar and battery systems in South Africa.
- IP66 wall-mounted enclosure suitable for indoor and outdoor installation | LED/LCD/APP
- Nominal power output to grid: 8000VA | max power output to grid: 8800VA
- Battery: lead-acid / Li-ion | nominal 48V | range 40–60V | max charge/discharge 160A (8000/8800W)
- Max PV input power: 16000W | max PV input voltage: 600V | MPPT working range 50–550V
- 2 MPPTs (1+2 strings) | max input current 20A/40A
- Nominal AC current to grid: 36.4/34.8/33.4A | max AC current to grid: 40A
- Back-up: max continuous 8800VA | peak 16000VA @10s | switch time <4ms
- Max efficiency 97.6% | Euro efficiency 96.5%
- Intelligent air cooling | noise 40dB | size 501×586×193 mm | weight 17 kg
- Cloud: Wi-Fi, LAN | CAN BMS | RS485 | NRS 097 compliant
- Operating temperature: -30 to 60°C | altitude ≤3000m
- Warranty: refer to Dyness LS series warranty terms
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
