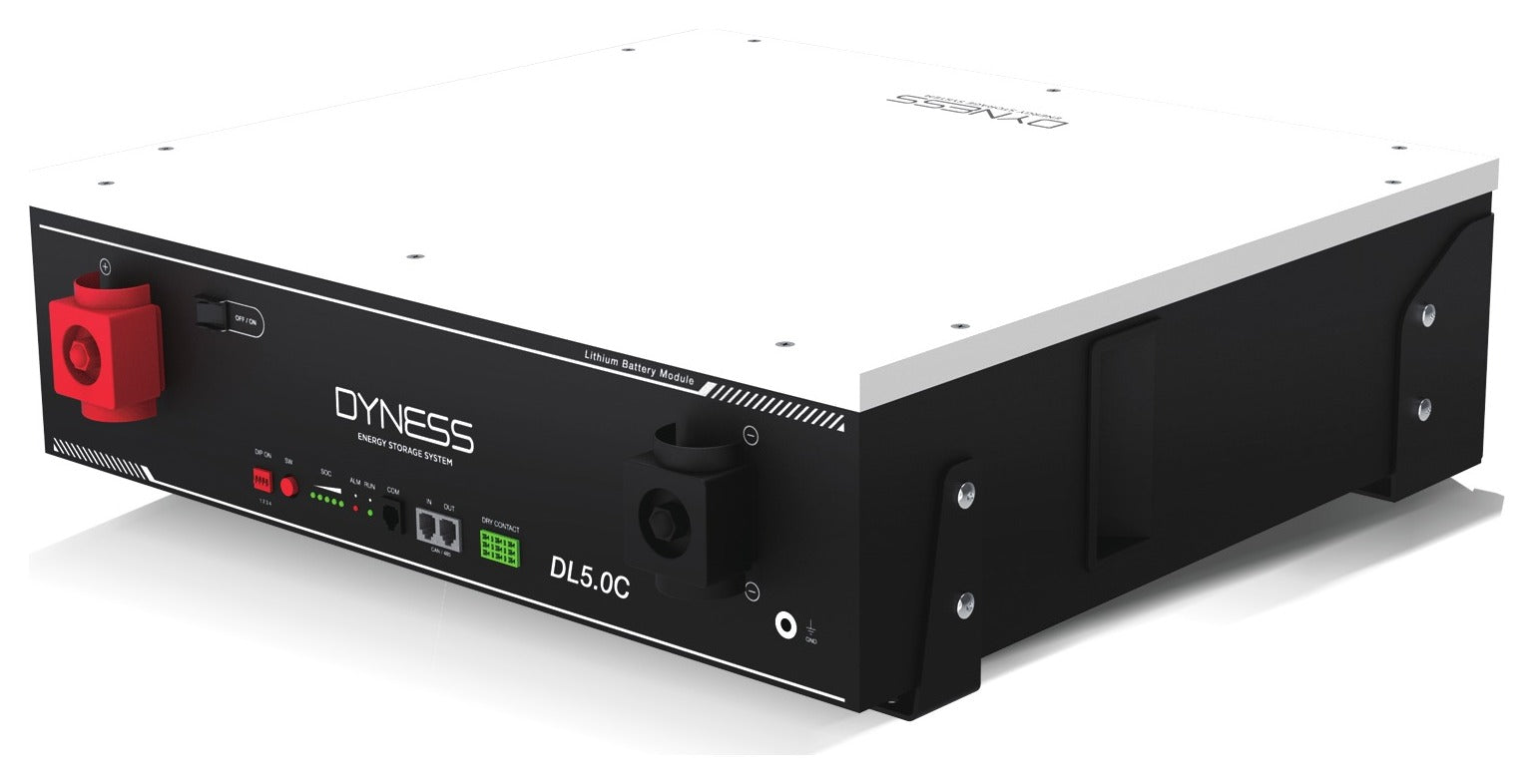

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
| Battery Type |
LiFePO4 |
| Nominal Battery Energy |
5.12 kWh |
| Nominal Capacity |
100Ah |
| Nominal Voltage |
51.2V |
| Operating Voltage |
44.8 ~ 57.6V |
| Recomended Charge & Discharge C Rate |
0.5C |
| Maximum Discharge C rate |
1C |
| Recommended Charge/Discharge Current |
50A |
| Max. Power Charge/Discharge Current |
Charge 75A/Discharge 100A |
| Peak Power Charge/Discharge Current |
110A (15s) |
| Depth of Discharge (DOD) |
90% |
| Net Weight |
54 kg |
| Dimension[W*D*H] |
558*545*150 mm |
| Charging Temp. Range |
0~55°C/-20~55°C (with heating function) |
| Discharging Temp. Range |
-20~55℃ |
| Communication |
CAN/RS485/RS232 |
| Cycle Life[1]
|
≥6000 Cycles |
| Protection Level |
lP20 |
| Expansion |
up to 50 units in parallel |
| Pros |
Can be used in both off-grid and hybrid setups, compact design |
| Certification & Safety Standard |
UN38.3/CE-EMC/IEC62619/CEI-021 |
[1]Test conditions: 0.2C Charging/Discharging, @25℃, 90% DOD
