Description
Available on backorder – please contact us for lead time.

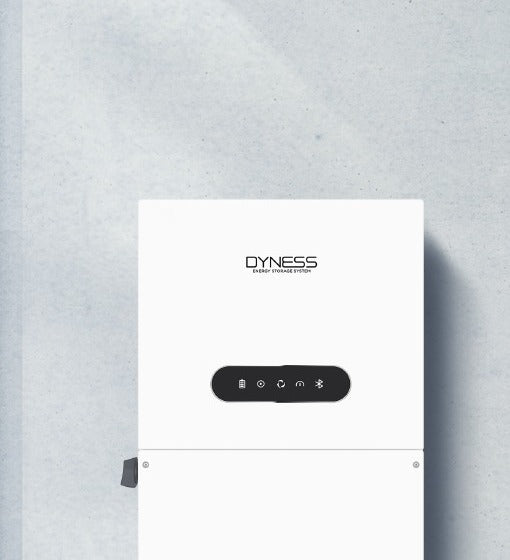

The Dyness Dyne-8.0L-1P-A is a 8kW single-phase low-voltage hybrid inverter from the DYNE L-1P-A series, designed for residential solar and Dyness battery systems in South Africa.
- IP66 protection, environmental category indoor and outdoor | LED+APP display
- Rated output power: 8kW | Max apparent output power: 8.8 kVA
- Battery type: Li-ion | voltage range 40–60V | max charge/discharge current: 190A
- Recommended max PV power: 12.8 kW | max input voltage 600V | MPPT range 90–520V
- MPPT: dual trackers | start-up 90V | rated PV voltage 330V
- Rated grid voltage 220/230V | 50/60Hz | rated grid output current: 36.4/34.8A
- Back-up switch time <4ms | peak backup 2× rated for 10s
- Max efficiency >96.9% | EU efficiency >96.5%
- Cooling: Intelligent redundant fan-cooling | size 406×560×215 mm | weight 26.0 kg
- Communication: RS485, CAN | optional Wi-Fi, LAN | NRS 097-2-1 compliant
- Operating temperature: -40 to +60°C | max altitude 4000m
- Warranty: 10 years* (may be limited to 5 years if not connected with Dyness batteries; refer to Dyness warranty terms)
Compatible with Dyness low-voltage lithium-ion batteries such as DL5.0X / DL5.0C / Powerbox Pro.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
