Description
The Dyness HV51100 is a 5.12kWh high-voltage LiFePO4 battery module for Dyness HV4 rack systems. Modules connect in series (with a Dyness BDU100 battery control unit) to build clusters of up to 76.8kWh, and clusters can be paralleled for commercial and industrial storage.
- 5.12kWh (100Ah at 51.2V) LiFePO4 rack module
- Up to 15 modules in series per cluster (179 – 876V, up to 76.8kWh)
- Up to 12 clusters in parallel for larger C&I systems

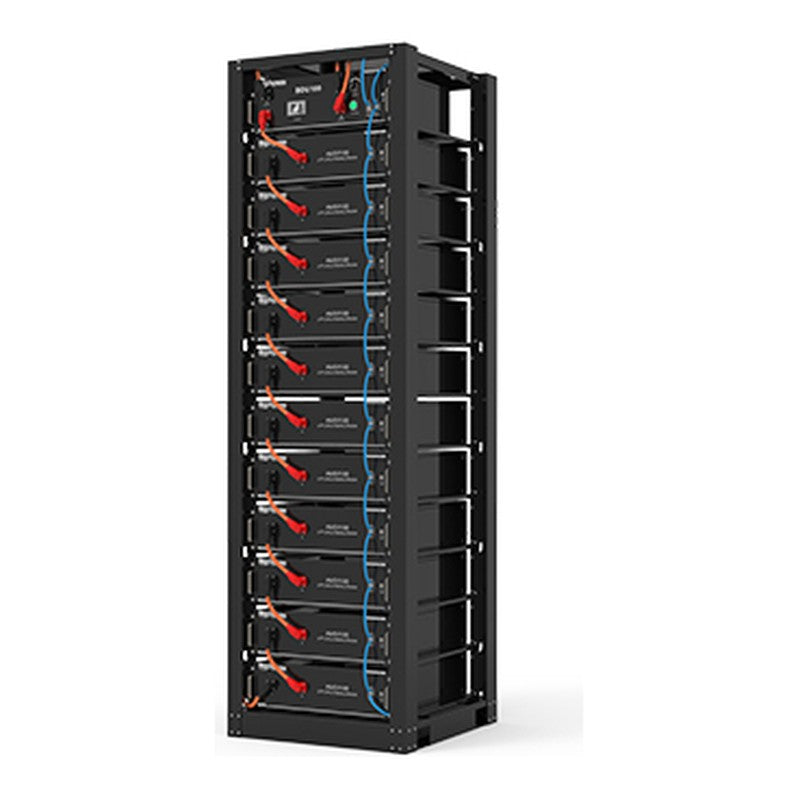

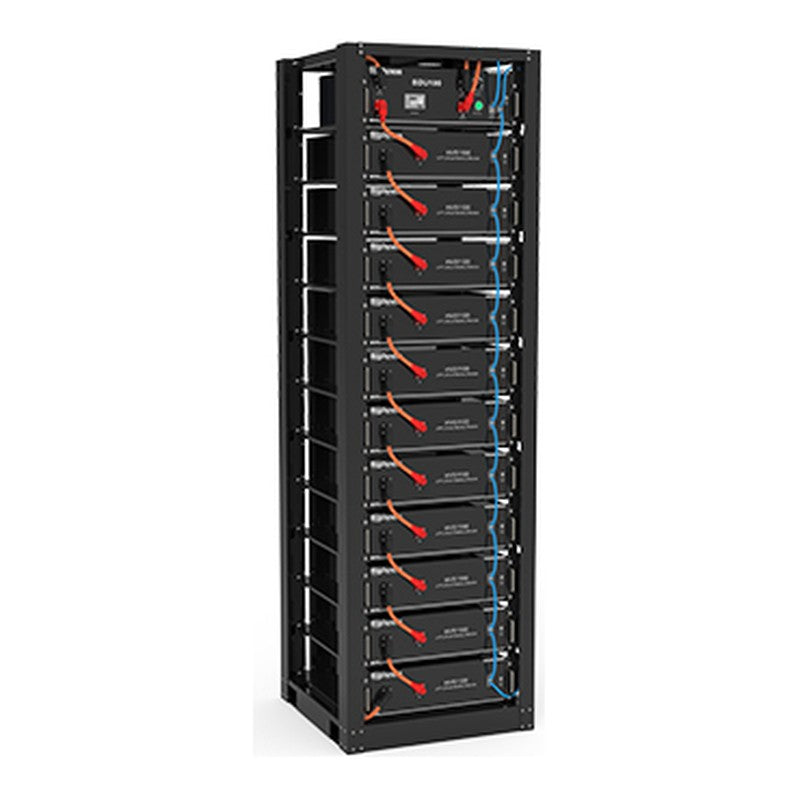

- Designed for Dyness PowerRack HV4 cabinets (7 or 11 module versions)
- Requires the Dyness BDU100 battery control unit (sold separately)
- Compatible with high-voltage hybrid inverters from GoodWe, Solis, SAJ, Sinexcel, Growatt, ATESS, Sermatec and more
- 10+ year design life and >6000 cycles
Specifications (HV51100)
| Battery type |
LiFePO4 |
| Nominal energy |
5.12kWh |
| Nominal capacity |
100Ah |
| Nominal voltage |
51.2V |
| System voltage range |
179 – 876V (series) |
| Max. modules in series |
15 (76.8kWh per cluster) |
| Max. clusters in parallel |
12 |
| Communication |
CAN |
| Operating temperature |
Charge 0 – 55°C / Discharge -10 – 55°C |
| Cycle life |
>6000 |
| Design life |
10+ years |
| Ingress protection |
IP20 (indoor) |
| Dimensions |
481 × 535 × 140mm |
| Weight |
43.5kg |
| Certifications |
UN38.3, IEC 62619 |
Official Datasheet: Dyness HV51100 Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
