Description

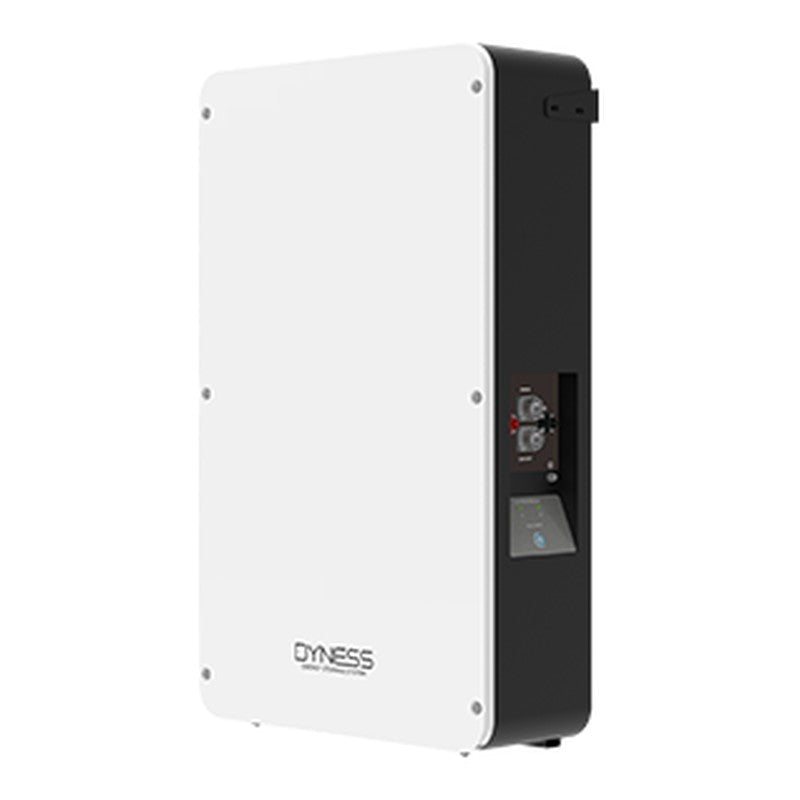

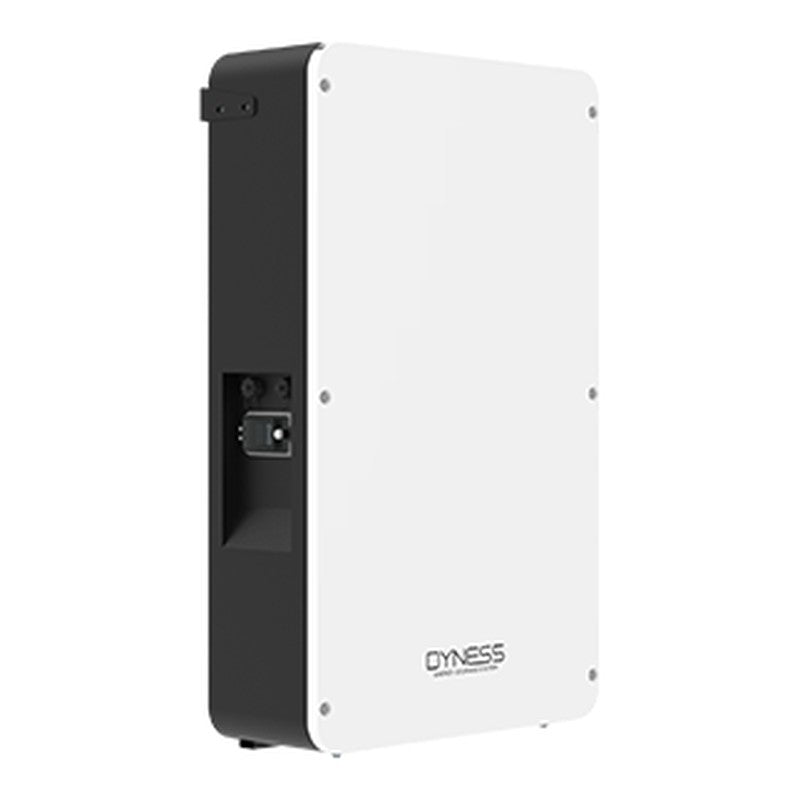

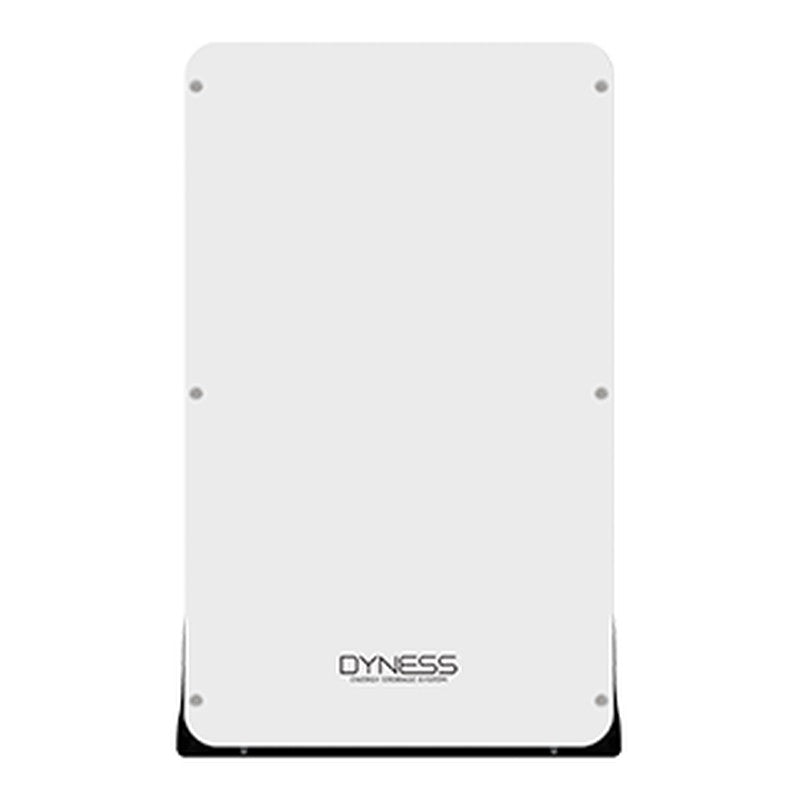

The Dyness Powerbox Pro is a 10.24kWh, 51.2V low-voltage LiFePO4 battery in an IP65 enclosure, so it can be installed indoors or outdoors. It pairs with most leading 48V hybrid inverters and scales up to 50 units in parallel for homes and small businesses.
- 10.24kWh (200Ah at 51.2V) LiFePO4
- 5.12kW nominal / 10.24kW peak output (100A, 0.5C)
- IP65 enclosure for indoor or outdoor installation
- 90% depth of discharge and ≥6000 cycles
- Up to 50 units in parallel
- CAN / RS485 communication with optional Wi-Fi monitoring
- Compatible with SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, Soplanet, Luxpower and Deye inverters
Specifications (Powerbox Pro)
| Battery type |
LiFePO4 |
| Nominal energy |
10.24kWh |
| Nominal capacity |
200Ah |
| Nominal voltage |
51.2V |
| Operating voltage |
44.8 – 57.6V |
| Nominal / peak power |
5.12kW / 10.24kW |
| Charge/discharge current |
100A (0.5C) |
| Depth of discharge |
90% |
| Cycle life |
≥6000 |
| Parallel |
Up to 50 units |
| Communication |
CAN / RS485, Wi-Fi optional |
| Operating temperature |
Charge 0 – 55°C / Discharge -20 – 55°C |
| Ingress protection |
IP65 |
| Dimensions (W × D × H) |
555 × 210 × 928mm |
| Weight |
99.3kg |
| Certifications |
UN38.3, CE-EMC, IEC 62619, IEC 62040, UKCA, CEC |
Official Datasheet: Dyness Powerbox Pro 10.24kWh Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
