Description

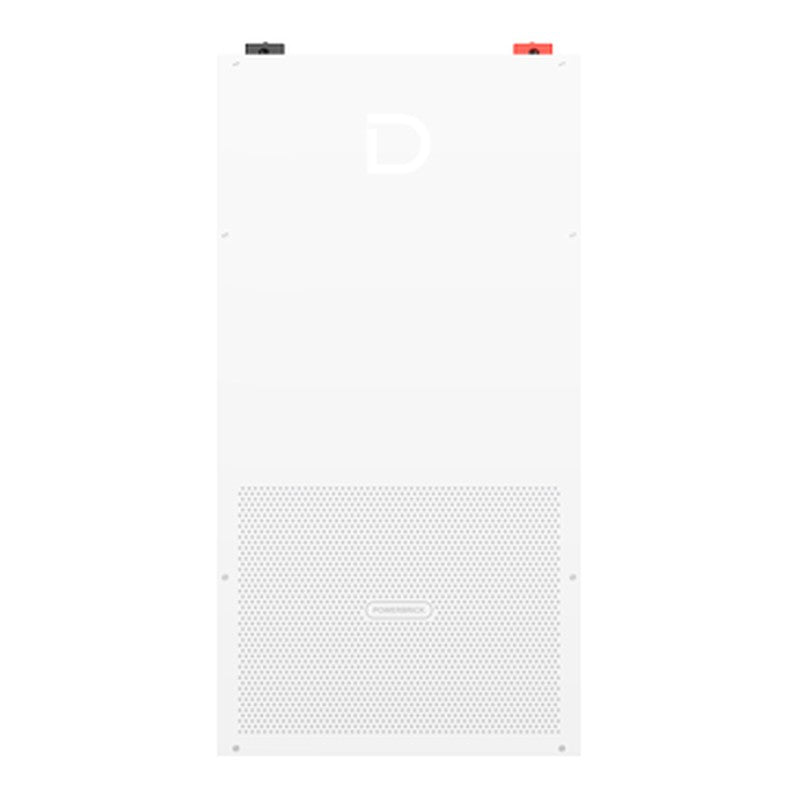

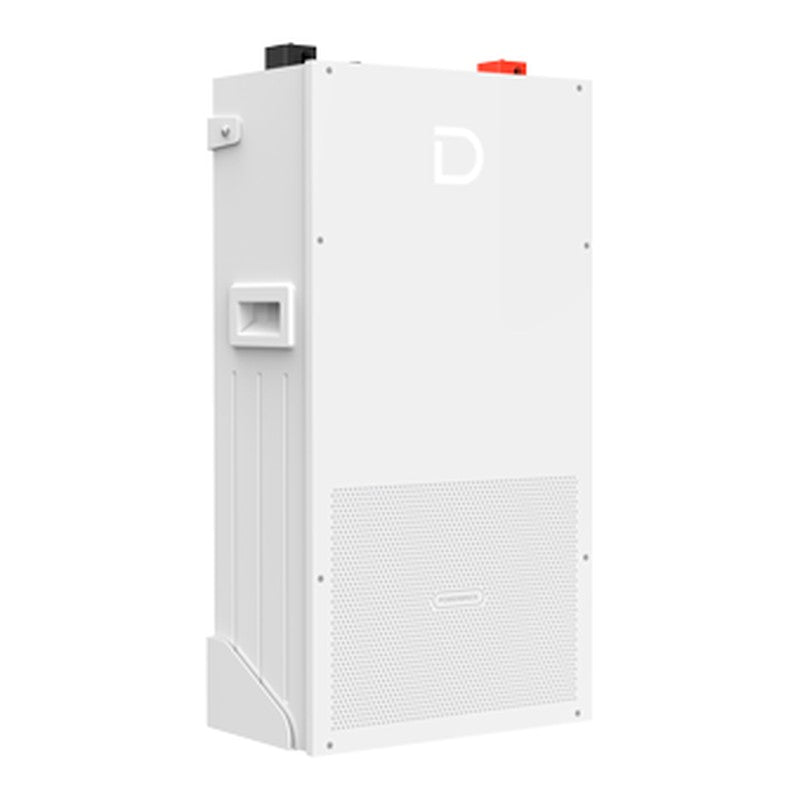

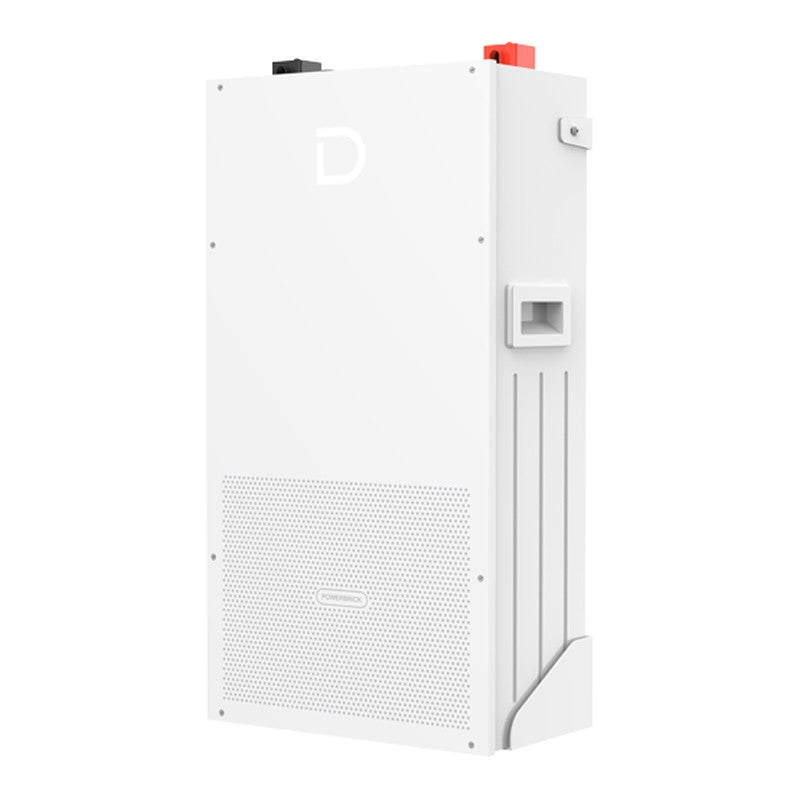

The Dyness PowerBrick is a 14.336kWh, 51.2V floor-standing LiFePO4 battery for homes and small commercial sites. High-capacity 280Ah cells, a built-in aerosol fire-suppression unit and integrated Wi-Fi monitoring make it a high-capacity, low-maintenance storage block.
- 14.336kWh (280Ah at 51.2V) LiFePO4
- 140A rated (0.5C) and 200A max charge/discharge, 300A peak (2 min)
- 95% depth of discharge and ≥8000 cycles
- Built-in aerosol fire extinguisher
- Built-in Wi-Fi with app monitoring and OTA upgrades
- Up to 50 units in parallel
- Optional wheels and top cover; optional heating for low-temperature charging
Specifications (PowerBrick)
| Battery type |
LiFePO4 |
| Nominal energy |
14.336kWh |
| Nominal capacity |
280Ah |
| Nominal voltage |
51.2V |
| Rated charge/discharge current |
140A (0.5C) |
| Max. charge/discharge current |
200A |
| Peak current |
300A (2 min) |
| Depth of discharge |
95% |
| Cycle life |
≥8000 |
| Parallel |
Up to 50 units |
| Communication |
CAN / RS485, built-in Wi-Fi |
| Operating temperature |
Charge 0 – 55°C (-20°C with optional heating) / Discharge -20 – 55°C |
| Ingress protection |
IP20 |
| Dimensions |
435 × 233 × 857mm |
| Weight |
114kg |
| Certifications |
UN38.3, CE-EMC, IEC 62619 |
Official Datasheet: Dyness PowerBrick 14.336kWh Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
