Description

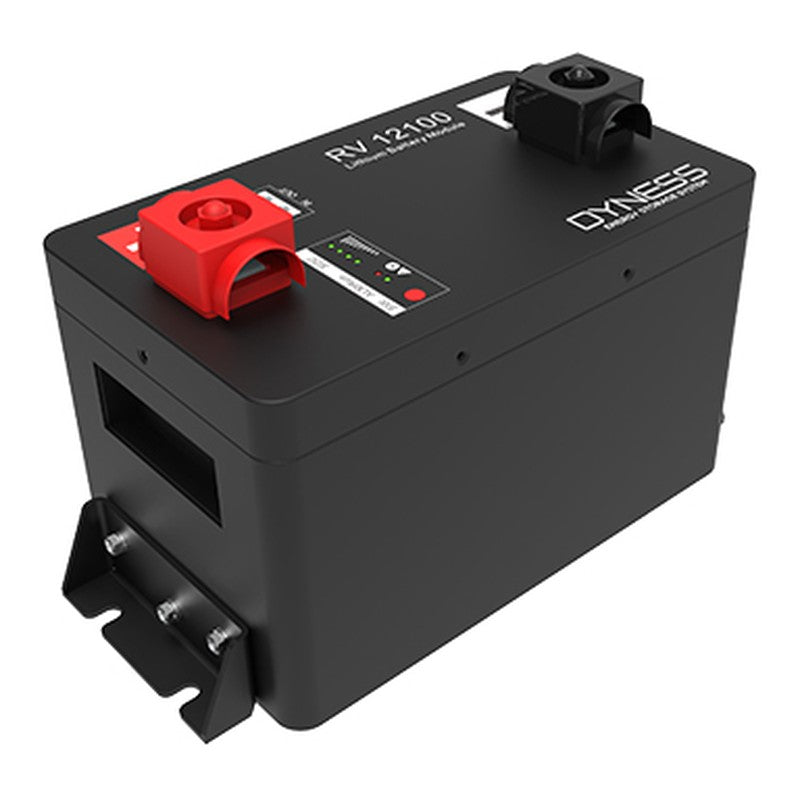

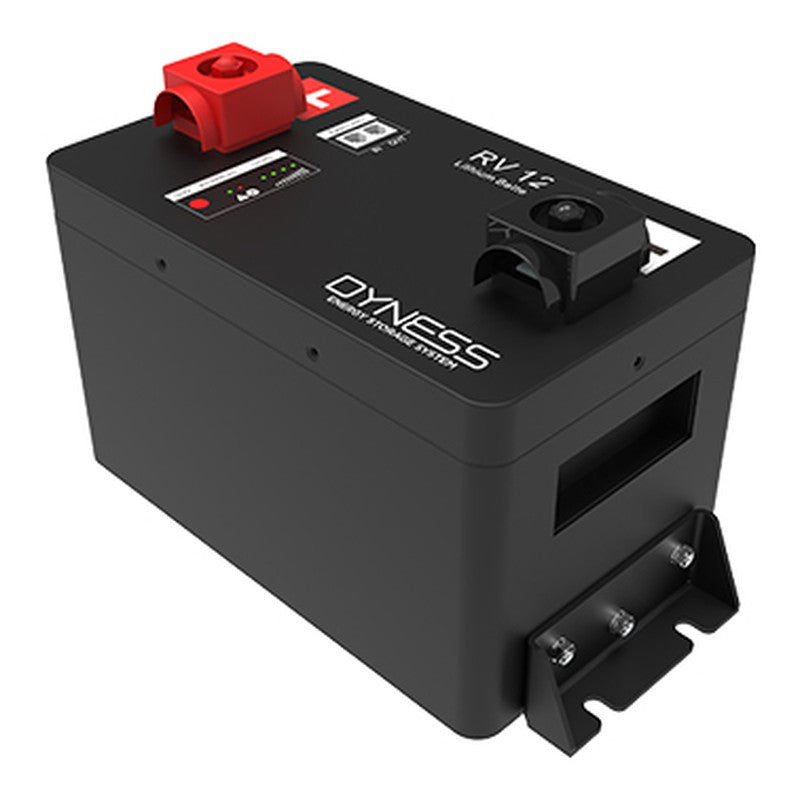

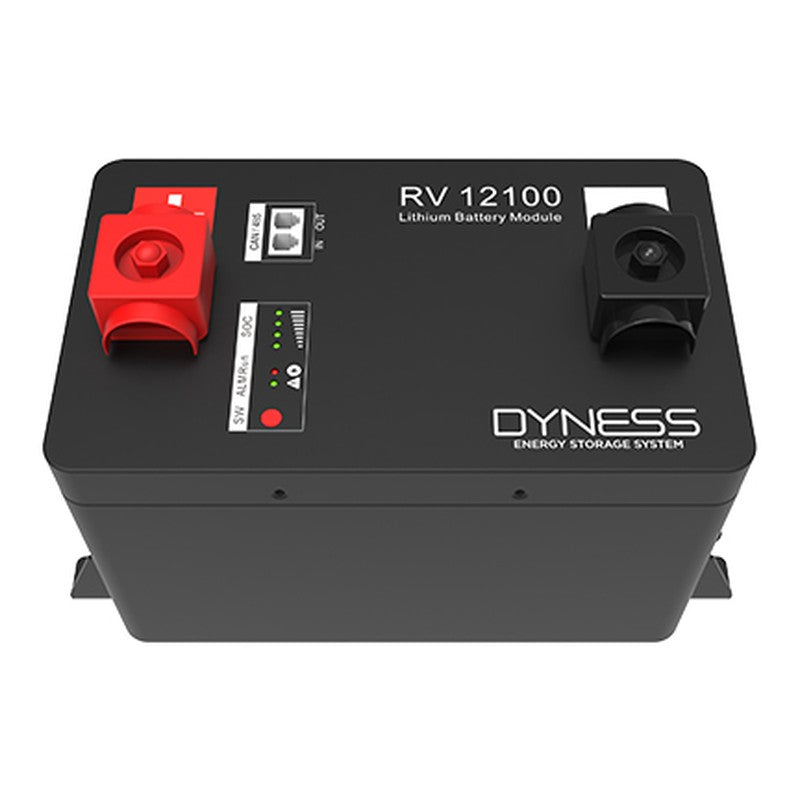

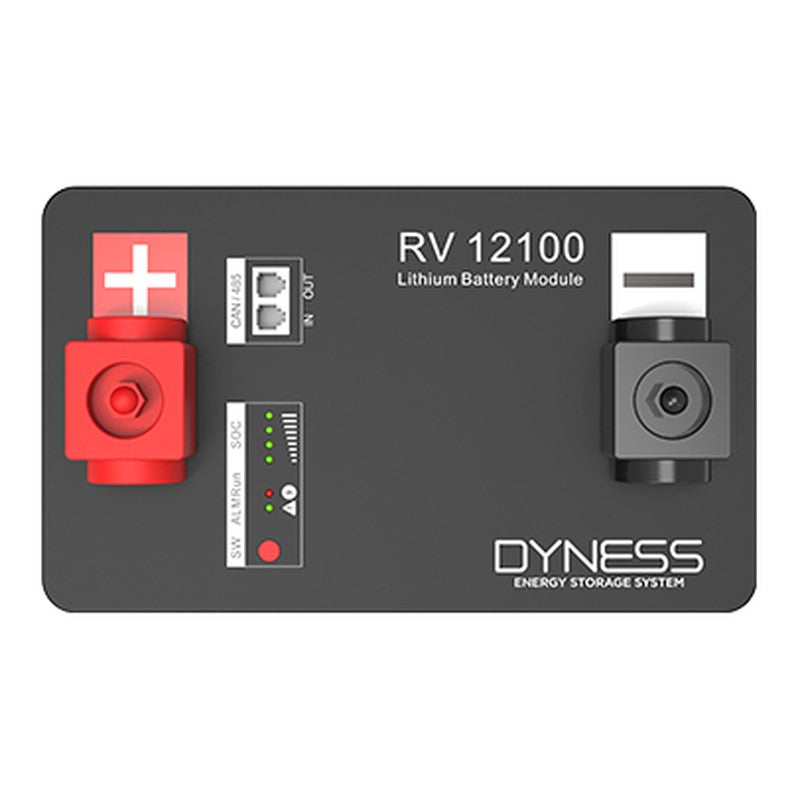

The Dyness RV12100 is a compact 12.8V, 100Ah (1.28kWh) lithium iron phosphate battery designed for RVs, caravans, boats and small 12V off-grid systems. It is a lightweight, long-life drop-in replacement for lead-acid batteries of a similar footprint.
- 1.28kWh (100Ah at 12.8V) LiFePO4
- 50A recommended / 75A max continuous, 100A peak (15s)
- 95% depth of discharge
- Compatible with Victron, Steca and MUST inverters
- Up to 16 batteries in parallel
- CAN and RS485 communication
- Only 14kg – far lighter than equivalent lead-acid
Specifications (RV12100)
| Battery type |
LiFePO4 |
| Nominal energy |
1.28kWh |
| Nominal capacity |
100Ah |
| Nominal voltage |
12.8V |
| Operating voltage |
11.2 – 14.6V |
| Charge/discharge current |
50A recommended / 75A max (0.5C) |
| Peak current |
100A (15s) |
| Depth of discharge |
95% |
| Parallel |
Up to 16 units |
| Communication |
CAN / RS485 |
| Operating temperature |
Charge 0 – 55°C / Discharge -20 – 55°C |
| Ingress protection |
IP20 |
| Dimensions |
306 × 183 × 185mm |
| Weight |
14kg |
| Certifications |
UN38.3 |
Official Datasheet: Dyness RV12100 Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
