Description

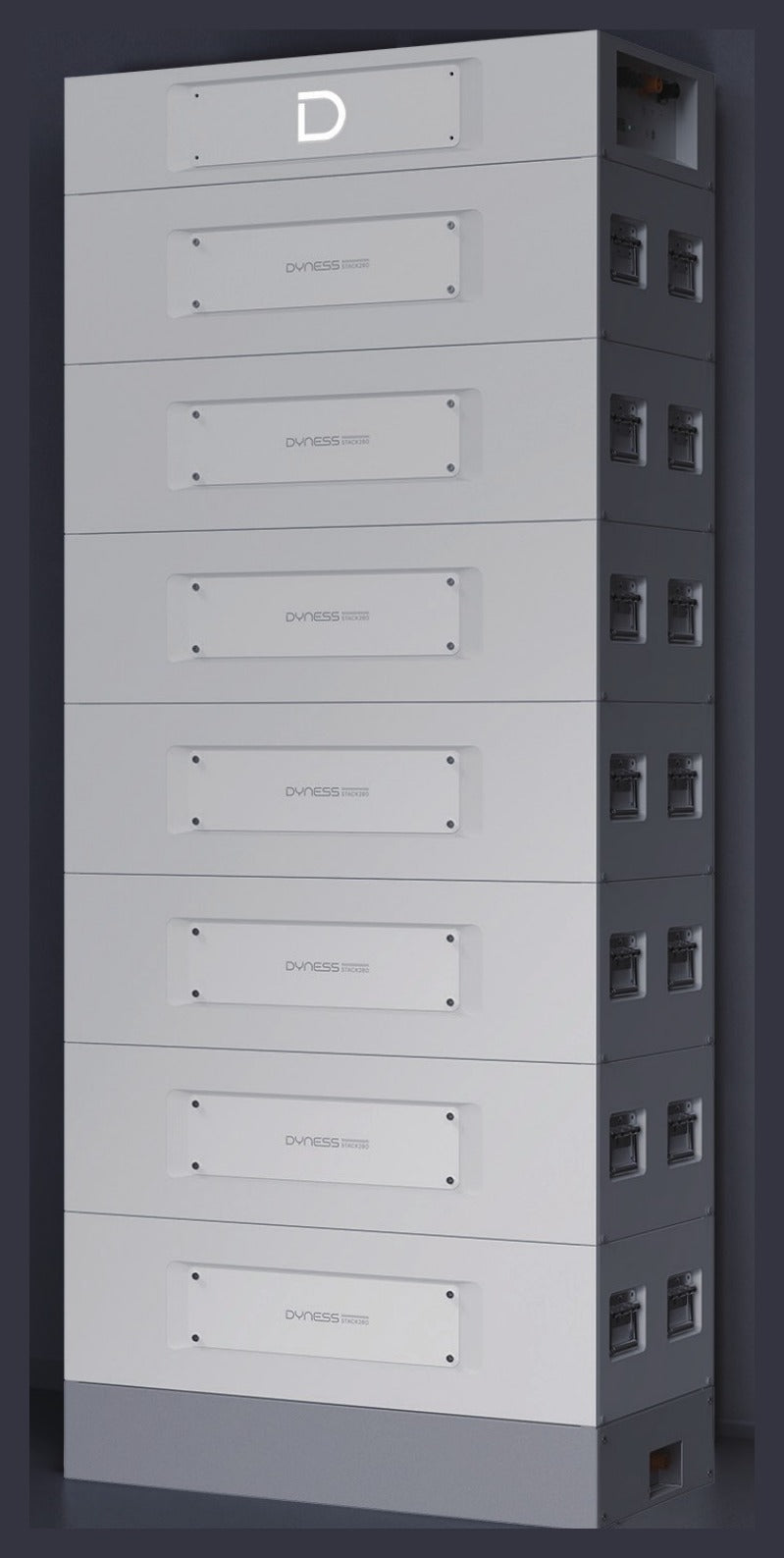

The Dyness STACK280 is a 14.34kWh, 280Ah cable-free stackable high-voltage battery module for small commercial and industrial storage, used with the STACK280 BDU.
- Module: 51.2V, 280Ah, 14.336kWh (13.619kWh usable) LiFePO4
- Cluster: 3-15 modules, 134.4-864V | up to 12 clusters in parallel
- Recommended 0.5C (140A), max 0.7C (200A) | peak 280A for 2 min | DoD 95%
- >8000 cycles | built-in aerosol fire extinguisher | forced air cooling | WiFi + app
- CAN / RS485 | compatible with Solis, Deye, Growatt, Megarevo, Atess and more
- Requires the STACK280 BDU & base (sold separately)
- IP20, indoor installation only | module 770 x 425 x 230mm | 110kg
Official Datasheet: Dyness STACK280 Datasheet (file version 20251030)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
