Description

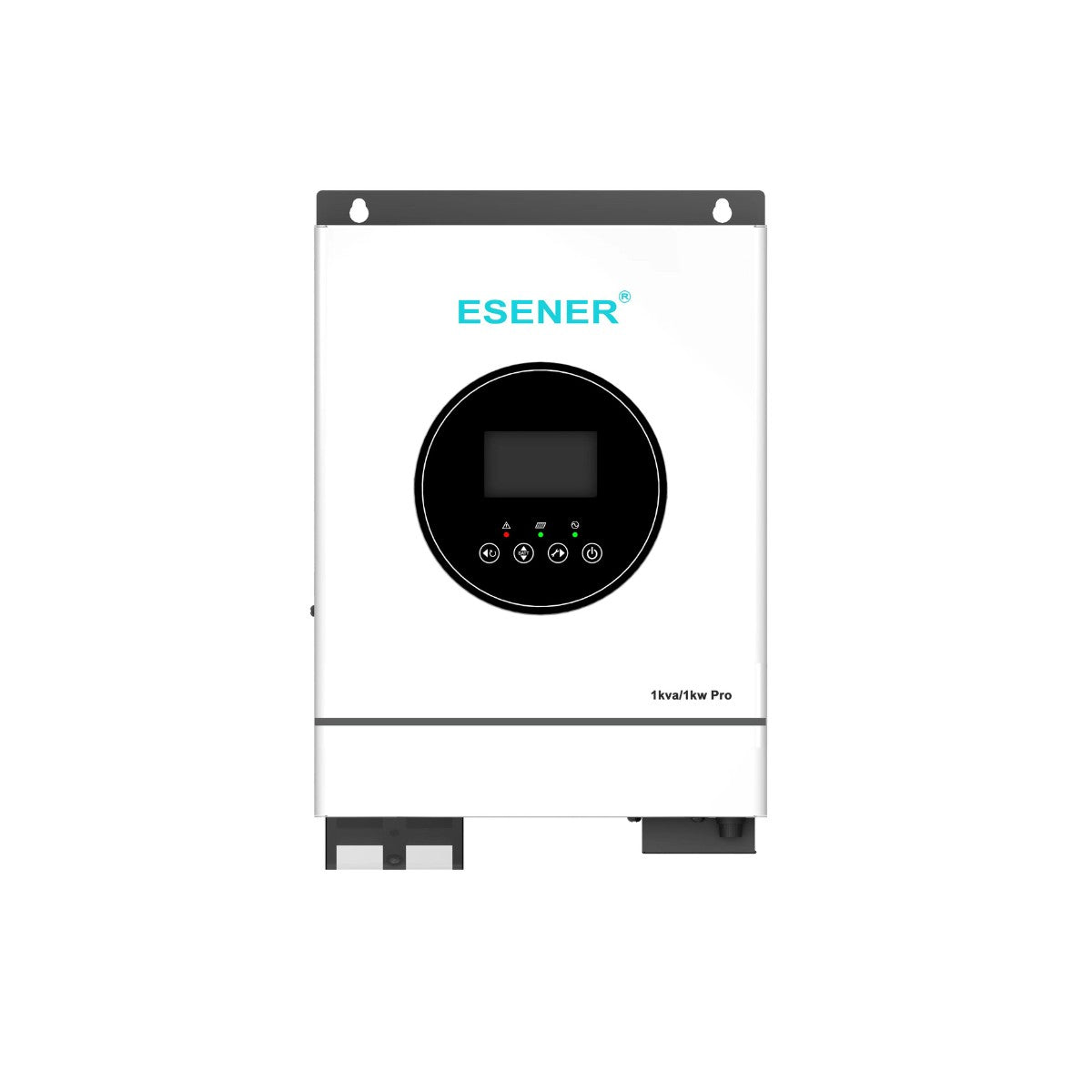

The ESENER 1 kW Pro is the official ES-PRO Series 1 kW / 12 V high-frequency inverter/charger, combining a pure-sine inverter, MPPT solar charger and AC charger. Figures below are from the official ESENER ES-1KVA/1KW PRO 230 V datasheet.
- Rated output 1 000 VA / 1 000 W; surge 2 000 VA; 230 V AC pure sine wave
- 12 V DC battery; floating charge 13.8 V; overcharge protection 15 V
- Max. PV 600 W, VOC 105 V, MPPT 15–75 V; max. solar charge 45 A; max. AC charge 20 A; max. combined charge 65 A
- Peak inverter efficiency 90–93%; machine size 224 × 337 × 98 mm; net 3.6 kg / gross 4.3 kg
- 1-year official warranty
The previous store shipping weight of 1 kg (the same 1 kg also used on the 3.6 kW Pro) was a copied placeholder and has been corrected to the official net 3.6 kg.
Technical specifications
| Model |
ES-1KVA/1KW PRO |
| Type |
High-frequency off-grid inverter/charger with MPPT |
| Battery voltage |
12 V DC |
| Rated power |
1 000 VA / 1 000 W |
| Surge power |
2 000 VA |
| Waveform |
Pure sine wave |
| AC voltage (battery mode) |
230 V AC |
| Peak inverter efficiency |
90–93% |
| Transfer time |
10 ms (UPS / VDE4105) / 20 ms (APL) |
| AC input voltage |
230 V AC |
| AC input voltage range |
170–280 V (UPS) / 90–280 V (APL) / 184–253 V (VDE) |
| Frequency |
50 / 60 Hz auto-sensing |
| Floating charge / overcharge protection |
13.8 V DC / 15 V DC |
| Max. PV array VOC |
105 V DC |
| MPPT voltage range |
15–75 V DC |
| Max. PV array power |
600 W |
| Max. solar / AC / combined charge current |
45 A / 20 A / 65 A |
| Machine dimensions (W × H × D) |
224 × 337 × 98 mm |
| Package dimensions (W × H × D) |
300 × 410 × 178 mm |
| Net / gross weight |
3.6 kg / 4.3 kg |
| Operating temperature |
0 to 50 °C |
| Communication |
USB; Wi-Fi optional |
| Warranty |
1 year (official datasheet) |
Official datasheet: Official ESENER ES-1KVA/1KW PRO datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
