Description

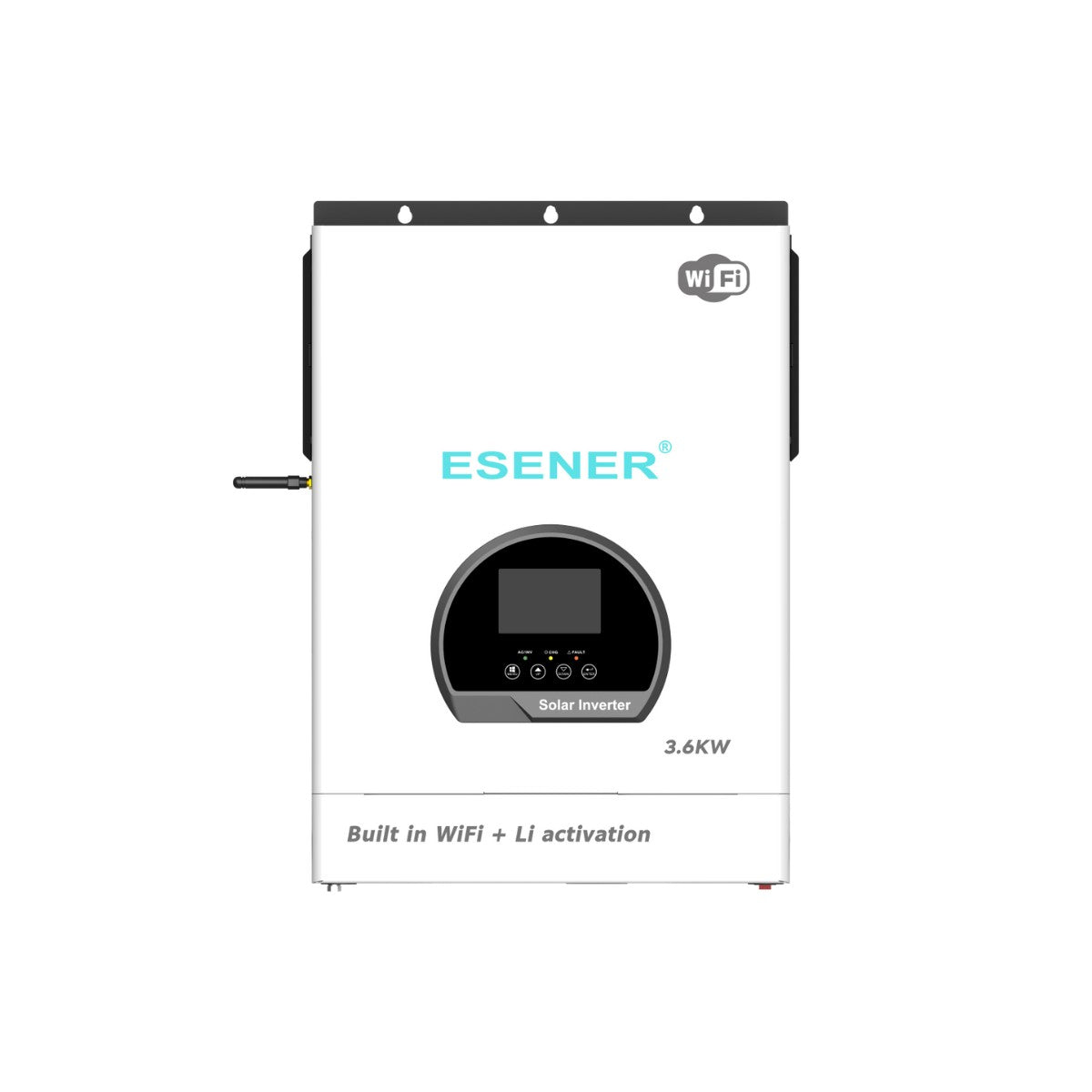

The ESENER 3.6 kW Pro is the official ES-PRO Series 3.6 kW / 24 V high-frequency inverter/charger with dual AC output, built-in Wi-Fi and Bluetooth. Figures below are from the official ESENER 3.6 kW Pro 230 V datasheet. The unit can run without a battery.
- Rated power (main + second load) 3 600 VA / 3 600 W; battery-mode 3 000 VA / 3 000 W; surge 6 000 W
- 24 V DC battery; floating charge 27.4 V; overcharge protection 30 V
- Max. PV 4 000 W, VOC 400 V, MPPT 30–320 V, 18 A; max. solar charge 100 A; max. AC charge 60 A
- Peak inverter efficiency 90–93%; machine size 318 × 454 × 122.5 mm; net 7.8 kg / gross 9.3 kg
- 1-year official warranty; anti-dust kit included on the official sheet
The previous store shipping weight of 1 kg (the same 1 kg also used on the 1 kW Pro) was a copied placeholder and has been corrected to the official net 7.8 kg.
Technical specifications
| Model |
ES-3.6kW/3.6kVA Pro |
| Type |
High-frequency off-grid inverter/charger with dual output, Wi-Fi and Bluetooth |
| Battery voltage |
24 V DC |
| Rated power (main + second load) |
3 600 VA / 3 600 W |
| Battery-mode power (main + second load) |
3 000 VA / 3 000 W |
| Surge power |
6 000 W |
| Waveform |
Pure sine wave |
| AC voltage (battery mode) |
230 V AC ± 5% (setting) |
| Peak inverter efficiency |
90–93% |
| Transfer time |
10 ms (UPS / VDE4105) / 20 ms (APL) |
| AC input voltage |
230 V AC ± 5% |
| AC input voltage range |
170–280 V (UPS) / 90–280 V (APL) / 184–253 V (VDE4105) |
| Frequency |
50 / 60 Hz auto-sensing |
| Floating charge / overcharge protection |
27.4 V DC / 30 V DC |
| Max. PV array VOC |
400 V DC |
| Max. PV input current |
18 A |
| Max. PV array power |
4 000 W |
| MPPT voltage range |
30–320 V DC |
| Max. solar / AC / combined charge current |
100 A / 60 A / 100 A |
| Machine dimensions (W × H × D) |
318 × 454 × 122.5 mm |
| Package dimensions (W × H × D) |
544.5 × 410 × 200 mm |
| Net / gross weight |
7.8 kg / 9.3 kg |
| Operating temperature |
−10 to 50 °C |
| Communication |
USB, Wi-Fi, Bluetooth, RS-485, CAN |
| Anti-dust kit |
Yes (official datasheet) |
| Warranty |
1 year (official datasheet) |
Official datasheet: Official ESENER 3.6 kW Pro datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
