Description

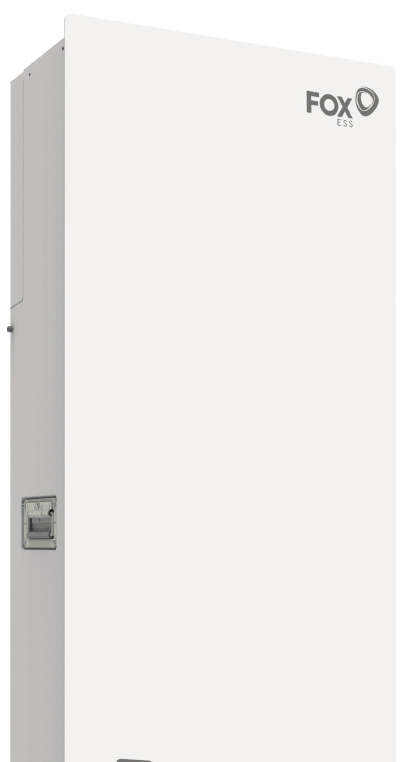

The Fox ESS AIO-H1-6.0 is a 6kW single-phase high-voltage hybrid all-in-one inverter cabinet from the Fox ESS AIO series, designed for residential solar and battery systems in South Africa. Battery modules are not included and are sold separately.
- LCD display with app and web monitoring, IP65 protection, suitable for indoor and outdoor installation
- Rated output power: 6000W | Max output apparent power: 6600VA
- EPS (backup) output: 6000VA | Peak 7200VA for 60s | Switch time <20ms
- Battery: LFP lithium | Battery voltage range: 85-234V | CAN communication with battery
- Max charge/discharge current: 40A
- Max PV input power: 7800W
- Max PV input voltage: 600V | MPPT range: 80-550V | Start-up voltage: 75V
- 2 independent MPPTs, 1 string each | Max input current 13.5A + 13.5A
- Max AC input power: 12000VA
- Rated grid voltage: 220/230/240V, 50/60Hz | PF adjustable 0.8 leading to 0.8 lagging
- Max efficiency: 97.8% | Euro efficiency: 97.0% | PV-to-battery charge efficiency 98.5%
- Insulation, residual current, anti-islanding, short-circuit and over-voltage protection | DC switch | SPD DC Type II / AC Type III
- Natural cooling | Noise 35dB | Transformerless
- Floor-mounted | Dimensions (W x H x D): 624 x 1662 x 375mm | Weight: 78kg
- Operating temperature -25°C to 60°C | Max altitude 2000m
- Monitoring: WiFi, LAN, 4G/GPRS (optional) | 2 x RS485, DRM, USB
- NRS 097-2-1 | 5-year manufacturer warranty
Official Datasheet: Fox ESS AIO-H1 Datasheet
Official Product Page: Fox ESS Hybrid Inverters
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
